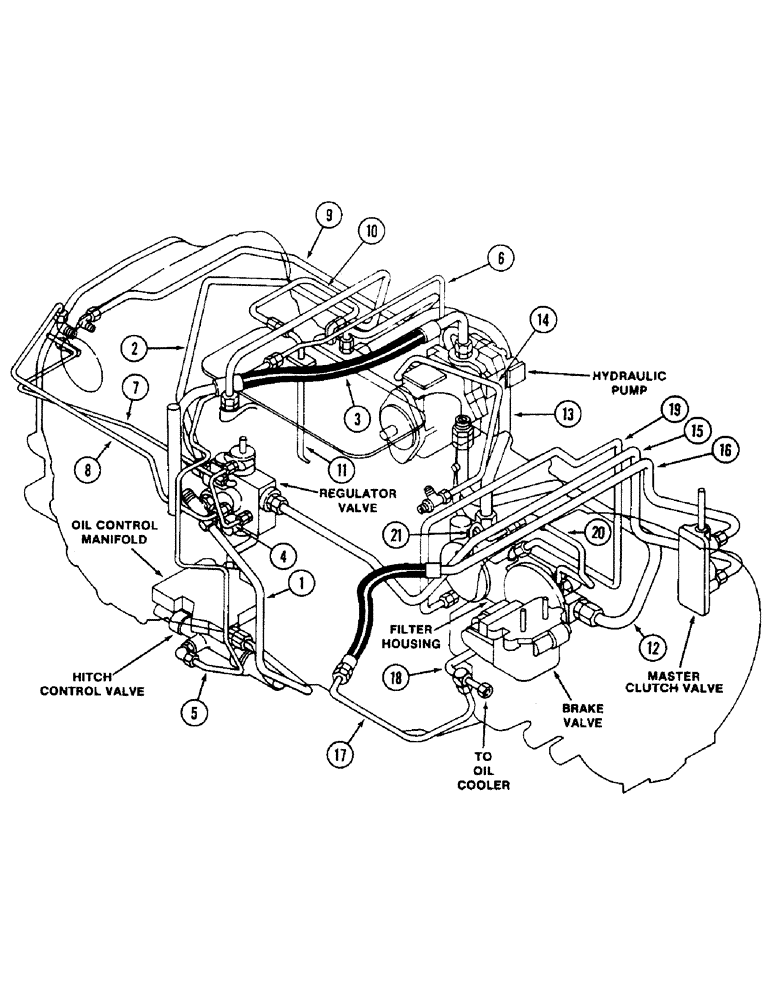

Запчасти Case IH 2090 (1-10) - PICTORIAL INDEX, MAIN HYDRAULICS, MECHANICAL SHIFT (00) - PICTORIAL INDEX

1

A162500

TUBE

Regulator Valve to Manifold Tube, Figure 8-474

1шт.

2

REF

INSTRUCTION

Manifold to Lift cylinder Tube, Figure 8-474

1шт.

3

A160652

TUBE

Pump to Regulator Valve Hose, Figure 8-352

1шт.

4

NLS

NO LONGER SERVICED

PTO Brake Drain Tube, Figure 8-352

1шт.

5

Right Hitch Valve Pilot Tube, Figure 8-364

1шт.

6

Left Hitch Valve Pilot Tube, Figure 8-364

1шт.

7

REF

INSTRUCTION

Regulator Valve to PTO Brake Tube, Figure 8-352

1шт.

8

REF

INSTRUCTION

Regulator Valve to PTO Clutch Tube, Figure 8-352

1шт.

9

A145892

TUBE

PTO from Pump Lubrication Tube, Figure 8-352

1шт.

10

A165325

PIPE

Spiral Bevel Supply Tube, Figure 6-238

1шт.

11

A165324

PIPE

Spiral Bevel Lubrication Tube, Figure 6-238

1шт.

12

A160222

TUBE

Filter to Pump Suction Tube, Figure 8-364

1шт.

13

A160224

TUBE

Transmission Charge Pump Tube, Figure 8-370

1шт.

14

Hydraulic Pump Drain Tube, Figure 8-364

1шт.

15

NSS

NOT SOLD SEPARAT

Regulator Valve to Clutch Inlet Tube, Figure 8-360

1шт.

16

A145682

HOSE

Clutch Valve to Brake Valve Hose, Figure 8-360

1шт.

17

A147257

TUBE

Clutch Valve to Brake Valve Tube, Figure 8-360

1шт.

18

Brake Valve Manifold Tube, Page 8-361

1шт.

19

REF

INSTRUCTION

Reverse Idler Gear Lubrication Tube, Figure 8-370

1шт.

20

Transmission Countershaft Lubrication Tube, Figure 8-370

1шт.

21

A154742

TUBE

Transmission Countershaft Internal Lubrication Tube, Figure 6-270

1шт.
