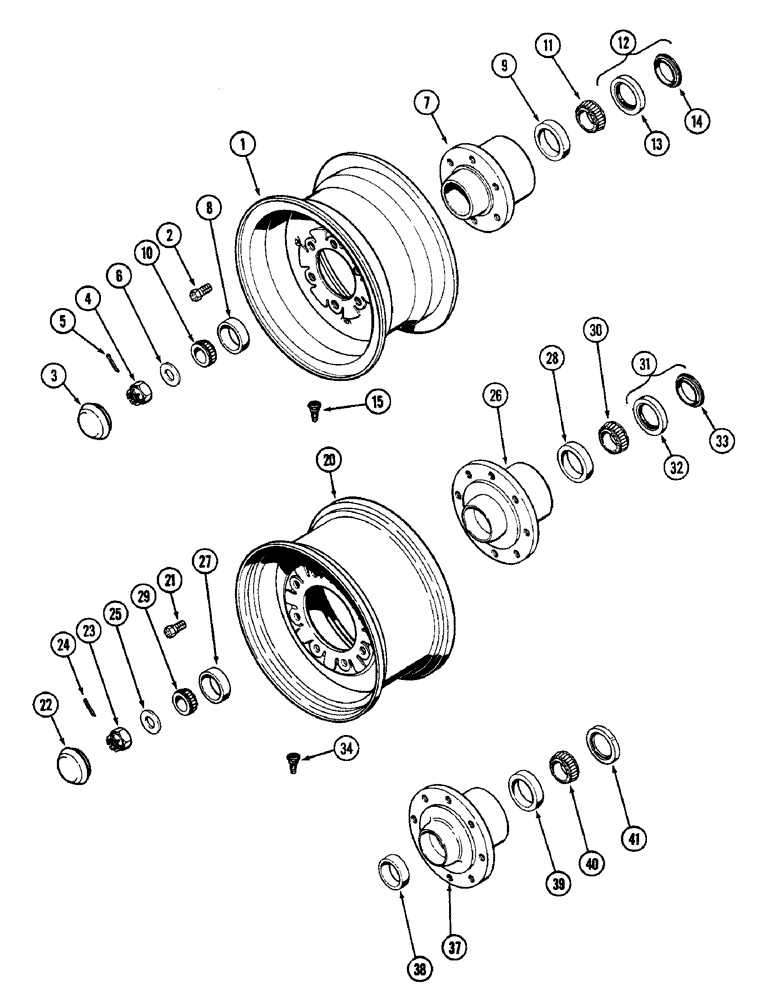

Запчасти Case IH 2090 (5-204) - FRONT WHEEL AND HUB, 6 BOLT HUB (05) - STEERING

1

A60405

WHEEL

- front (For 10.00 x 16 tire)

2шт.

2

B18264

WHEEL BOLT

BOLT - wheel to hub (9/16 -18 x 1-3/32 inch)

12шт.

3

A29425

CAP

- hub

2шт.

4

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - hex slotted, spindle, 1-1/8 inch NF

2шт.

5

132-306

COTTER PIN,3/16" x 1 3/4"

PIN, SPLIT (COTTER), 3/16" x 1 3/4"

2шт.

6

A62918

WASHER,28.96mm ID x 50.8mm OD x 4.78mm Thk

- spindle nut

2шт.

7

A57336

HUB

ASSEMBLY - wheel, Includes: Ref. 8 & 9

2шт.

8

A27631

CUP

- bearing, outer, 2-7/8 inch OD (73 mm)

1шт.

9

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - bearing, inner , 3-17/64 inch OD (83 mm)

1шт.

10

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - bearing, outer, 1-3/8 inch ID (35 mm)

2шт.

11

A29063

ROLLER BEARING,44.463 mm ID x 25.476 mm

CONE - bearing, inner, 1-3/4 inch ID (44 mm)

2шт.

12

A57250

OIL SEAL

OIL SEAL ASSEMBLY, Includes: Ref. 13 & 14

2шт.

13

NSS

NOT SOLD SEPARAT

SEAL - outer

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - inner

1шт.

15

A38261

VALVE

- tubeless tire

2шт.

20

A62132

WHEEL

- front (For 14L x 16.1 tire), 8 bolt hub

2шт.

20

A61570

WHEEL

- front (For 11.00 x 16 tire), 8 bolt hub

2шт.

21

A62567

WHEEL BOLT

BOLT - wheel to bolt (Hex special, 5/8-18 x 2 inch), 8 hub

16шт.

22

A29425

CAP

- hub, 8 bolt

2шт.

23

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - hex slotted, spindle, 1-1/8 inch NF, 8 bolt hub

2шт.

24

132-317

COTTER PIN,3/16" x 2"

PIN, SPLIT (COTTER), , 8 bolt hub 3/16" x 2"

2шт.

25

A62918

WASHER,28.96mm ID x 50.8mm OD x 4.78mm Thk

- spindle nut, 8 bolt hub

2шт.

26

A51157

HUB

- wheel, 8 bolt

2шт.

27

A27631

CUP

- bearing, outer, 2-7/8 inch OD (73 mm), 8 bolt hub

2шт.

28

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - bearing, inner, 3-17/64 inch OD (83 mm), 8 bolt hub

2шт.

29

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - bearing, outer, 1-3/8 inch ID (35 mm), 8 bolt hub

2шт.

30

A29063

ROLLER BEARING,44.463 mm ID x 25.476 mm

CONE - bearing, inner, 1-3/4 inch ID (45 mm), 8 bolt hub

2шт.

31

A57250

OIL SEAL

OIL SEAL ASSEMBLY, 8 bolt hub, Includes: Ref. 32 & 33

2шт.

32

NSS

NOT SOLD SEPARAT

SEAL - outer (Reference no. A57247), 8 bolt hub

2шт.

33

NSS

NOT SOLD SEPARAT

SEAL - inner (Reference no. A57246), 8 bolt hub

1шт.

34

A38261

VALVE

- tubeless tire, 8 bolt hub

2шт.

A66677

HUB

ASSEMBLY - wheel (Used with A161247 spindle) (Order components), 8 bolt, Includes: Ref. 37 - 41

2шт.

37

A66678

HUB

- wheel (Order A66759), 8 bolt

1шт.

38

G15214

BEARING CUP

CUP - bearing, outer, 8 bolt hub

1шт.

39

A61446

BEARING CUP

CUP - bearing, inner, 8 bolt hub

1шт.

40

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

CONE - bearing, inner, 8 bolt hub

1шт.

41

A61448

OIL SEAL,67.26mm ID x 97.16mm OD x 12.7mm Thk

- inner, 8 bolt hub

1шт.

Item will not seal by itself. You need to order part number A61449 to fit with this seal. A61449 fits inside A61448 and seals onto the shaft.

1шт.
