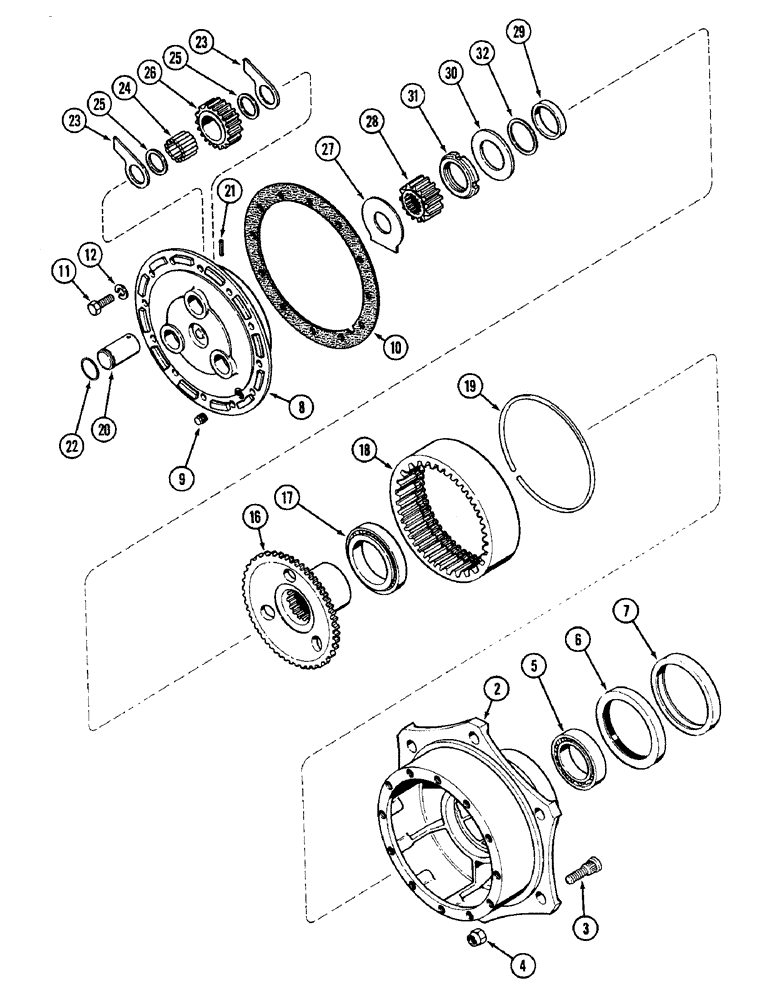

Запчасти Case IH 2090 (5-196) - FRONT AXLE WHEEL HUB, MFD TRACTORS (CONTD) (05) - STEERING

A156672

SHAFT

AXLE ASSEMBLY - MFD front, Includes: Ref. 2 - 32, 1 - 32 on Figure 5-188, 2 - 30 on Figure 5-190, 3 - 33 on Figure 5-192 and 2 - 36 on Figure 5-194

1шт.

2

A48102

HUB

- wheel (Carraro no. 107204)

2шт.

3

A163211

STUD

- wheel to hub (Carraro no. 107717)

12шт.

4

A163212

NUT

- hub stud (Carraro no. 107718)

12шт.

5

A48104

TAPERED BEARING,85mm ID x 130mm OD x 29mm

BEARING - wheel hub, inner (Carraro no. 27262)

2шт.

6

A48103

OIL SEAL

- wheel hub oil (Carraro no. 25345) (Order K965324)

2шт.

7

K965323

GASKET

- wheel hub dust (Carraro no. 102148)

2шт.

8

A48117

COVER

- planetary end (Carraro no. 112377)

2шт.

9

K965263

PLUG

- end cover (Carraro no. 92269)

2шт.

10

A48118

GASKET

- end cover (Carraro no. 107757)

2шт.

11

K260196

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

- cover retaining, hex, full thread, M12 x 35 mm (Carraro no. 20921) (Order K956926)

24шт.

12

K965425

WASHER

- lock, M12 (Carraro no. 22861)

24шт.

16

A48106

HUB

- gear (Carraro no. 107621)

2шт.

17

A48105

TAPERED BEARING,100mm ID x 150mm OD x 32mm W

BEARING - wheel hub, outer (Carraro no. 27265)

2шт.

18

A48112

GEAR

- planetary ring (Carraro no. 107628)

2шт.

19

A48115

RING

- ring gear retaining (Carraro no. 107734)

2шт.

20

A48113

PIN

- planetary gear (Carraro no. 112376)

6шт.

21

A48158

PIN

- roll, M5 x 60 mm (Carraro no. 24375)

6шт.

22

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

- planetary ring (Carraro no. 28524)

6шт.

23

A48144

VALVE

WASHER - planetary pin (Carraro no. 107733)

12шт.

24

K260221

BEARING

- planetary gear roller (Carraro no. 100035)

210шт.

25

A48159

WASHER

- roller bearing (Carraro no. 107732)

12шт.

26

A48116

GEAR

- planetary (Carraro no. 107643)

6шт.

27

A48111

WASHER

- planetary drive gear (Carraro no. 111540)

2шт.

28

A48110

GEAR

- planetary drive (Carraro no. 107642)

2шт.

29

A48107

RING

- gear hub (Carraro no. 107725)

2шт.

30

A48108

WASHER

- thrust (Carraro no. 107729)

2шт.

31

A48109

NUT

- gear hub, M70 lock (Carraro no. 23326)

2шт.

32

A48160

SPACER

SHIM - gear hub, 0.10 mm (Carraro no. 107726)

1шт.

32

A48161

SPACER

SHIM - gear hub, 0.30 mm (Carraro no. 107727)

1шт.

32

A48162

BUSHING

SHIM - gear hub, 0.50 mm (Carraro no. 107728)

1шт.
