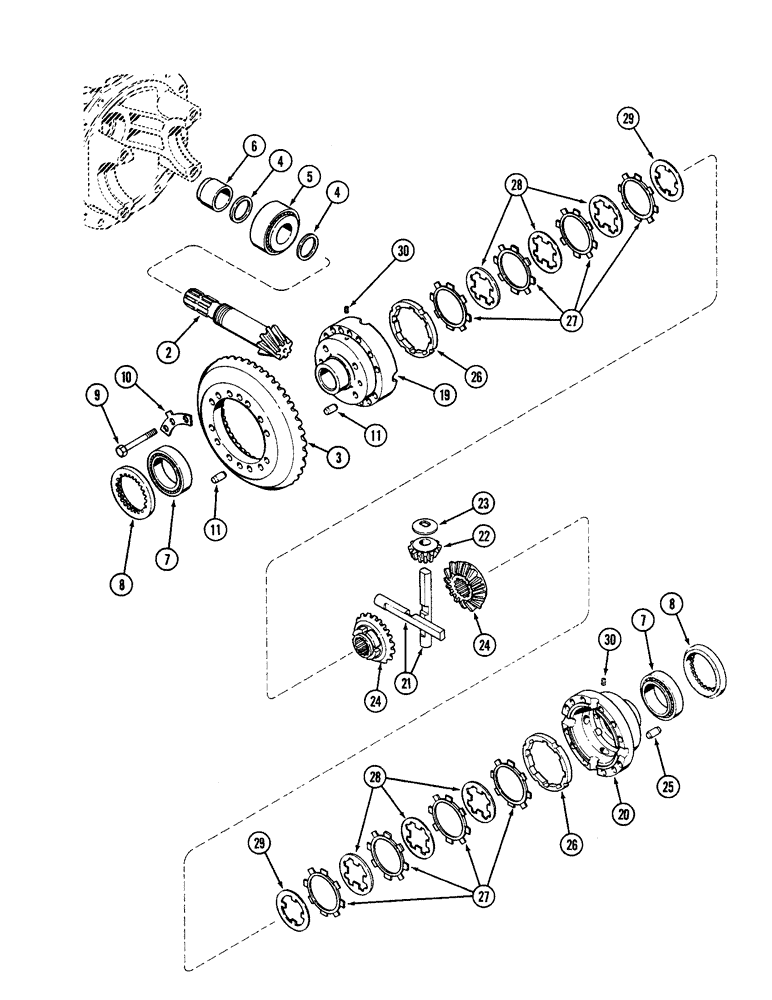

Запчасти Case IH 2090 (5-190) - FRONT AXLE DIFFERENTIAL, MFD TRACTORS (CONTD) (05) - STEERING

A156672

SHAFT

AXLE ASSEMBLY - MFD front, Includes: Ref. 2 - 30, 1 - 32 on Figure 5-188, 3 - 33 on Figure 5-192, 2 - 36 on Figure 5-194 and 2 - 32 on Figure 5-196

1шт.

A48151

GEAR

SET - ring and pinion (Matched set) (Carraro no. 65361), Includes: Ref. 2 & 3

1шт.

2

NSS

NOT SOLD SEPARAT

SHAFT - pinion (Order A48151) (Reference no. A48075)

1шт.

3

NSS

NOT SOLD SEPARAT

GEAR - spiral ring (Order A48151) (Reference no. A48076)

1шт.

4

A48055

SHIM,3.25mm Thk

Pinion shaft (Carraro no. 107511) 3.25mm Thk

1шт.

4

A48056

SHIM,3.30mm Thk

Pinion shaft (Carraro no. 107510) 3.30mm Thk

1шт.

4

A48057

SHIM,3.35mm Thk

Pinion shaft (Carraro no. 107509) 3.35mm Thk

1шт.

4

A48058

SHIM,3.40mm Thk

Pinion shaft (Carraro no. 107508) 3.40mm Thk

1шт.

4

A48059

SHIM,3.45mm Thk

Pinion shaft (Carraro no. 107507) 3.45mm Thk

1шт.

4

A48060

SHIM,3.50mm Thk

Pinion shaft (Carraro no. 107506) 3.50mm Thk

1шт.

4

A48061

SHIM,3.55mm Thk

Pinion shaft (Carraro no. 107505) 3.55mm Thk

1шт.

4

A48062

SHIM,3.60mm Thk

Pinion shaft (Carraro no. 107504) 3.60mm Thk

1шт.

4

A48063

SHIM,3.65mm Thk

Pinion shaft (Carraro no. 107503) 3.65mm Thk

1шт.

4

A48064

SHIM,3.70mm Thk

Pinion shaft (Carraro no. 107502) 3.70mm Thk

1шт.

4

A48065

SHIM,3.75mm Thk

Pinion shaft (Carraro no. 107501) 3.75mm Thk

1шт.

4

A48066

SHIM,3.80mm Thk

Pinion shaft (Carraro no. 107500) 3.80mm Thk

1шт.

4

A48067

SHIM,3.85mm Thk

Pinion shaft (Carraro no. 107499) 3.85mm Thk

1шт.

4

A48068

SHIM,3.90mm Thk

Pinion shaft (Carraro no. 107498) 3.90mm Thk

1шт.

4

A48069

SHIM,3.95mm Thk

Pinion shaft (Carraro no. 107497) 3.95mm Thk

1шт.

4

NLS

NO LONGER SERVICED

Pinion shaft (Carraro no. 107496) 4.00mm Thk

1шт.

4

A48071

SHIM,4.05mm Thk

Pinion shaft (Carraro no. 107495) 4.05mm Thk

1шт.

4

A48072

SHIM,4.10mm Thk

Pinion shaft (Carraro no. 107494) 4.10mm Thk

1шт.

4

A48073

SHIM,4.15mm Thk

Pinion shaft (Carraro no. 107493) 4.15mm Thk

1шт.

4

A48074

SHIM,4.20mm Thk

Pinion shaft (Carraro no. 107492) 4.20mm Thk

1шт.

5

A48033

TAPERED BEARING,110mm OD x 42.25mm

BEARING - differential support, front (Carraro no. 27415)

1шт.

6

A48034

BUSHING

SPACER - support bearing (Carraro no. 107512)

1шт.

7

A48037

TAPERED BEARING,70mm ID x 110mm OD x 31mm

BEARING - differential carrier side (Carraro no. 27420)

2шт.

8

A48038

RING

- bearing locking (Carraro no. 107488)

2шт.

9

A48077

BOLT

- gear to differential, M12 x 100 mm (Carraro no. 107476)

12шт.

10

A48078

WASHER

- tab (Carraro no. 107477)

4шт.

11

A48079

PIN

DOWEL - gear (Carraro no. 70783)

2шт.

A48150

DIFFERENTIAL

ASSEMBLY - (Carraro no. 110953), Includes: Ref. 19 & 20

1шт.

19

NSS

NOT SOLD SEPARAT

HUB - differential (Carraro no. 107395) (Order A48150) (Reference no. A48081)

1шт.

20

NSS

NOT SOLD SEPARAT

HUB - differential (Carraro no. 107411) (Order A48150) (Reference no. A48082)

1шт.

21

A48083

PIN

- differential cross (Reference no. 107478)

2шт.

22

A48085

GEAR

- pinion (Carraro no. 107480)

4шт.

23

A48084

WASHER

- differential pinion (Carraro no. 107479)

4шт.

24

A48086

GEAR

- differential splined (Carraro no. 107481)

2шт.

25

A48079

PIN

DOWEL - differential (Carraro no. 70783)

8шт.

26

A48087

RING

- disc carrier (Carraro no. 107482)

2шт.

27

A48088

DISC

- friction (Carraro no. 107483)

8шт.

28

A48089

DISC

- differential (Carraro no. 107484)

6шт.

29

A48092

DISC

- thrust, 3.50 MM (Carraro no. 107487)

1шт.

29

A48091

DISC

- thrust, 3.60 MM (Carraro no. 107486)

1шт.

29

A48090

DISC

- thrust, 3.70 MM (Carraro no. 107485)

1шт.

30

A48149

SCREW,#8 x 16mm

- differential, set, M8 x 16 mm (Carraro no. 21486)

2шт.
