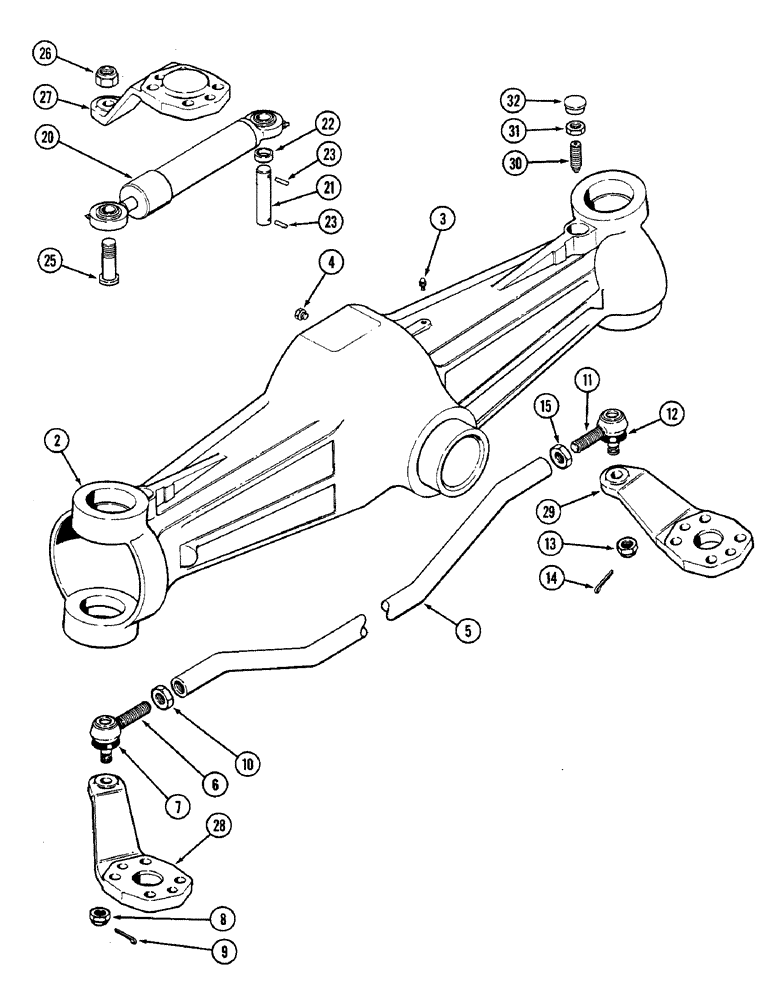

Запчасти Case IH 2090 (5-188) - FRONT AXLE HOUSING AND TIE ROD, MFD TRACTORS (05) - STEERING
№
Артикул
Название
Примечание
Количество
A156672
SHAFT
AXLE ASSEMBLY - MFD front (Carraro no. 113114), Includes: Ref. 1 - 32, 2 - 30 on Figure 5-190, 3 - 33 on Figure 5-192, 2 - 36 on Figure 5-194 and 2 - 32 on Figure 5-196
1шт.
2
A48020
HOUSING
- front axle (Carraro no. 107374)
1шт.
3
K965231
BREATHER
- axle housing (Carraro no. 104988)
1шт.
4
K965263
PLUG
- housing drain (Carraro no. 92269)
1шт.
5
A48124
ROD
TIE ROD - MFD front axle (Carraro no. 110361)
1шт.
6
A48125
END
- tie rod, right (Carraro no. 107620), Includes: Ref. 7 - 9
1шт.
7
A48164
COVER
BOOT - tie rod end (Carraro no. 43965)
1шт.
8
A48163
NUT
- tie rod (Carraro no. 22358)
1шт.
9
632-632
COTTER PIN,M3.2 x 32
- nut retaining (Carraro no. 25567)
1шт.
10
A48126
NUT
- tie rod, right (Carraro no.107759)
1шт.
11
A48127
END
- tie rod, left (Carraro no. 107619), Includes: Ref. 12 - 14
1шт.
12
A48164
COVER
BOOT - tie rod end (Carraro no. 43965)
1шт.
13
A48163
NUT
- tie rod (Carraro no. 22358)
1шт.
14
632-632
COTTER PIN,M3.2 x 32
- nut retaining (Carraro no. 25567)
1шт.
15
A48128
NUT
- tie rod, left (Carraro no. 107760)
1шт.
20
G102894
CYLINDER
ASSEMBLY - steering, See Figure 5-172
2шт.
21
A48120
PIN
- cylinder mounting (Carraro no. 107762)
2шт.
22
A48121
BUSHING
SPACER - mounting pin (Carraro no. 87980)
2шт.
23
A48166
PIN
- upper spirol, M8 x 45 mm (Carraro no. 24447)
4шт.
25
A48122
PIN
- cylinder mounting (Carraro no. 107761)
2шт.
26
A163188
NUT
- mounting pin retaining, hex lock, M22 x 1.5 (Carraro no. 22442)
2шт.
27
A48052
ARM
- steering, upper (Carraro no. 107742)
2шт.
28
A48053
ARM
- steering, lower right (Carraro no. 110363)
1шт.
29
A48054
ARM
- steering, lower left (Carraro no. 110360)
1шт.
30
A48042
ADJUSTMENT SCREW,M18 x 2.5 x 68mm
SCREW - housing bearing adjusting (Carraro no. 107719)
4шт.
31
K956932
JAM NUT
- M18 hex jam (Carraro no. 22132)
4шт.
32
A48043
PLUG
- adjusting screw hole (Carraro no. 107765)
4шт.
Выбрано товаров: 27
