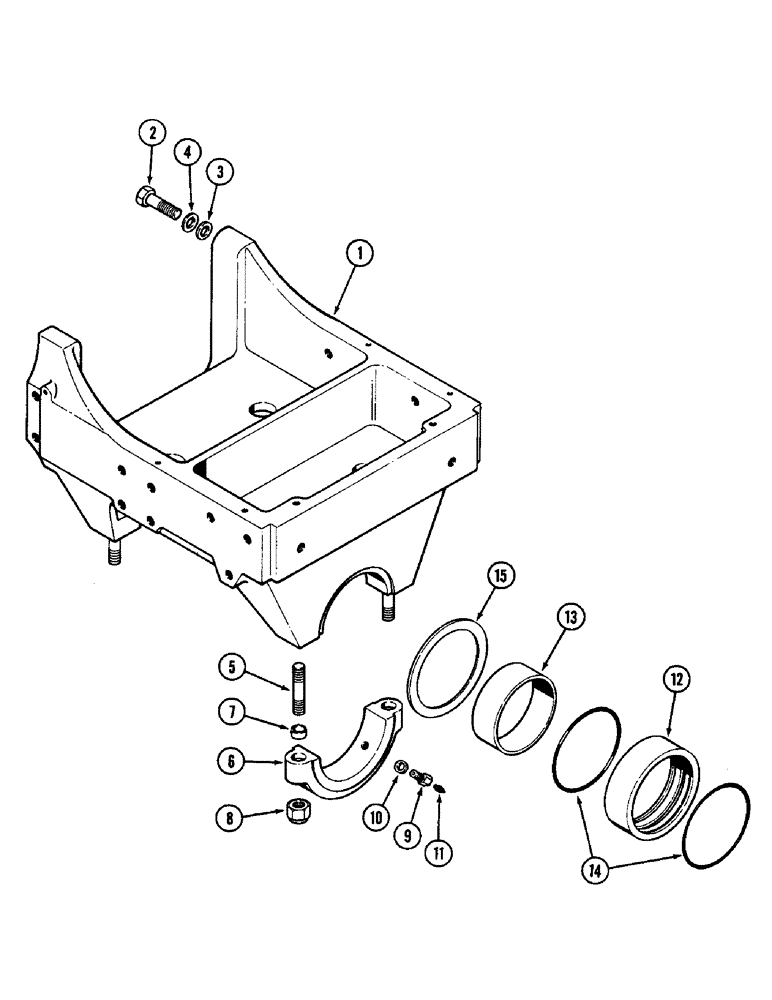

Запчасти Case IH 2090 (5-186) - FRONT AXLE SUPPORT, MFD TRACTORS (05) - STEERING

1

A155991

SUPPORT

- front axle (Carraro no. 110542)

1шт.

2

26-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

- hex, 3/4 NC x 2-3/4 inch (Grade 8)

4шт.

3

195-545

WASHER,3/4", SAE

- 13/16 x 1-15/32 x 1/8 inch (21 x 37 x 3 mm)

4шт.

4

A26462

WASHER

- 49/64 x 1-1/4 x 5/64 inch hardened (19 x 32 x 2 mm)

4шт.

5

A163186

STUD

- cap to support (Carraro no. 110726)

4шт.

6

NSS

NOT SOLD SEPARAT

CAP - support bearing (Carraro no. 110543) (Order A155991) (Reference no. A163303)

2шт.

7

A163187

PIN

DOWEL - cap (Carraro no. 110088)

4шт.

8

A163188

NUT

- cap retaining lock (Carraro no. 22442)

4шт.

9

A163189

BOLT

LOCK - support bearing (Carraro no. 110450) (Order A169980 and 219-1)

2шт.

10

K965425

WASHER

- support bearing lock (Carraro no. 22861)

2шт.

11

5194260

LUBE NIPPLE,M6 x 1, 16mm lg

FITTING - grease (Carraro no. 24210)

2шт.

12

A48022

BUSHING

- axle support (Carraro no. 107714)

1шт.

13

A48021

SLEEVE

- axle support (Carraro no. 107715)

1шт.

14

S5757

O-RING,6.237" ID x 6.443" OD x 0.103"

- support bushing (Carraro no. 28511)

2шт.

15

A48023

WASHER

- axle pivot thrust (Carraro no. 107713)

1шт.
