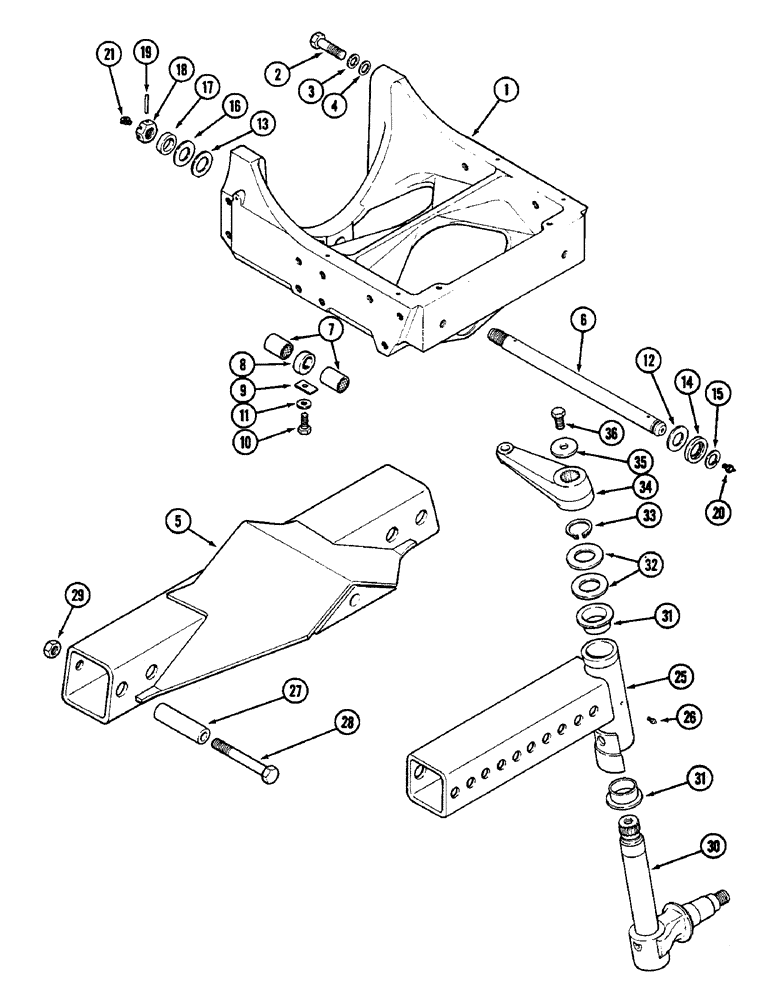

Запчасти Case IH 2090 (5-176) - ADJUSTABLE FRONT AXLE, PRIOR TO P.I.N. 9905863 (05) - STEERING

1

A160544

FRAME

SUPPORT - front axle (Replaces A139411)

1шт.

2

26-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

- hex, 3/4 NC x 2-3/4 inch (Grade 8)

4шт.

3

A26462

WASHER

- hardened, 49/64 x 1-1/4 x 5/64 inch (19 x 32 x 2 mm)

1шт.

4

195-545

WASHER,3/4", SAE

- soft, 13/16 x 1-15/32 x 1/8 inch (21 x 37 x 3 mm)

1шт.

5

A149893

SHAFT

AXLE - center section

1шт.

For repairs order 1 each of A160931 axle, A160552 collar, A160576 ring, A160928 pin and 126-43 key.

1шт.

6

A149886

PIN

- axle pivot

1шт.

7

A149887

BUSHING,34.95mm ID x 38.21mm OD x 50.8mm L

- axle pivot

2шт.

8

A149888

COLLAR

- axle pivot lock

1шт.

9

A143426

LOCKING TAB

TAB - bolt lock

1шт.

10

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

11

195-106

WASHER,1/2"

- 9/16 x 1-3/8 x 7/64 inch (14 x 35 x 3 mm)

1шт.

12

A149907

WASHER

- thrust, 1-13/32 x 2-1/2 x 1/16 inch (36 x 64 x 2 mm)

1шт.

13

A30047

WASHER

- retaining, 1-13/32 x 2-3/8 x 5/32 inch (36 x 60 x 4 mm)

1шт.

14

A160439

WASHER

- cup

1шт.

15

R21976

RING

- pivot retaining, front

1шт.

16

A149890

WASHER

- thrust, rear, 1-3/8 x 2-1/2 x 1/8 inch (35 x 64 x 3 mm)

1шт.

17

A26604

COLLAR

- wear, rear

1шт.

18

25-1320

SLOTTED NUT,1 1/4"-12, G5

1шт.

19

A162380

PIN

- hardened, 3/16 x 2 inch (5 x 51 mm) (Replaces A149915)

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8 inch PT straight (Front)

1шт.

21

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, (Rear) 90º, 1/8" NPT x .84" lg

1шт.

25

A160126

SHAFT

AXLE - end section, right (Left shown)

1шт.

25

A160127

SHAFT

AXLE - end section, left (Right shown)

1шт.

26

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight, 1/8 inch PT

4шт.

27

A137107

BUSHING

SPACER - axle adjusting

4шт.

28

26-1480

BOLT,Hex, 7/8" - 9 x 5", Gr 8

- hex, 7/8 NC x 5-1/2 inch (Grade 8)

4шт.

29

129-109

NUT,7/8"-9, G5

4шт.

30

A161259

SPINDLE

- front wheel (Replaces A145941 and A160446) (Order A167024)

2шт.

31

A143174

BUSHING,51mm ID x 60.45mm OD x 28.57mm L

- king pin

4шт.

32

A31269

WASHER,38.89mm ID x 73.03mm OD x 3.17mm Thk

- king pin

2шт.

33

T37909

SNAP RING,#150, Ext

Ring, Snap, , king pin #150, Ext

2шт.

34

A160124

ARM

- steering, right (Left shown)

1шт.

34

A160125

ARM

- steering, left

1шт.

35

A161870

WASHER

- steering arm, retaining, 25/32 x 2-1/2 x 5/16 inch (20 x 63 x 8 mm) (Replaces A65598)

2шт.

36

113-709

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

2шт.
