Запчасти Case IH 2090 (5-172) - STEERING CYLINDER (05) - STEERING

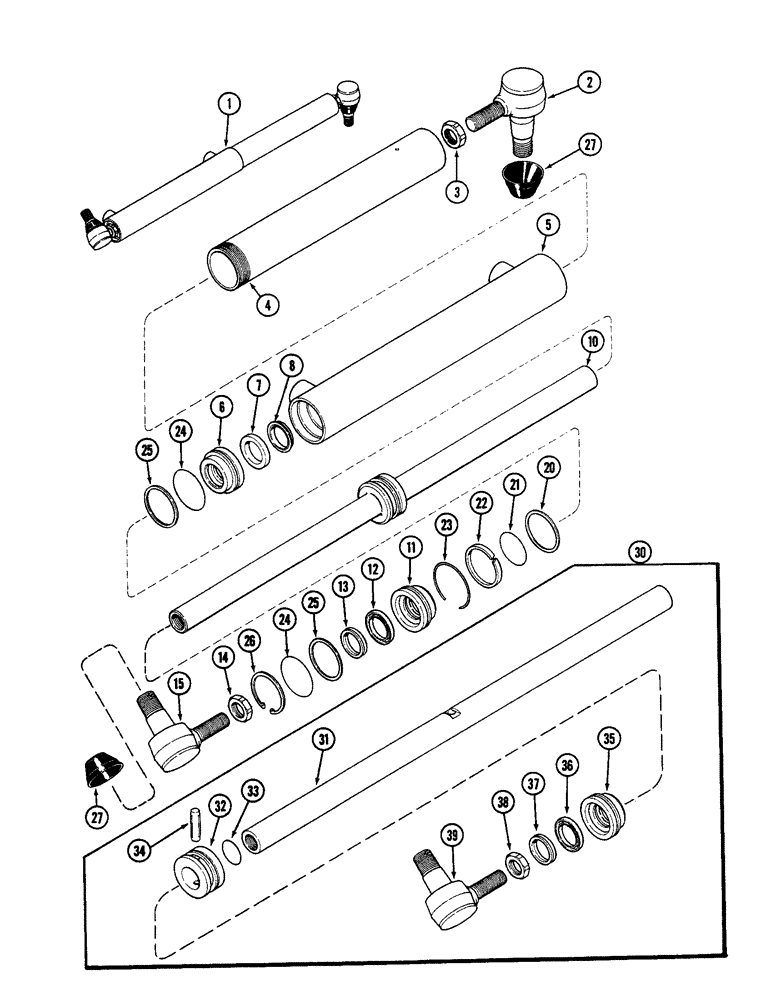

Схема запчастей Case IH 2090 - (5-172) - STEERING CYLINDER (05) - STEERING
37
23
32
22
5
27
14
36
20
33
11
3
10
24
38
34
39
6
1
35
2
26
30
8
13
25
25
15
27
21
4
31
7
12
24

Артикул

Название

Примечание

Количество

1

G102894

CYLINDER

ASSEMBLY - (Replaces G101336), Includes: Ref. 2 - 26

1шт.

2

L59042

BALL JOINT

END - ball joint, stationary

1шт.

3

A31094

JAM NUT

- hex jam, 7/8 inch NF

1шт.

4

G101395

TUBE,2.38" OD x 14.31" L

- plain

1шт.

5

G101800

TUBE,2.321" ID x 2.388" OD x 17.1" L

- with ports

1шт.

6

G101400

GLAND

- tube

1шт.

7

G101401

SEAT

SEAL - rod

1шт.

Part of Repair Kit, P/N G101805

1шт.

8

D95141

WIPER SEAL

WIPER - rod

1шт.

Part of Repair Kit, P/N G101805

1шт.

G102895

ROD

ASSEMBLY - piston (Replaces G101397), See Ref. 30 (Order components), Includes: Ref. 10 - 15

1шт.

10

G102272

ROD

- (Replaces G101398 and G101399), Includes: piston

1шт.

11

G101400

GLAND

- tube

1шт.

12

G101401

SEAT

SEAL - rod

1шт.

13

D95141

WIPER SEAL

WIPER - rod

1шт.

14

A31094

JAM NUT

- hex jam, 7/8 inch NF

1шт.

15

L59042

BALL JOINT

END - ball, joint, piston rod

1шт.

20

A61430

SEALING RING

RING - seal, piston, 2-1/2 x 2-9/64 x 1/8 inch (52 x 65 x 3 mm)

1шт.

Part of Repair Kit, P/N G101805

1шт.

21

A61429

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

- piston, 1-11/16 x 1-7/8 x 3/32 inch (43 x 48 x 2 mm)

1шт.

Part of Repair Kit, P/N G101805

1шт.

22

G101837

RING

- wear, piston

1шт.

Part of Repair Kit, P/N G101805

1шт.

23

G101804

RING

- gland retainer

1шт.

24

G102152

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

- gland, 2 x 2-1/2 x 7/64 inch (51 x 63 x 3 mm)

2шт.

Part of Repair Kit, P/N G101805

1шт.

25

G101803

RING

- backup

2шт.

Part of Repair Kit, P/N G101805

1шт.

26

T16276

SNAP RING,2.25", Int, #225

Ring, Snap, , gland 2.25", Int, #225

1шт.

27

D72832

COVER

CAP - cylinder dust

2шт.

30

G101397

ROD ASSY.

ROD ASSEMBLY - early production (Order G102895), Includes: Ref. 31 - 39

1шт.

31

G101398

ROD

- early production (Order G102272)

1шт.

32

G101399

PISTON

- early production only

1шт.

33

A57041

O-RING,0.103" Thk x 1.237" ID, -124, Cl 6, 90 Duro

- 1-1/4 x 1-7/16 x 3/32 inch (32 x 37 x 2 mm)

1шт.

Part of Repair Kit, P/N G101805

1шт.

34

G100258

GROOVED PIN,3/8" x 1 3/4", Type F, Hardened

Pin, Grooved, , early production only 3/8" x 1 3/4", Type F, Hardened

1шт.

Part of Repair Kit, P/N G101805

1шт.

35

G101400

GLAND

- tube

1шт.

36

G101401

SEAT

SEAL - rod

1шт.

Part of Repair Kit, P/N G101805

1шт.

37

D95141

WIPER SEAL

WIPER - rod

1шт.

Part of Repair Kit, P/N G101805

1шт.

38

A31094

JAM NUT

- hex jam, 7/8 inch NF

1шт.

39

L59042

BALL JOINT

END -ball joint piston rod

1шт.

G101805

KIT

- repair, Includes: Ref. 7, 8, 20, 21, 22, 24, 25, 33, 34, 36, 37

1шт.
