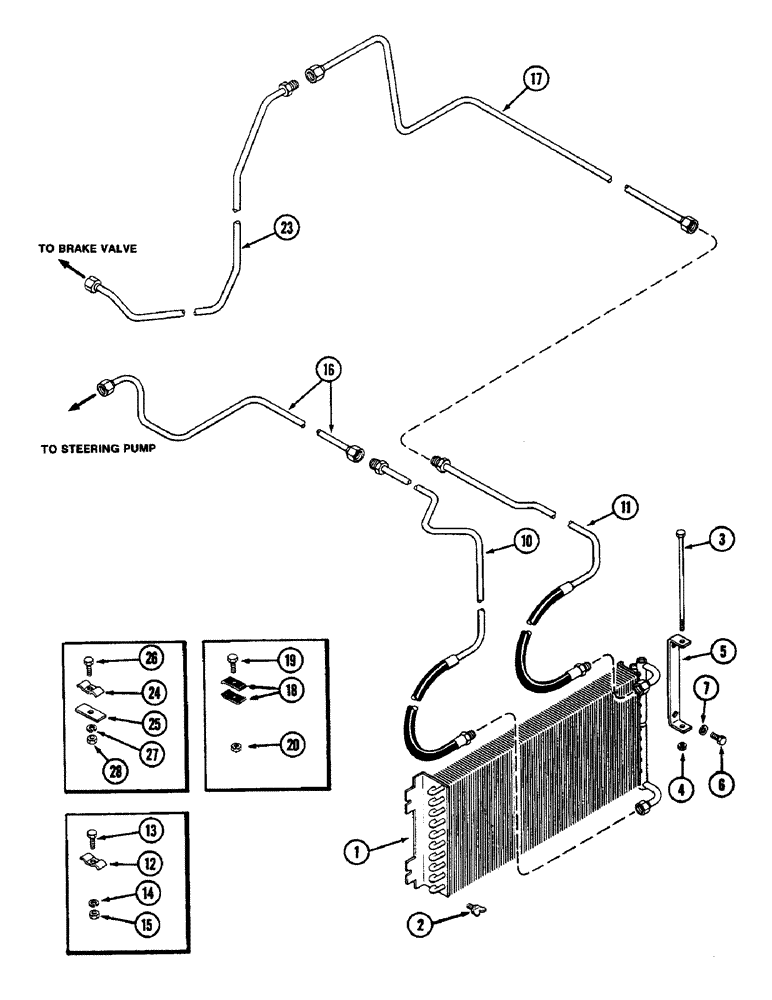

Запчасти Case IH 2090 (5-168) - OIL COOLER (05) - STEERING

1

A160399

COOLER

- hydraulic oil (Replaces A147348)

1шт.

2

A141485

THUMB SCREW,5/16" - 18 x 5/8"

- wing head, 5/16 NC x 5/8 inch

2шт.

3

17-4136

BOLT,Sq Hd, 1/4" - 20 x 8 1/2", Gr 2

- hex, pivot, 1/4 NC x 8-1/2 inch (Grade 2)

1шт.

4

131-204

NUT,1/4"-20

NUT - hex lock, 1/4 inch NC

1шт.

5

A141489

SUPPORT

BRACKET - pivot, oil cooler

1шт.

6

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

2шт.

7

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

10

A147957

HOSE

- inlet

1шт.

11

A147958

TUBE

HOSE - outlet

1шт.

12

A63323

CLAMP

- hose

4шт.

13

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

14

92-5

LOCK WASHER,5/16"

2шт.

15

9635082

NUT,5/16" - 18, Gr 5

2шт.

16

A147956

TUBE

- inlet

1шт.

17

NLS

NO LONGER SERVICED

- outlet

1шт.

18

A63323

CLAMP

- tube

4шт.

19

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

20

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

23

A147699

TUBE

- rear

1шт.

24

A63323

CLAMP

- tube

1шт.

25

A60864

PLATE

- clamp

1шт.

26

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

27

92-5

LOCK WASHER,5/16"

1шт.

28

9635082

NUT,5/16" - 18, Gr 5

1шт.
