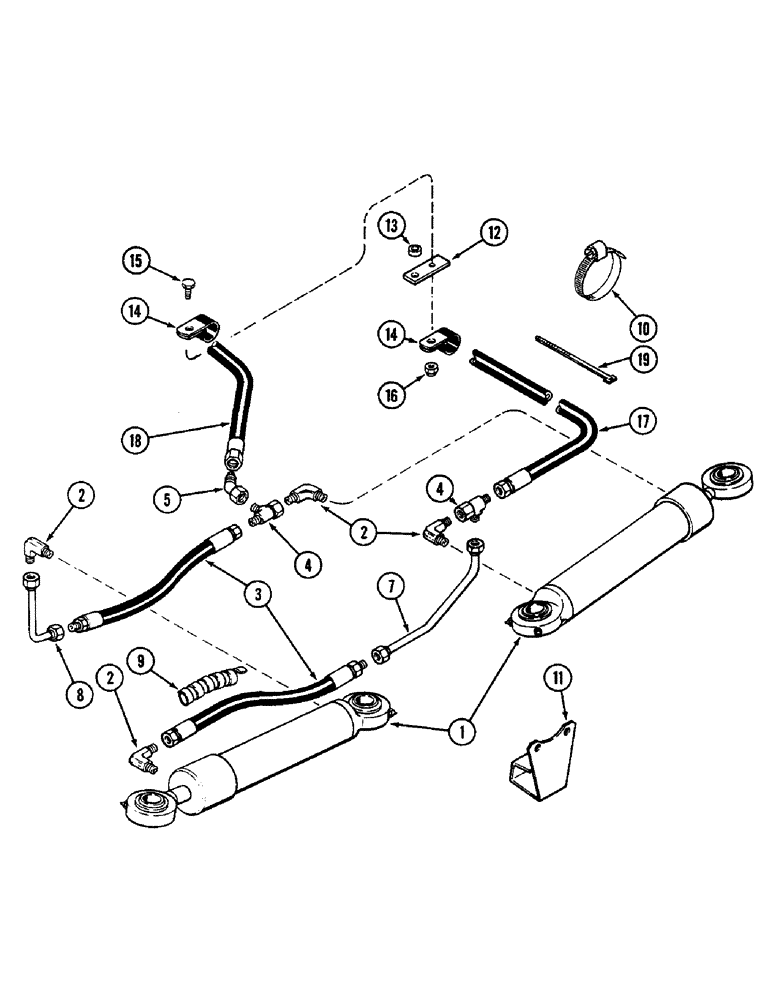

Запчасти Case IH 2090 (5-166) - STEERING SYSTEM, MFD TRACTORS (05) - STEERING

1

G102894

CYLINDER

ASSEMBLY - steering, See Figure 5-172

2шт.

2

K260225

FITTING

ELBOW - hose to cylinder (Carraro no. 101522)

4шт.

3

A164626

HYDRAULIC HOSE,0.50" ID x 22.90", SAE 100R2 per SAE 517

0.50" x 22.90", SAE 100R2 per SAE J517 - Steering (Replaces K260236)

2шт.

4

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- steering connector (Replaces A163193)

2шт.

5

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

1шт.

7

A163194

TUBE

- steering, left (Carraro no. 110896)

1шт.

8

A163195

TUBE

- steering, right (Carraro no. 110895)

1шт.

9

K956973

GUARD

- hose protective (Carraro no. 107739)

2шт.

10

214-263

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

CLAMP - hose retaining (Replaces A163198)

2шт.

11

A163199

BRACKET

- hose to axle retaining (Carraro no. 110645)

1шт.

12

A67290

BRACKET

- steering hose support (Replaces A163201)

1шт.

13

A67289

BUSHING

SPACER - hose support bracket (Replaces A163200)

1шт.

14

R12102

CLAMP

- hose (Order D20302)

2шт.

15

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Clamp Hex, 1/4"-20 x 1", G5

2шт.

16

131-461

LOCK NUT,1/4"-20

NUT - hex lock, 1/4 inch NC

2шт.

17

REF

INSTRUCTION

HOSE - left, cylinder to steering pump, See Ref. 6, Figure 5-164

1шт.

18

REF

INSTRUCTION

HOSE - right, cylinder to steering pump, See Ref. 5, Figure 5-164

1шт.

19

A160890

STRAP

- hose retaining (Order R38237)

1шт.
