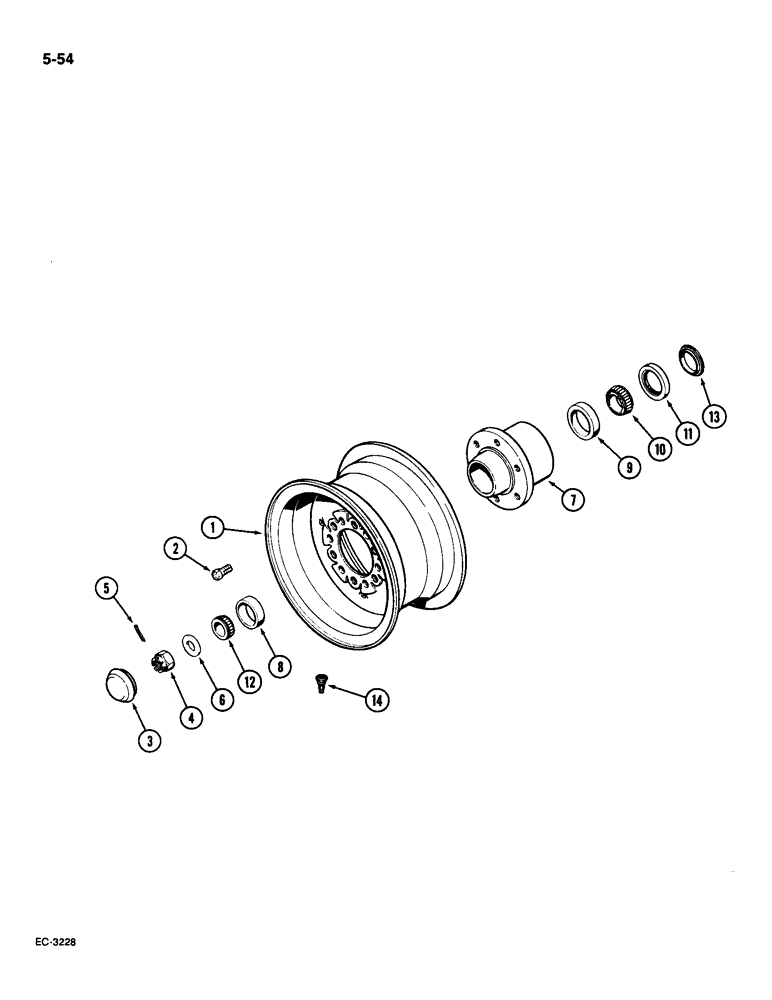

Запчасти Case IH 1896 (5-54) - FRONT WHEEL AND HUB, 6 BOLT HUB (05) - STEERING

1

A60405

WHEEL

- front (For 10.00 x 16 tire)

2шт.

2

B18264

WHEEL BOLT

BOLT - hex, special, Serial Range: wheel-hub

12шт.

3

A29425

CAP

- hub

2шт.

4

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - hex, slotted, 1-1/8 inch NF

2шт.

5

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.

6

A62918

WASHER,28.96mm ID x 50.8mm OD x 4.78mm Thk

- front wheel spindle

2шт.

A59135

HUB

ASSEMBLY - front wheel, Includes: Ref. 7 - 11

2шт.

7

A57332

HUB

- front wheel

1шт.

8

A27631

CUP

- bearing

1шт.

9

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - bearing

1шт.

10

A29063

ROLLER BEARING,44.463 mm ID x 25.476 mm

CONE - bearing, inner

1шт.

11

A57247

OIL SEAL

- outer

1шт.

12

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - bearing

2шт.

13

A57246

OIL SEAL

- inner

2шт.

14

A38261

VALVE

- tire, tubeless

2шт.
