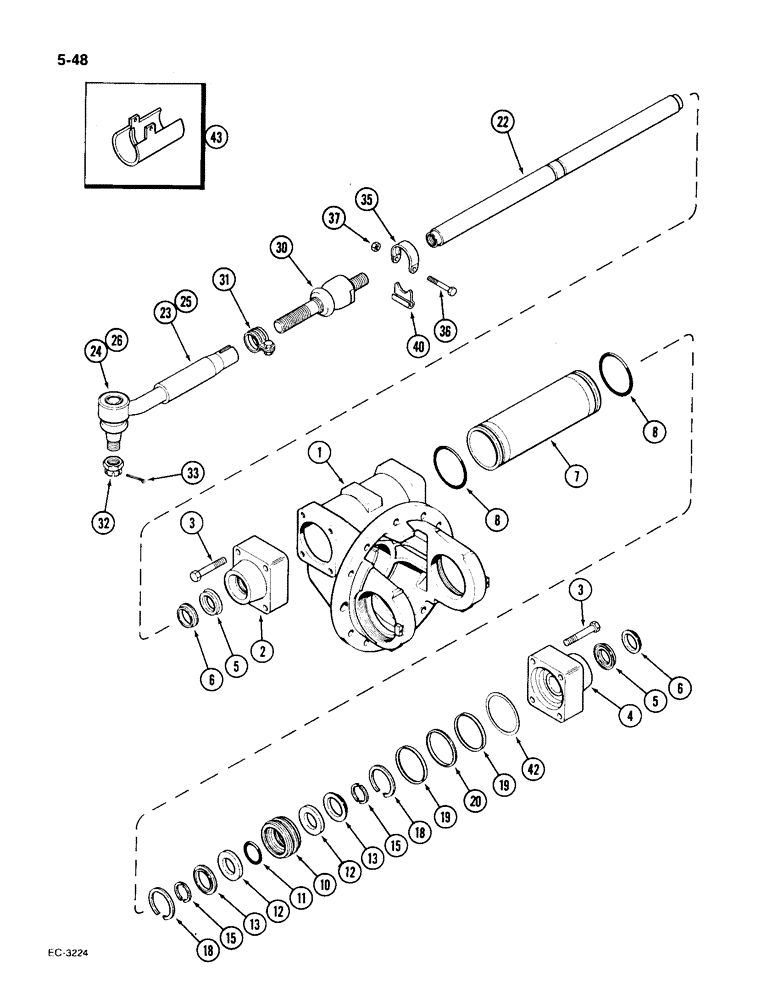

Запчасти Case IH 1896 (5-48) - ZF FOUR WHEEL DRIVE FRONT AXLES, PRIOR TO P.I.N. 17895962, STEERING CYLINDER AND TIE RODS (05) - STEERING
№
Артикул
Название
Примечание
Количество
A169532
AXLE
ASSEMBLY - front, Includes: Ref. 1 - 43, Start Serial: 17895472
1шт.
1968459C1
AXLE
ASSEMBLY - front, (Both axles continued from Figure 5-46), Includes: Ref. 1 - 43, Serial Range: 17895472-17895962
1шт.
1
A52052
CARRIER
- differential (See Figure 5-44)
1шт.
2
A52153
GUIDE
- rod, cylinder, right hand
1шт.
3
A52154
BOLT
BOLT hex, 14 mm x 75 mm
8шт.
4
A52184
GUIDE
- rod, cylinder, left hand
1шт.
5
A52156
RING
- grooved, cylinder
2шт.
6
A52370
SCRAPER RING
RING - scrapper, cylinder
2шт.
7
A52151
CYLINDER BLOCK
CYLINDER - steering
1шт.
8
A52152
O-RING,86 mm ID x 3 mm
- 86 mm ID, cylinder
2шт.
10
A52158
PISTON ASSY.
PISTON - cylinder
1шт.
11
A52159
O-RING,39.2 mm ID x 5.7 mm
- 32.9 x 5.7 mm, piston
1шт.
12
A52160
RING
DISK - cylinder
2шт.
13
A52161
CLIP
- ring
2шт.
15
A52162
RING
- split (2 halves)
2шт.
18
A52163
SNAP RING
RING - retaining, cylinder piston
2шт.
19
A52165
RING
- scraper
2шт.
20
A52164
RING
- sealing, cylinder
1шт.
22
A52157
ROD
- cylinder piston
1шт.
23
A52106
ROD
ASSEMBLY - tie, right hand, Includes: Ref. 24 - 33
1шт.
23
A52105
ROD
ASSEMBLY - tie, left hand, Includes: Ref. 24 - 33
1шт.
24
A52185
JOINT TURNING
JOINT ASSEMBLY - ball (Right hand tie rod)
1шт.
26
A52058
JOINT TURNING
JOINT ASSEMBLY - ball (Left hand tie rod)
1шт.
30
A52166
JOINT TURNING
JOINT ASSEMBLY - axial, tie rod
1шт.
31
A52114
CLAMP
ASSEMBLY - tie rod
1шт.
32
A52079
NUT
- castle, 27 mm
1шт.
33
632-206
COTTER PIN,M5 x 45
PIN - cotter, 5 mm x 45 mm
1шт.
35
A52189
PLATE ASSY.
PLATE - stop
2шт.
36
CASA52187
BOLT (SPREADER)
BOLT - hex, 8 mm x 60 mm,Large head
2шт.
37
A52188
NUT
- hex, 8 mm
2шт.
40
A52186
PLATE ASSY.
PLATE - spacing
2шт.
42
A52167
SHIM,1.0mm Thk
Steering cylinder 1.0mm Thk
1шт.
42
A52168
SHIM,1.1mm Thk
Steering cylinder 1.1mm Thk
1шт.
42
A52169
SHIM,1.2mm Thk
Steering cylinder 1.2mm Thk
1шт.
42
A52170
SHIM,1.3mm Thk
Steering cylinder 1.3mm Thk
1шт.
42
A52171
SHIM,1.4mm Thk
Steering cylinder 1.4mm Thk
1шт.
42
A52172
SHIM,1.5mm Thk
Steering cylinder 1.5mm Thk
1шт.
42
A52173
SHIM,1.6mm Thk
Steering cylinder 1.6mm Thk
1шт.
42
A52174
SHIM,1.7mm Thk
Steering cylinder 1.7mm Thk
1шт.
42
A52175
SHIM,1.8mm Thk
Steering cylinder 1.8mm Thk
1шт.
42
A52176
SHIM,1.05mm Thk
Steering cylinder 1.05mm Thk
1шт.
42
A52177
SHIM,1.15mm Thk
Steering cylinder 1.15mm Thk
1шт.
42
A52178
SHIM,1.25mm Thk
Steering cylinder 1.25mm Thk
1шт.
42
A52179
SHIM,1.35mm Thk
Steering cylinder 1.35mm Thk
1шт.
42
A52181
SHIM,1.55mm Thk
Steering cylinder 1.55mm Thk
1шт.
42
A52182
SHIM,1.65mm Thk
Steering cylinder 1.65mm Thk
1шт.
42
A52183
SHIM,1.75mm Thk
Steering cylinder 1.75mm Thk
1шт.
43
A180279
STOP
- steering
2шт.
Выбрано товаров: 49
