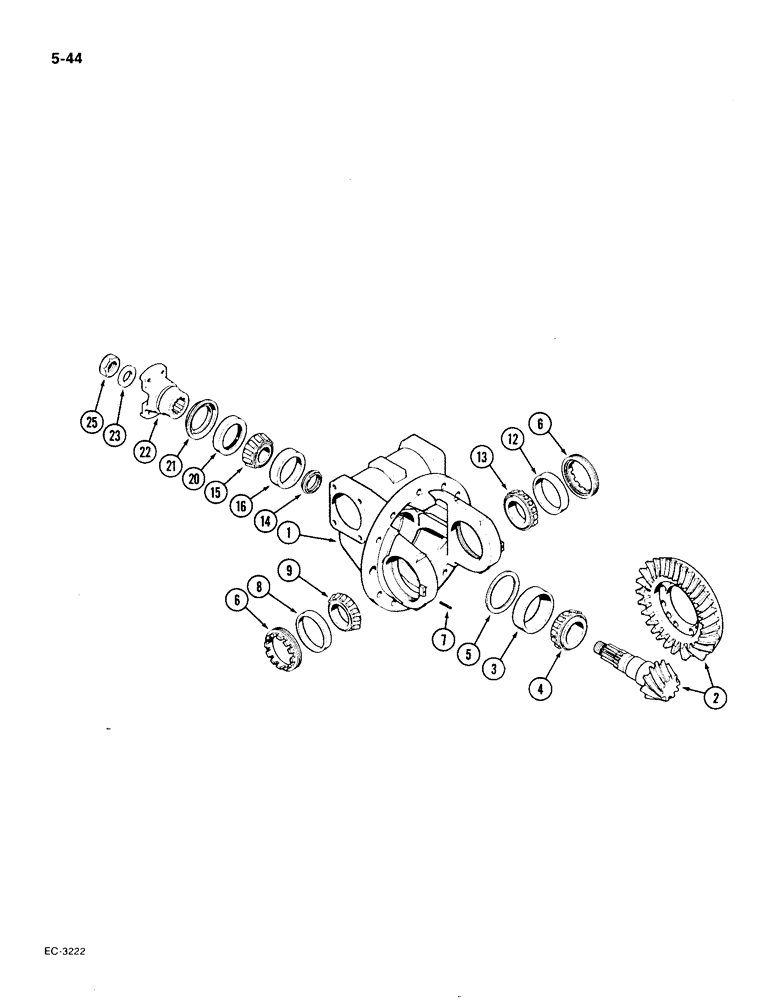

Запчасти Case IH 1896 (5-44) - ZF FOUR WHEEL DRIVE FRONT AXLES, PRIOR TO P.I.N. 17895962, DIFFERENTIAL (05) - STEERING

A169532

AXLE

ASSEMBLY - front, Includes: Ref. 1 - 25 and 26 - 45 on fig. 5-46, Start Serial: 17895472

1шт.

1968459C1

AXLE

ASSEMBLY - front (Both axles continued from Figure 5-42), Includes: Ref. 1 - 25, Serial Range: 17895472-17895862

1шт.

1

A52052

CARRIER

- differential

1шт.

2

A52074

GEAR WHEEL

GEAR - bevel, matched set

1шт.

3

530745R1

BEARING, CUP

(Replaces A52387)

1шт.

4

406535R91

ROLLER BEARING,1.5005" ID x 3.251" OD x 1.1643, 0.9063"

CONE - bearing (Replaces S95305)

1шт.

5

A52062

SHIM,0.1mm Thk

Bearing 0.1mm Thk

1шт.

5

A52061

SHIM,0.2mm Thk

Bearing 0.2mm Thk

1шт.

5

A52060

SHIM,0.3mm Thk

Bearing 0.3mm Thk

1шт.

5

A52059

SHIM,0.5mm Thk

Bearing 0.5mm Thk

1шт.

6

A52067

BEARING LOCK NUT

- adjusting, differential bearing

2шт.

7

A52091

AXLE PIN

PIN - roll, 6 x 30 mm

2шт.

8

A50179

BEARING CUP

CUP - bearing, oil distribution carrier

1шт.

9

L33289

ROLLER BEARING,57.1565mm ID x 21.857mm Thk

CONE - bearing, oil distribution carrier, 2-1/4 inch ID

1шт.

12

1968462C1

CUP - bearing, differential (Replaces A52064)

1шт.

13

A30500

ROLLER BEARING,2.25" ID x 0.9688"

CONE - bearing, differential

1шт.

14

A52055

SLEEVE CYLINDER

SLEEVE - pinion shaft

1шт.

A52387

ROLLER BEARING,53.975 mm ID x 104.775 mm OD x 28.574, 36.513 mm

BEARING - roller, differential pinion, Includes: Ref. 15 and 16

1шт.

15

NSS

NOT SOLD SEPARAT

CONE - bearing

1шт.

16

NSS

NOT SOLD SEPARAT

CUP - bearing

1шт.

20

A52068

SEAL

- oil, pinion shaft

1шт.

21

A52073

SEAL

COVER - pinion gear

1шт.

22

A52072

FLANGE

- drive

1шт.

23

A52069

WASHER

- pinion nut

1шт.

25

A52070

NUT

- hex, 26 mm

1шт.
