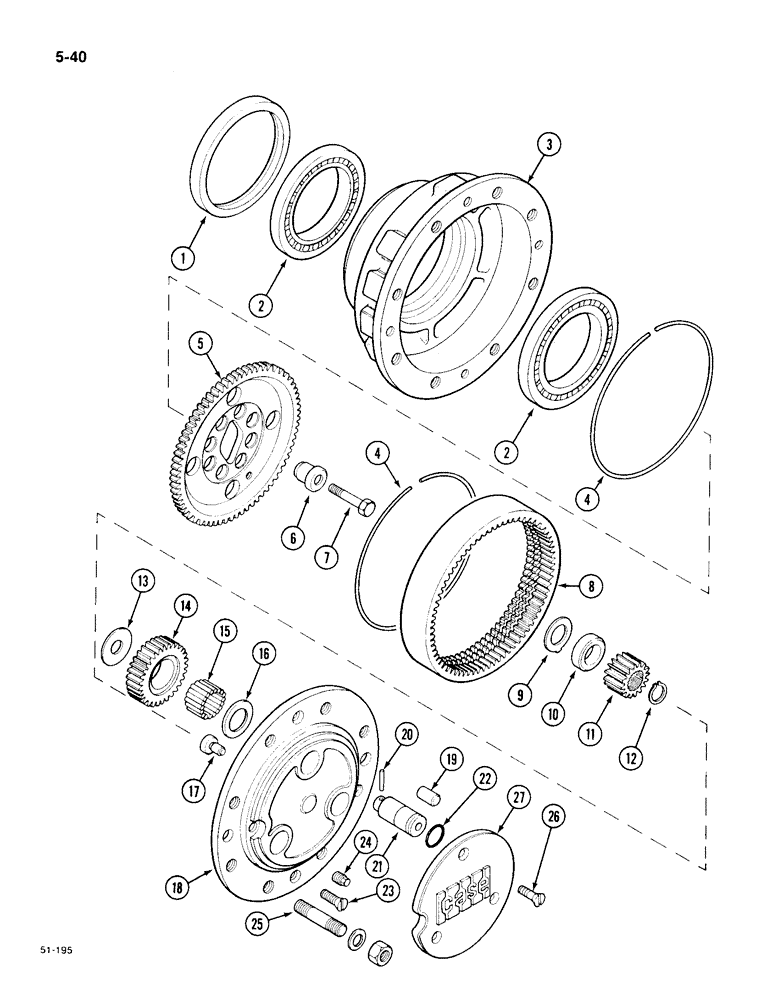

Запчасти Case IH 1896 (5-40) - CARRARO FOUR WHEEL DRIVE FRONT AXLE, P.I.N. 17895962 AND AFTER, PLANETARY GEARS AND HUBS (05) - STEERING

1975363C1

AXLE

ASSEMBLY - front, Includes: Ref. 1 - 27

1шт.

1

K395102

OIL SEAL

- oil, 155 x 176 x 16 mm

2шт.

2

K395101

TAPERED BEARING,109.5mm ID x 126mm x 21.4mm L

BEARING - ball

4шт.

3

D142978

HUB

- wheel attaching

2шт.

4

D142979

RING, SNAP

RING - lock

4шт.

5

D142980

CARRIER

HUB - ring gear

2шт.

6

K395105

RING

BUSHING - 20 mm O.D.

14шт.

6

K395104

RING

BUSHING - 24 mm O.D.

2шт.

7

K395131

BOLT,Hex, M14 x 1.5 x 65mm, Cl 10.9

BOLT, , Special Hex, M14 x 65, Cl 10.9

16шт.

8

D142981

GEAR WHEEL

GEAR - ring, planetary

2шт.

9

K395115

WASHER

- tab locking, special

2шт.

10

D142983

SPACER

- pinion gear

2шт.

11

D142982

PINION

GEAR - pinion, axle shaft

2шт.

12

K965313

RING, SNAP

RING - retaining, 35 mm

2шт.

13

D142984

WASHER

- thrust

6шт.

14

D142985

SUN GEAR

GEAR - pinion, planetary

6шт.

15

K260211

ROLLER BEARING

BEARING - needle, planetary gear

180шт.

16

D142984

WASHER

- thrust

6шт.

17

K395093

HEADED PIN,12mm OD x 15mm L

PIN - thrust

2шт.

18

D142988

CARRIER

COVER - planetary gear

2шт.

19

K395094

DOWEL,M18 x 36

Pin M18 x 36

2шт.

20

K260197

PIN

- cotter, 4 x 40 mm

6шт.

21

D142989

PIN

SHAFT - pinion gear

6шт.

22

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

- sealing

6шт.

23

K395029

SCREW

- 12 mm x 30 mm, plantetary cover

4шт.

24

1966145C1

PLUG

- drain/fill

4шт.

25

1997699C1

STUD

- cover retaining

16шт.

25

1997700C1

STUD

- with collar, cover retaining

4шт.

26

K395082

SCREW,M8 x 20mm

- 8 mm x 20 mm, cover plate

6шт.

27

D143079

COVER

PLATE - planetary cover

2шт.
