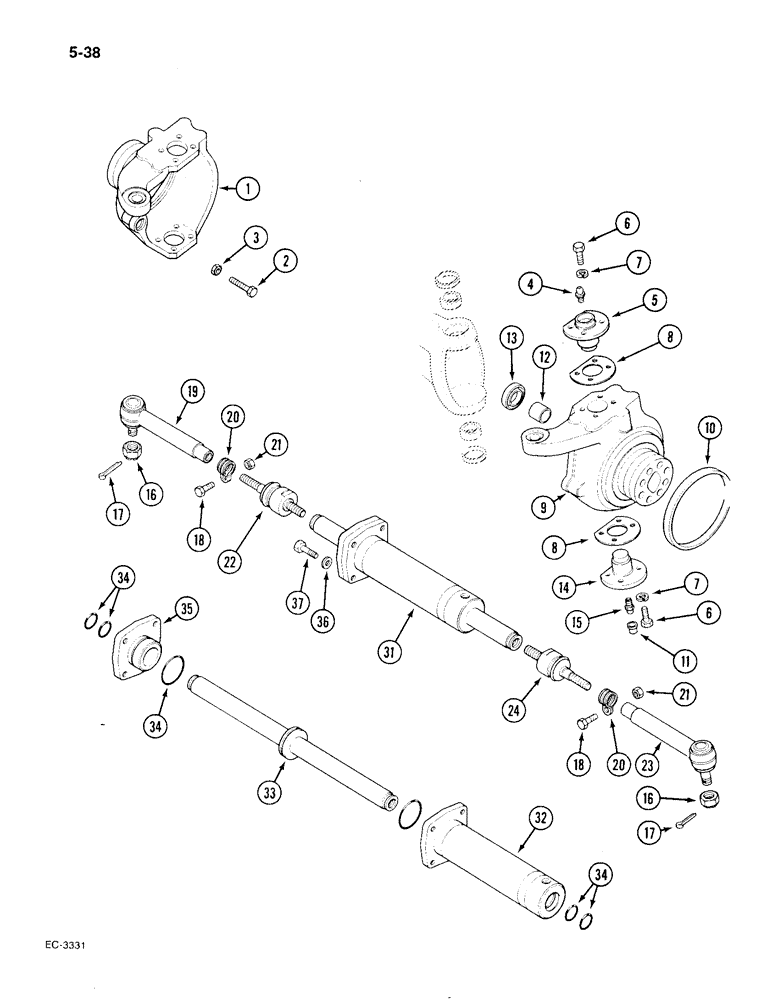

Запчасти Case IH 1896 (5-38) - CARRARO FOUR WHEEL DRIVE FRONT AXLE, P.I.N. 17895962 AND AFTER, SWIVEL HOUSING AND STEERING CYLINDER (05) - STEERING

1975363C1

AXLE

ASSEMBLY - front, Includes: Ref. 1 - 37

1шт.

1

D142905

HOUSING

- steering knuckle, left hand

1шт.

2

D142907

SCREW

BOLT - special, steering stop

4шт.

3

D142908

NUT

- hex, 10 mm

4шт.

4

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

NIPPLE, LUBE, M6 x 1, 16mm lg

2шт.

5

D142910

PIN

- king, upper

2шт.

6

D142915

BOLT,Hex, M16 x 40, 8.8

16шт.

7

K260268

LOCK WASHER,M16

WASHER - lock, 16 mm

16шт.

8

D142912

SHIM,58mm ID x 130mm OD x 0.1mm Thk

1шт.

8

D142913

SHIM,58mm ID x 130mm OD x 0.19mm Thk

1шт.

8

D142914

SHIM,0.35mm Thk

1шт.

9

D142904

HOUSING

- steering knuckle, right hand

1шт.

10

K395138

WEAR RING

RING - wear

2шт.

11

81861C1

PLUG

- steering knuckle

4шт.

12

D142906

BUSHING

- swivel housing

2шт.

13

N8897

OIL SEAL

SEAL - oil

2шт.

14

D142911

PIN

- king, lower

2шт.

15

N13505

LUBE NIPPLE,45 Degree, M6 x 1

NIPPLE, LUBE, , 6 mm thread 45º, M6 x 1

2шт.

16

N14380

JAM NUT

- slotted

2шт.

17

D142927

PIN

- cotter

2шт.

18

D142926

BOLT

- tie rod clamp

2шт.

19

307429A1

BALL JOINT

JOINT - ball, left hand thread, per C972428

1шт.

20

D142924

CLAMP

- tie rod

2шт.

Clamps are not used with above ball joints. Must use 126141A1 LH lock nut and 126143A1 RH lockk nut. These nuts are assembled before installing the new tie rod ends and once toe is set the lock nuts are torqued to 250 nm or 56 ft. lbs.

1шт.

21

D142925

NUT

- tie rod clamp

2шт.

22

N14388

BALL JOINT

ROD - tie, left hand thread

1шт.

23

307430A1

BALL JOINT

JOINT - ball, right hand thread, per C972428

1шт.

24

N14377

ARTICULATION

ROD - tie, right hand thread

1шт.

31

D142918

CYLINDER

ASSEMBLY - steering, Includes: Ref. 32 - 37

1шт.

32

D146313

TUBE

CYLINDER - steering

1шт.

33

D146312

ROD

PISTON - steering cylinder

1шт.

34

D142931

GASKET KIT

KIT - seals

1шт.

35

D142930

HEAD

- cylinder

1шт.

36

K965425

WASHER

- lock, 12 mm

4шт.

37

D142929

BOLT,Hex, M12 x 50, 8.8

- hex, 12 mm x 50 mm, cylinder mounting

4шт.
