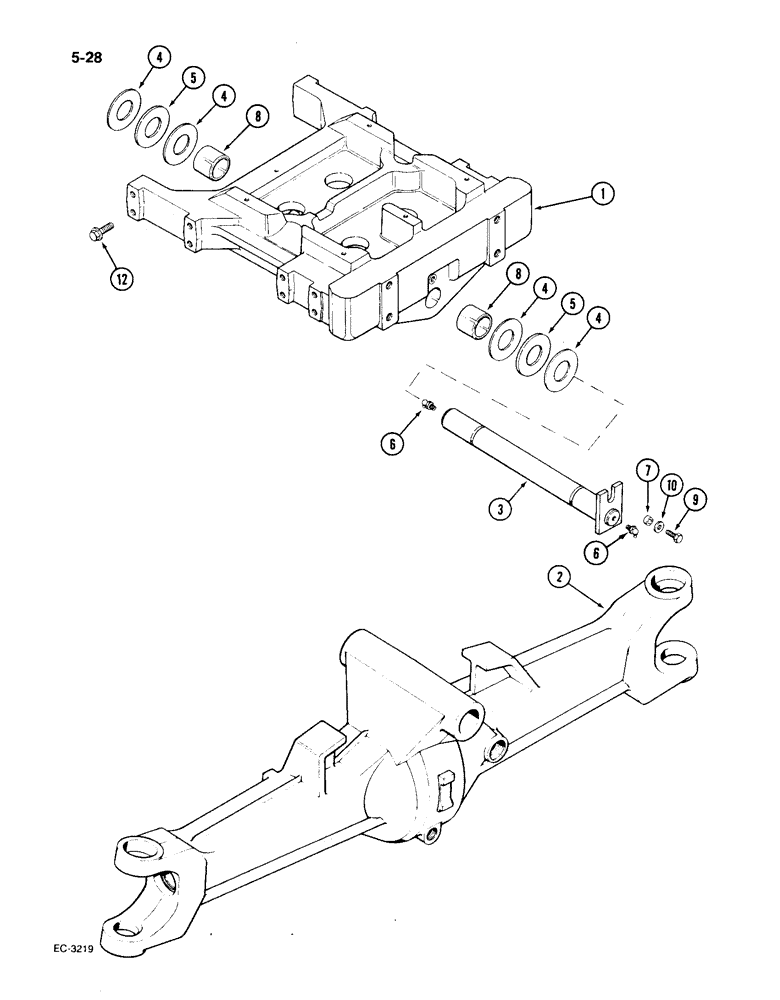

Запчасти Case IH 1896 (5-28) - FOUR WHEEL DRIVE FRONT AXLE AND SUPPORT (05) - STEERING

1

169577

SPACER

SUPPORT - front axle

1шт.

2

A169532

AXLE

ASSEMBLY - front, 4 wheel drive (See Figure 5-42), Start Serial: 17895472

1шт.

2

1968459C1

AXLE

ASSEMBLY - front, 4 wheel drive (See Figure 5-42), Serial Range: 17895472-17895962

1шт.

2

1975363C1

AXLE

ASSEMBLY - front, 4 wheel drive (See Figure 5-30), Serial Range: -17895862

1шт.

3

A169586

PIN

- axle pivot

1шт.

4

A177854

WASHER,50.3mm ID x 90mm OD x 1.6mm Thk

front axle pivot

1шт.

5

A177855

SEALING WASHER,50.3mm ID x 90mm OD x 4.9mm Thk

thrust, axle pivot

2шт.

6

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

7

A185525

SPACER

- pivot pin (Replaces A148908)

1шт.

8

A177916

BUSHING,50.3mm ID x 64.96mm OD x 50mm L

- pivot pin

2шт.

9

826-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

- hex, 12 mm x 40 mm, class 10.9

1шт.

10

D78732

WASHER

- special, hardened, flat, 1/2 inch, (Replaces L30674)

1шт.

12

A169100

BOLT

- hex flange, 16 mm x 45 mm, grade 10.9

16шт.
