(5-26) - ADJUSTABLE FRONT AXLE TIE RODS

Запчасти Case IH 1896 (5-26) - ADJUSTABLE FRONT AXLE TIE RODS (05) - STEERING

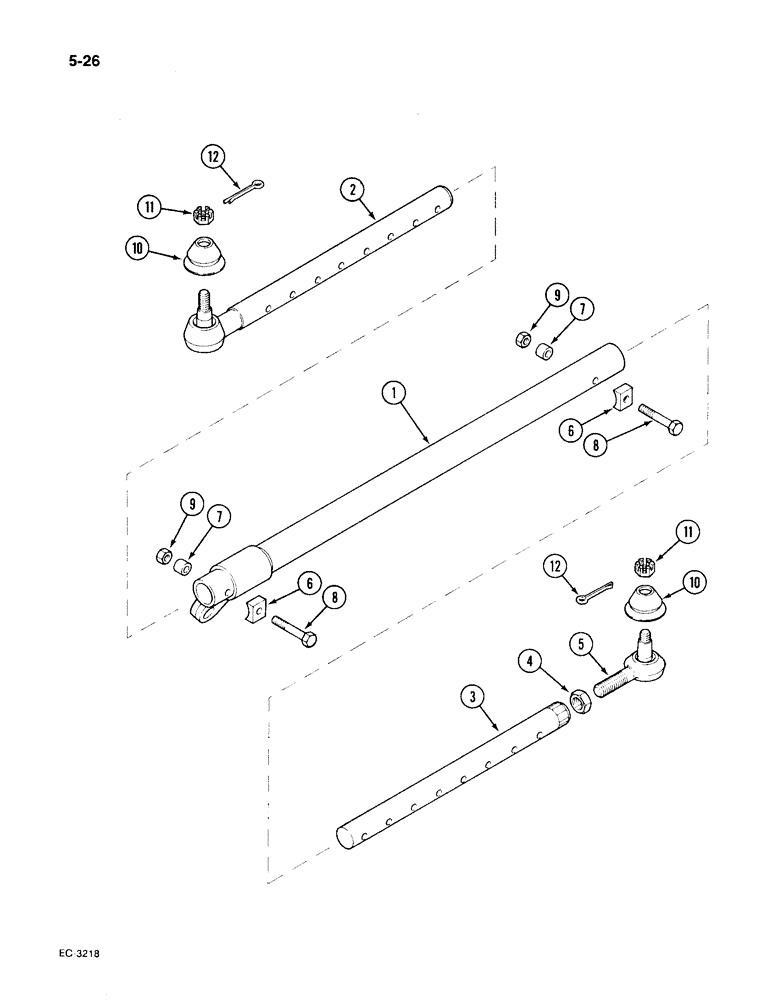

Схема запчастей Case IH 1896 - (5-26) - ADJUSTABLE FRONT AXLE TIE RODS (05) - STEERING
11
6
8
9
6
11
3
5
12
2
9
1
7
4
12
10
7
8
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A160166

TUBE

- tie rod, standard wheel base tractors

1шт.

2

A160199

ROD

END - rod and ball assembly, right hand, standard wheel base tractors

1шт.

3

A143876

ROD

END - rod, left hand, standard wheel base tractors

1шт.

4

F22580

NUT

- hex, special, standard wheel base tractors

1шт.

5

A162214

BALL

JOINT - ball, left hand, standard wheel base tractors

1шт.

6

A43369

CLAMP

- tie rod, standard wheel base tractors

2шт.

7

A145846

SPACER

- tie rod clamp, standard wheel base tractors

2шт.

8

26-648

BOLT,Hex, 3/8" - 16 x 3", Gr 8

- hex, 3/8 NC x 3 inch, grade 8, standard wheel base tractors

2шт.

9

131-52

NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC, standard wheel base tractors

2шт.

10

A160642

COVER

- dust, standard wheel base tractors

2шт.

11

425-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex, slotted, 5/8 inch NF, grade 5, standard wheel base tractors

2шт.

12

132-335

COTTER PIN,1/8" x 1 1/4"

1/8" x 1-1/4", standard wheel base tractors

2шт.

1

A149033

TUBE

- tie rod, 108 inch wheel base tractors

1шт.

2

A160197

ROD

END - rod and ball assembly, right hand, 108 inch wheel base tractors

1шт.

3

A143876

ROD

END - rod, left hand, 108 inch wheel base tractors

1шт.

4

F22580

NUT

- hex, special, 108 inch wheel base tractors

1шт.

5

A162214

BALL

JOINT - ball, left hand, 108 inch wheel base tractors

1шт.

6

A43369

CLAMP

- tie rod, 108 inch wheel base tractors

2шт.

7

A145845

SPACER - tie rod clamp, 108 inch wheel base tractors

2шт.

8

26-648

BOLT,Hex, 3/8" - 16 x 3", Gr 8

- hex, 3/8 NC x 3 inch, grade 8, 108 inch wheel base tractors

2шт.

9

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8 inch NC, 108 inch wheel base tractors

2шт.

10

A160642

COVER

- dust, 108 inch wheel base tractors

2шт.

11

425-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex, slotted, 5/8 inch NF, grade 5, 108 inch wheel base tractors

2шт.

12

132-335

COTTER PIN,1/8" x 1 1/4"

1/8" x 1-1/4", 108 inch wheel base tractors

2шт.
