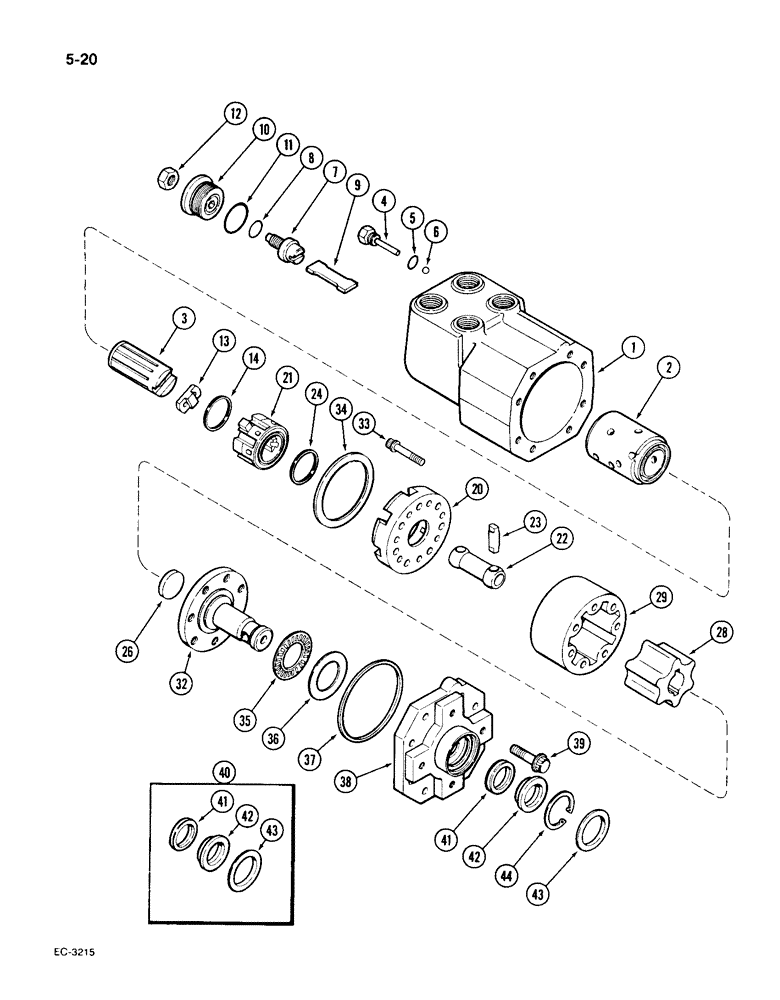

Запчасти Case IH 1896 (5-20) - HYDROSTATIC STEERING PUMP, TRW, FOUR WHEEL DRIVE TRACTORS (05) - STEERING
№
Артикул
Название
Примечание
Количество
A162639
PUMP
ASSEMBLY - steering (Replaced by 1978332C1), Includes: Ref. 1 - 44
1шт.
1
NSS
NOT SOLD SEPARAT
BODY - housing (Order A162639)
1шт.
2
NSS
NOT SOLD SEPARAT
SLEEVE - valve (Order A162639)
1шт.
3
NSS
NOT SOLD SEPARAT
SPOOL - valve (Order A162639)
1шт.
4
A47019
PLUG
PIN - guide, Includes: Ref. 5
1шт.
5
218-5002
O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro
3-1, .301" ID x .064" Thk, 3/16 inch O.D. tube
1шт.
6
211-207
BALL
- 9/32 inch, grade 25, chrome alloy steel
1шт.
7
A45194
ADJUSTMENT SCREW
SCREW ASSEMBLY - adjusting, Includes: Ref. 8
1шт.
8
A45195
O-RING,0.556" ID x 0.073"
- adjusting screw
1шт.
9
A45196
FAN
BLADE - torsion
2шт.
10
A47006
PLUG
ASSEMBLY - adjusting screw, Includes: Ref. 11
1шт.
11
A47005
O-RING,1.053" ID
- adjusting screw plug
1шт.
12
86585245
SPECIAL NUT,JAM, 5/8" - 18
- hex jam, 3/8 inch NF
1шт.
13
A47668
RING
- drive
1шт.
14
A47421
SEALING RING
RING ASSEMBLY - seal
1шт.
A47419
MANIFOLD
ASSEMBLY - pump, Includes: Ref. 20 and 21
1шт.
20
NSS
NOT SOLD SEPARAT
MANIFOLD - pump (Order A47419)
1шт.
21
NSS
NOT SOLD SEPARAT
COMMUTATOR - pump (Order A47419)
1шт.
22
A48140
LINK
- drive
1шт.
23
F19636
PIN
- lock
2шт.
24
A47421
SEALING RING
RING ASSEMBLY - seal
1шт.
26
A48141
SPACER
- rotor
1шт.
NLS
NO LONGER SERVICED
ROTOR SET - pump, Includes: Ref. 28 and 29
1шт.
28
NSS
NOT SOLD SEPARAT
ROTOR - pump (Order A48139)
1шт.
29
NSS
NOT SOLD SEPARAT
STATOR - pump (Order A48139)
1шт.
32
A48138
SHAFT
- input
1шт.
33
A48132
SCREW,1/4" x 1 5/8"
- cap, manifold, stator and shaft
7шт.
34
A160850
WASHER
- manifold
1шт.
35
T36441
THRUST BEARING,1.127" ID x 1.74" OD x 0.0781"
BEARING - needle, thrust
1шт.
A48143
WASHER
KIT - thrust washers, Includes: Ref. 36
1шт.
36
NSS
NOT SOLD SEPARAT
WASHER - thrust, 0.047 inch (1.19 mm) (Order A48143)
1шт.
36
NSS
NOT SOLD SEPARAT
WASHER - thrust, 0.053 inch (1.35 mm) (Order A48143)
1шт.
36
NSS
NOT SOLD SEPARAT
WASHER - thrust, 0.059 inch (1.50 mm) (Order A48143)
1шт.
36
NSS
NOT SOLD SEPARAT
WASHER - thrust, 0.065 inch (1.65 mm) (Order A48143)
1шт.
36
NSS
NOT SOLD SEPARAT
WASHER - thrust, 0.071 inch (1.80 mm) (Order A48143)
1шт.
36
NSS
NOT SOLD SEPARAT
WASHER - thrust, 0.077 inch (1.96 mm) (Order A48143)
1шт.
36
NSS
NOT SOLD SEPARAT
WASHER - thrust, 0.083 inch (2.11 mm) (Order A48143)
1шт.
36
NSS
NOT SOLD SEPARAT
WASHER - thrust, 0.089 inch (2.30 mm) (Order A48143)
1шт.
36
NSS
NOT SOLD SEPARAT
WASHER - thrust, 0.095 inch (2.41 mm) (Order A48143)
1шт.
36
NSS
NOT SOLD SEPARAT
WASHER - thrust, 0.101 inch (2.57 mm) (Order A48143)
1шт.
37
A47004
RING
- seal, upper cover
1шт.
38
A47016
COVER
- upper, pump
1шт.
39
A48131
SCREW,1/4" x 1"
- cap, upper cover
8шт.
40
A47038
SEAL KIT,Pump Shaft
KIT - seal, Includes: Ref. 41 - 43
1шт.
41
NSS
NOT SOLD SEPARAT
SEAL - shaft (Order A47038)
1шт.
42
NSS
NOT SOLD SEPARAT
SEAL - spacer (Order A47038)
1шт.
43
NSS
NOT SOLD SEPARAT
SEAL - shaft (Order A47038)
1шт.
44
A21145
SNAP RING,1.25, Int, #125
Ring, Snap, 1.25", Int, #125
1шт.
