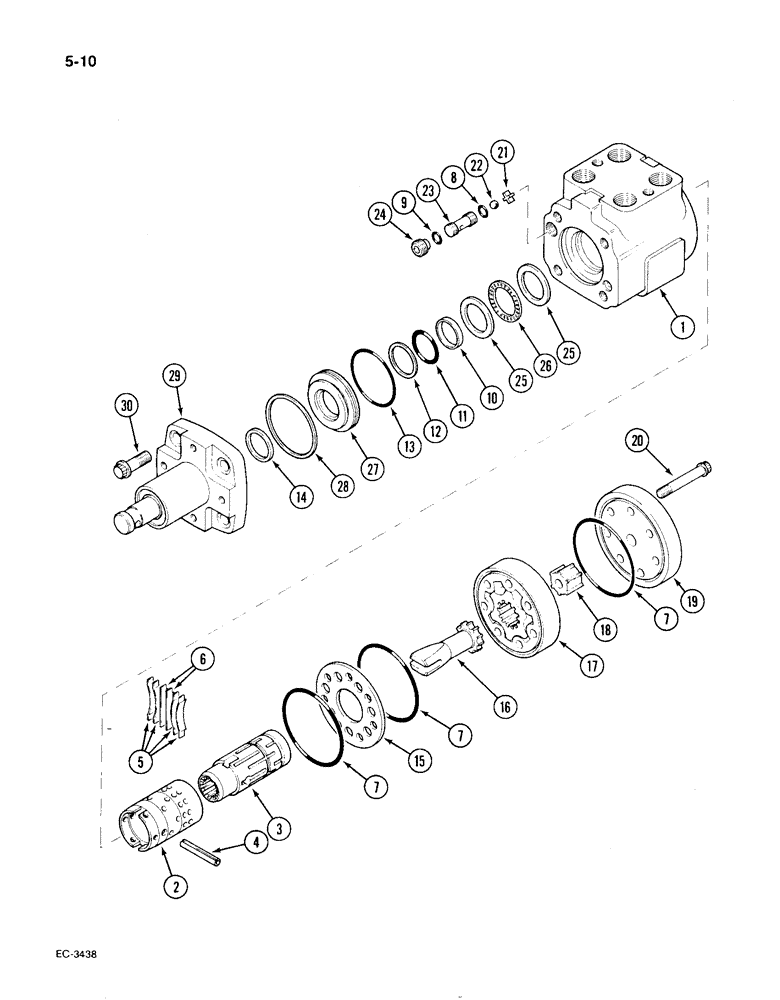

Запчасти Case IH 1896 (5-10) - HYDROSTATIC STEERING PUMP, EATON, TWO WHEEL DRIVE TRACTORS (05) - STEERING

1978330C1

PUMP

ASSEMBLY - steering (Replaces A145863), Includes: Ref. 1 - 30

1шт.

1346273C1

HOUSING ASSY.

HOUSING ASSEMBLY - pump, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - pump (Order 1246273C1)

1шт.

2

NSS

NOT SOLD SEPARAT

SLEEVE - control (Order 1346273C1)

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - control (Order 1346273C1)

1шт.

4

L30888

PIN

- centering

1шт.

N14250

KIT

- centering spring, Includes: Ref. 5 and 6

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING - centering (Order N14250)

1шт.

6

NSS

NOT SOLD SEPARAT

SPACER - spring (Order N14250)

2шт.

1343658C1

SEAL KIT

KIT - service, seals, Includes: Ref. 7 - 14

1шт.

7

N6392

O-RING,0.07" Thk x 2.864" ID, -40, Cl 5, 75 Duro

SEAL - end cap

3шт.

8

L30893

O-RING,1/16" Thk x 5/16" ID

7/16 x 5/16 x 1/16 in

1шт.

9

N8539

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

SEAL - 3/8 inch ID

1шт.

10

N13313

SEAL,25.1mm ID x 26.7mm OD x 2.6mm Thk

- teflon

1шт.

11

238-5121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

- 1-1/16 x 1-1/4 inch, class 5

1шт.

12

N13314

RING

- backup

1шт.

13

N14515

VALVE POPPET

SEAL - 1-7/8 inch ID

1шт.

14

A28211

OIL SEAL

- 1 inch ID

1шт.

15

S113037

PLATE

- spacer

1шт.

16

L30878

DRIVE SHAFT

DRIVE - gear

1шт.

17

1346275C1

GEAR

ASSEMBLY - pump

1шт.

18

1346276C1

SPACER

- gear

1шт.

19

D82809

COVER

CAP - end

1шт.

20

1346274C1

12 PT SCREW,Flg, 5/16" - 24 x 1 3/4", Gr 8

SCREW - cap, 12 point flange

7шт.

21

L35368

RETAINER

- check ball

1шт.

22

211-208

BALL,5/16" Dia

- 5/16 inch, grade 25

1шт.

23

D82806

VALVE SEAT

SEAT - check ball

1шт.

24

D82805

SET SCREW

SCREW - set

1шт.

25

D82804

RACE

- thrust bearing

2шт.

26

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST

1шт.

27

N13312

CYLINDER END CAP

BUSHING - seal gland

1шт.

28

S110169

WASHER

RING - retaining

1шт.

29

1343647C1

HOUSING

COLUMN ASSEMBLY - pump

1шт.

30

1343650C1

12 PT SCREW,Flg, 3/8" - 16 x 1", Gr 8

BOLT, 12 Pt Flg, 3/8"-16 x 1", G8

4шт.
