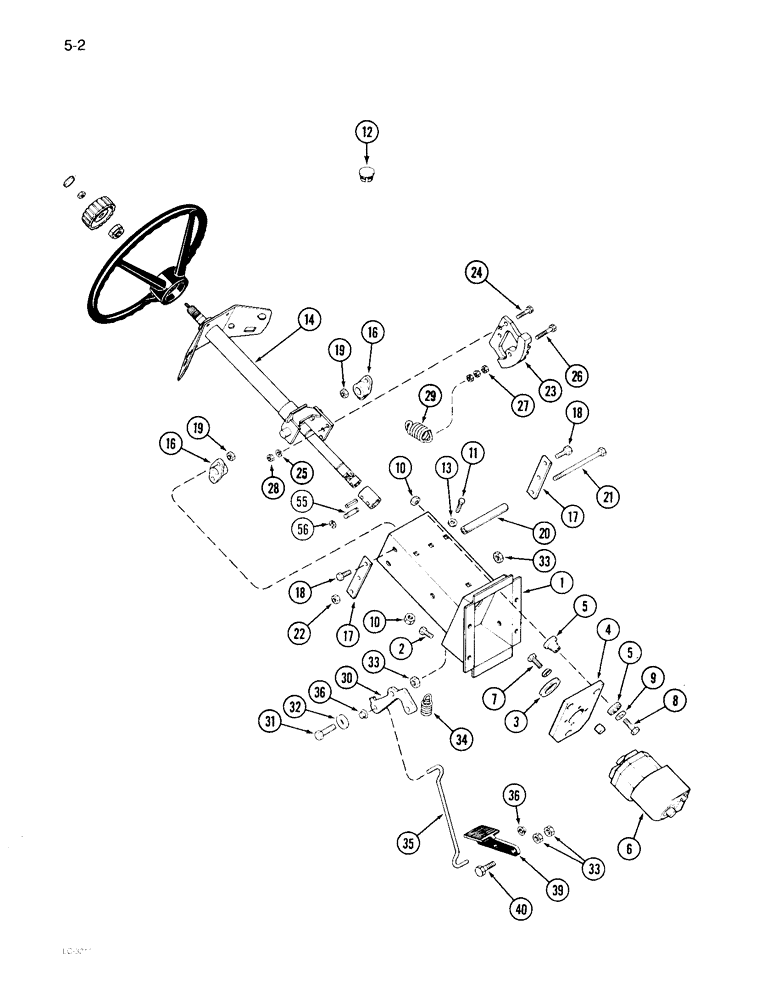

Запчасти Case IH 1896 (5-02) - STEERING WHEEL AND COLUMN (05) - STEERING

1

A167112

SUPPORT

- steering column

1шт.

2

187-1332

SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 5/8"

SCREW - hex, tapping, 3/8 NC x 5/8 inch

4шт.

3

A145915

SEAL,41.148mm ID x 57.15mm OD x 12.7mm Thk

- (steering pump mounting)

1шт.

4

A164625

PLATE

- mounting, steering pump

1шт.

5

A141515

ISOLATOR

MOUNT - steering pump

3шт.

6

1978330C1

PUMP

ASSEMBLY - steering, 2 wheel drive (See Figure 5-10) (Replaces A145863, See Figure 5-14)

1шт.

6

1346047C1

PUMP

ASSEMBLY - steering, 2 wheel drive (See Figure 5-12), Serial Range: (Optional-1978330C1)

1шт.

6

1978332C1

PUMP

ASSEMBLY - steering, 4 wheel drive (See Figure 5-16) (Replaces A162639, See Figure 5-20)

1шт.

6

1346048C1

PUMP

ASSEMBLY - steering, 4 wheel drive (See Figure 5-18), Serial Range: (Optional-1978332C1)

1шт.

7

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

- hex, 5/16 NC x 2-3/4 inch, grade 5 (Use with Eaton Pumps)

4шт.

7

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch, grade 5 (Use with Danfoss pumps)

4шт.

8

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

9

195-524

WASHER,5/16"

- flat, 3/8 x 1-1/8 x 1/16 inch

3шт.

10

131-133

NUT,Ret, 3/8"-16

Tinnerman Ret, 3/8"-16

2шт.

11

281-44910

SELF-TAP SCREW,Hex Wash Hd, 3/8" x 5/8"

SCREW - tapping, hex washer, 3/8 NC x 5/8 inch

2шт.

12

A162961

PLUG

- cable

1шт.

13

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

14

A169342

STEERING COLUMN

COLUMN ASSEMBLY - steering (See Figure 5-6)

1шт.

16

A77310

SUPPORT,0.754" ID x 1.375" OD x 0.81"

- column pivot

2шт.

17

A143314

STRAP

- support brace

2шт.

18

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

19

131-1281

LOCK NUT,Jam, 5/16"-18

NUT - hex lock, 5/16 inch NC

4шт.

20

A143315

BUSHING

SPACER - column support

1шт.

21

413-596

BOLT,Hex, 5/16" - 18 x 6", Gr 5

- hex, 5/16 NC x 6 inch, grade 5

1шт.

22

425-145

JAM NUT,Jam, 5/16"-18, G5

1шт.

23

A169439

PLATE

QUADRANT - column tilt

1шт.

24

121-241

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4"

- hex, 3/8 NC x 1-1/4 inch

3шт.

25

492-11038

LOCK WASHER,3/8"

3шт.

26

121-242

BOLT,Hex Flg, 3/8"-16 x 2", Serr

1шт.

27

131-940

NUT,Flg, USR, 3/8"-16

- hex flange, 3/8 inch NC

1шт.

28

425-106

NUT,3/8"-16, Cl 5

3шт.

29

A143316

SPRING

- tilt return

1шт.

30

A169260

LATCH

- column tilt

1шт.

31

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

32

195-106

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

1шт.

33

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

34

A64125

SPRING

- tilt latch

1шт.

35

A164787

ROD

- tilt latch

1шт.

36

A165668

CAP

NUT - push-on type

2шт.

39

A165426

PEDAL

- steering tilt

1шт.

40

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

Continued on Figure 5-04 Hex, 1/2"-13 x 1 1/2", G5, Full Thd

1шт.
