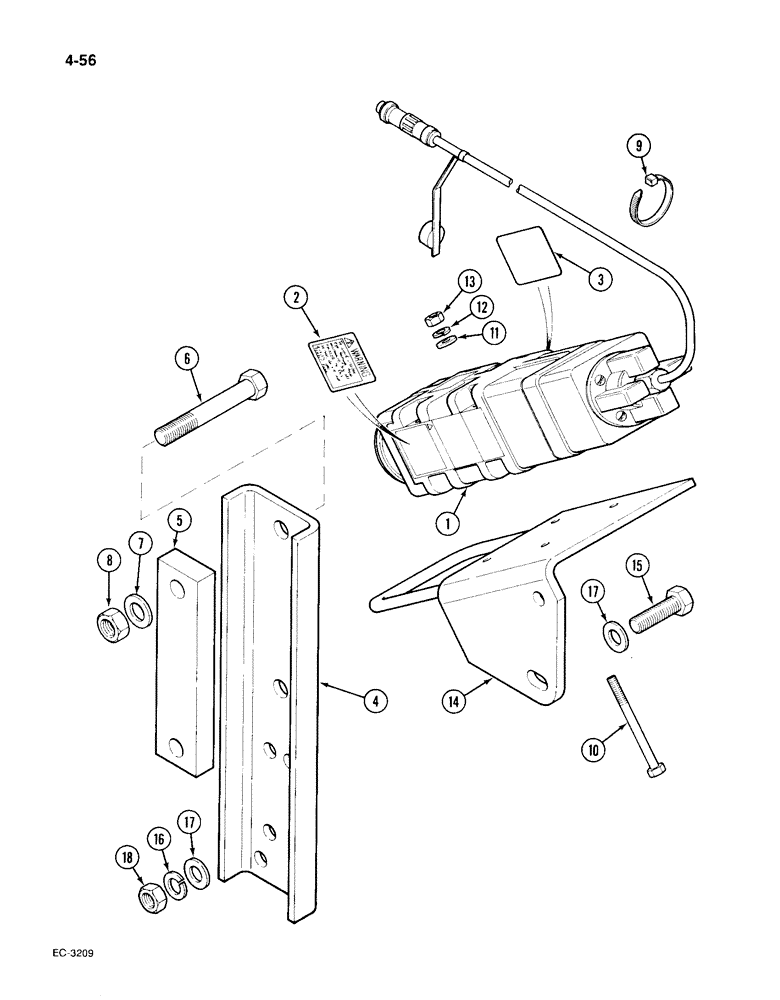

Запчасти Case IH 1896 (4-56) - GROUND SPEED SENSOR (04) - ELECTRICAL SYSTEMS

1

1983296C1

SENSOR - true ground speed (United Kingdom), Includes: Ref. 2 and 3

1шт.

2

A187743

WARNING DECAL

DECAL - warning, microwave signals (English)

1шт.

1

1983295C1

SENSOR

- true ground speed, Includes: Ref. 2

1шт.

2

A187743

WARNING DECAL

DECAL - warning, microwave signals (English)

1шт.

3

A187756

DECAL

- warning, microwave signals (French)

1шт.

4

A187705

BRACKET - radar mounting

1шт.

5

A167577

PLATE

- radar clamp

1шт.

6

814-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 8.8

2шт.

7

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

Flat M16 x 30 x 3

6шт.

8

30583R1

NUT,M16, Cl 10

- hex, 16 mm

2шт.

9

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, nylon 8 inch

3шт.

9

A169433

CABLE TIE,304.8mm L

STRAP, tie, nylon, 12 inch

1шт.

10

413-464

BOLT,Hex, 1/4" - 20 x 4", Gr 5

4шт.

11

195-518

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 3/64 inch

4шт.

12

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

13

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, grade 5

4шт.

14

1960847C2

SUPPORT

BRACKET - speed sensor

1шт.

15

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

16

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm

2шт.

17

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

4шт.

18

825-1110

NUT,M10, Cl 8

- hex, 10 mm, class 8

2шт.
