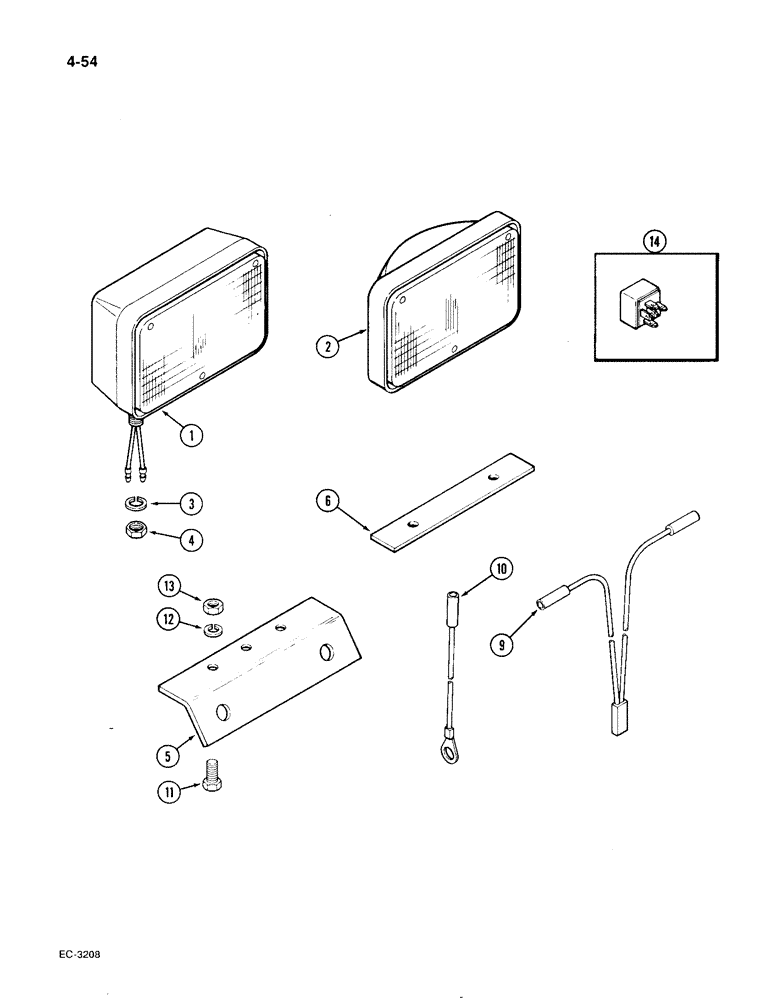

Запчасти Case IH 1896 (4-54) - FLOOD LAMP ATTACHMENT, LOWER FRONT (04) - ELECTRICAL SYSTEMS

A165462

LIGHT

KIT - front lower flood lamp, Includes: Ref. 1 - 14

1шт.

1

A165192

LAMP

- flood, Includes: Ref. 2

2шт.

2

A48265

LAMP

- sealed halogen unit

1шт.

3

D37049

WASHER

- mounting

2шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

5

A160889

BRACKET

- mounting

2шт.

6

A22837

BUSHING

SPACER - step, rear

2шт.

9

A147345

HARNESS

- lights, front flood

1шт.

10

A147343

ELECTRICAL WIRE

WIRE - ground

2шт.

11

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

12

492-11038

LOCK WASHER,3/8"

4шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

14

A147176

RELAY

- 30 amp

1шт.
