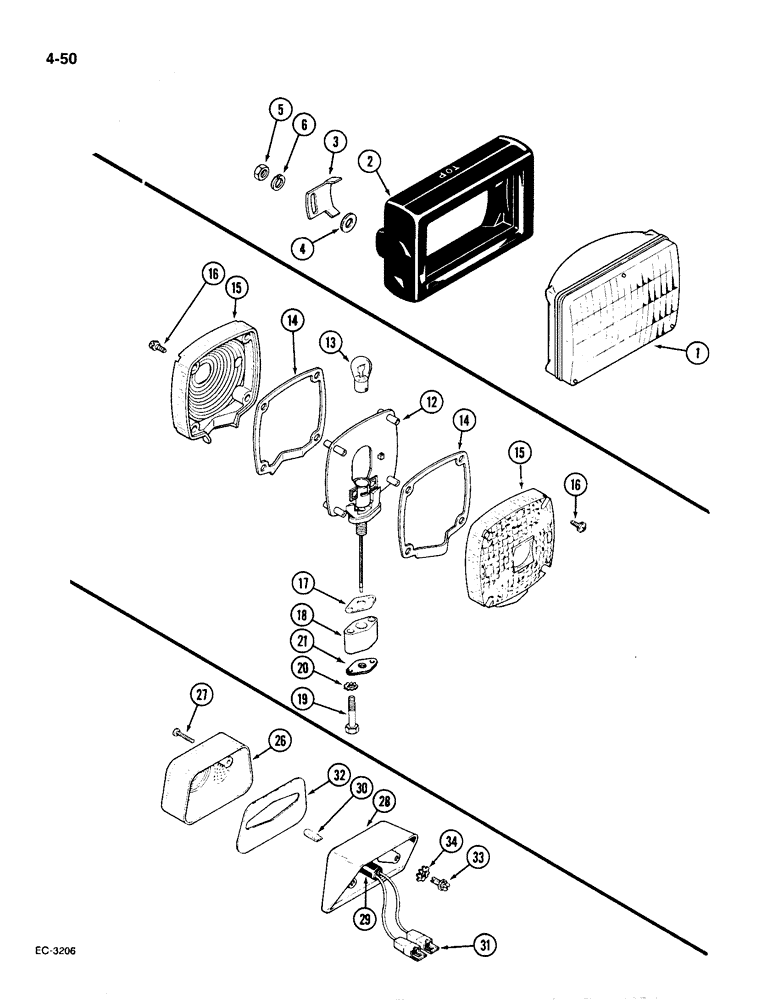

Запчасти Case IH 1896 (4-50) - HEAD, FLASHER AND TAIL LIGHTS (04) - ELECTRICAL SYSTEMS

1

A139458

LAMP

LIGHT - head, sealed unit (No. 4652)

2шт.

2

A146354

MOUNTING PARTS

MOUNT - rubber, head lights

2шт.

3

A146355

CLAMP

CLIP - mounting, head lights

4шт.

4

195-518

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 1/16 inch, head lights

4шт.

5

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, grade 5, head lights

4шт.

6

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Head lights 1/4"

4шт.

F89713

INDICATOR LIGHT

LIGHT - warning flasher, Includes: Ref. 12 - 17

2шт.

12

NSS

NOT SOLD SEPARAT

BODY - light, flasher

1шт.

13

A41264

BULB,#1156, 12V

Lamp, Flasher lights #1156, 12V

1шт.

14

A43731

GASKET

- sealing, lens, flasher lights

2шт.

15

F63434

LENS

- amber, turn signal light, flasher

2шт.

16

187-1083

SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"

SCREW - round head x-recess, No. 8-32 x 3/4 inch, flasher lights

8шт.

17

F63435

GASKET

- base, lamp mounting, flasher lights

1шт.

18

F64683

SPACER

- mounting, flasher lights

2шт.

19

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Flasher lights Hex, 1/4"-20 x 1 1/2", G5

4шт.

20

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - lock, internal/external, 1/4 inch, flasher lights

4шт.

21

F63435

GASKET

- base, lamp mounting (Cab and 4 post ROPS), flasher lights

2шт.

A143925

LAMP

LIGHT - tail, Includes: Ref. 26 - 32

2шт.

26

A47056

LENS

- red, tail light

1шт.

27

263-50416

SELF-TAP SCREW,Slotted Pan Hd, #8 x 1"

SCREW - tapping,pan slotted, No. 8-18 x 1 inch, tail lights

2шт.

28

A47052

BASE

- light, tail

1шт.

29

A47054

SOCKET/RECEPTACLE

SOCKET - tail light (Includes terminal)

1шт.

30

D71346

TAIL LAMP,12V

BULB - light, No. 168, tail

1шт.

31

223-166

CONNECTOR, ELEC

CONNECTOR - female, tail lights

2шт.

32

A47055

GASKET

- tail light

1шт.

33

281-34710

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 5/8"

SCREW - tapping, hex washer, 1/4 NC x 5/8 inch, tail lights

4шт.

34

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - lock, internal/external, 1/4 inch, tail lights

4шт.
