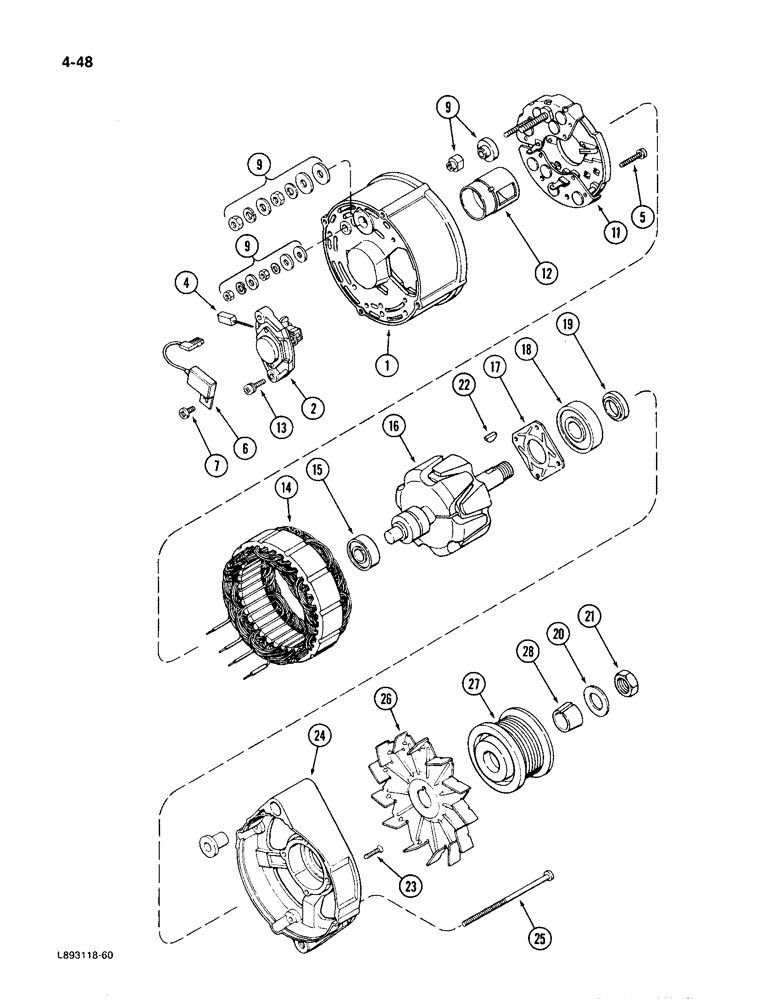

Запчасти Case IH 1896 (4-48) - ALTERNATOR, BOSCH 65 AMP (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
A187873
ALTERNATOR,12V, 65A
ALTERNATOR ASSEMBLY - electrical, 65 ampere, Includes: Ref. 1 - 25
1шт.
AR187873
REMAN-ALTERNATOR
Reman for New PN A187873
1шт.
AC187873
CORE-ALTERNATOR
Return Number
1шт.
A187873GV
ALTERNATOR
Value, 65 Amp
1шт.
146466C91
ALTERNATOR
Alternator, 12 VOLT, 80 AMP
1шт.
104023A1R
REMAN-ALTERNATOR
Remanufactured 12 VOLT, 80 AMP Alternator
1шт.
104023A1C
CORE-ALTERNATOR
Return Number, 12 VOLT, 80 AMP Alternator
1шт.
1
A187903
COVER
HOUSING - collector ring end
1шт.
4
1964968C1
COMMUTATOR BRUSH
BRUSH ASSEMBLY - alternator
1шт.
5
A187898
SCREW
BOLT - retaining, with washer
2шт.
7
1964969C1
SCREW
SCREW - capacitor retaining
1шт.
9
A187904
MULTIPOLE CONNECTOR
SET - hardware, terminal
1шт.
11
A187917
RECTIFIER
BRIDGE - rectifier, alternator
1шт.
13
A187907
CAPTIVE WASHER SCREW
BOLT - retaining, with washer
2шт.
14
1964966C1
STATOR
STATOR ASSEMBLY - alternator
1шт.
15
A187908
BALL BEARING,12 mm ID x 32 mm OD x 10 mm
BEARING - ball, rotor, collector ring end
1шт.
16
1964964C1
ROTOR
ROTOR ASSEMBLY - alternator
1шт.
17
A187901
FIXING PLATE
PLATE - bearing retaining
1шт.
18
A186183
BALL BEARING,17 mm ID x 47 mm OD x 14 mm
BEARING - ball, rotor, drive end
1шт.
3078897R1
SET OF PARTS
KIT - rotor retaining, Includes: Ref. 19 - 23
1шт.
19
NSS
NOT SOLD SEPARAT
RING - spacer
1шт.
20
NSS
NOT SOLD SEPARAT
WASHER - lock, rotor shaft
1шт.
21
NSS
NOT SOLD SEPARAT
NUT - rotor shaft
1шт.
22
NSS
NOT SOLD SEPARAT
KEY - pulley retainer
1шт.
23
NSS
NOT SOLD SEPARAT
SCREW - bearing retaining plate
1шт.
24
A186182
HOUSING
HOUSING - drive end
1шт.
25
A186193
BOLT,Pan, Cross Recess Phillips, M5 x 110mm
BOLT - cover retaining
4шт.
26
221425R1
FAN
FAN - alternator
1шт.
27
J908560
PULLEY
PULLEY - alternator
1шт.
28
J908563
RETAINER
RETAINER - alternator pulley
1шт.
Выбрано товаров: 33
