Запчасти Case IH 1896 (4-42) - STARTER ASSEMBLY, NIPPONDENSO NO. 028000-7430 (04) - ELECTRICAL SYSTEMS

A162469

STARTING MOTOR

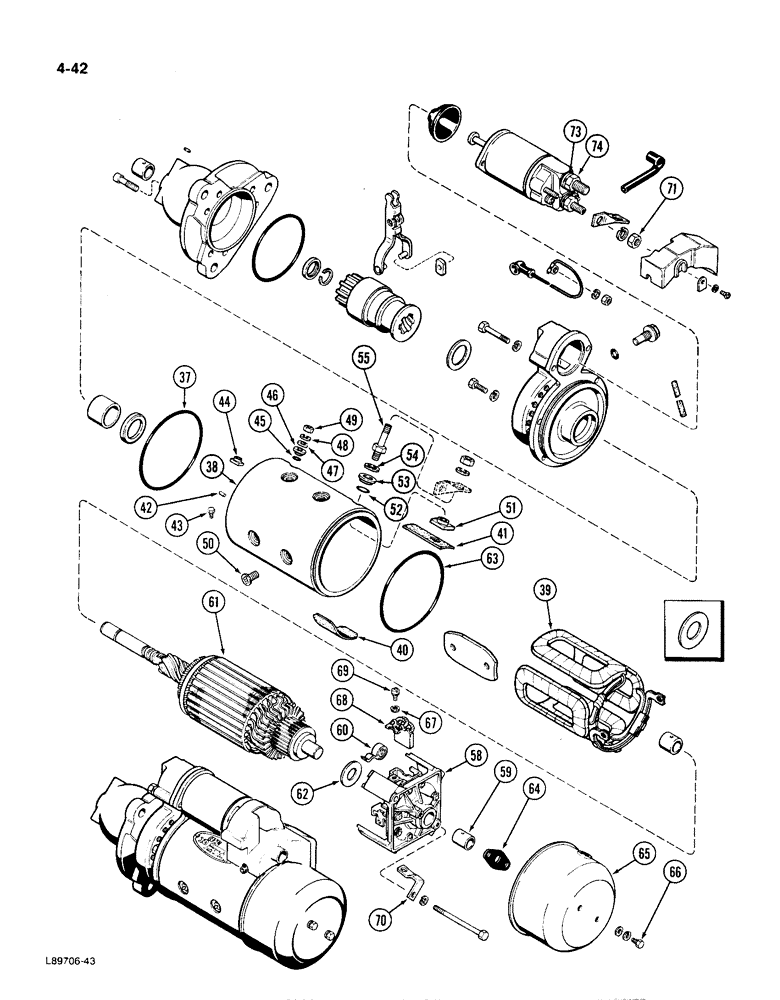

STARTER ASSEMBLY - engine, (Continued from Figure 4-40), Includes: Ref. 37 - 74 and 2 - 33 on figure 4-40

1шт.

37

A47820

O-RING

- yoke to center bearing

1шт.

38

A47821

YOKE

ASSEMBLY - field coil, Includes: Ref. 39 - 55

1шт.

39

A47822

COIL

ASSEMBLY - field

1шт.

40

A47833

INSULATOR

- field

1шт.

41

A47832

INSULATOR

- field

1шт.

42

A47824

PIN

- dowel, yoke

1шт.

43

814-5010

BOLT,Hex, M5 x 0.8 x 10mm, Cl 8.8, Full Thd

- hex, 5 mm x 10 mm

1шт.

44

A47825

BUSHING

- terminal insulating, inner

1шт.

45

A47826

RING

O-RING - terminal

1шт.

46

A47827

BUSHING

- terminal insulating, outer

1шт.

47

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 1/16 inch

1шт.

48

892-1105

LOCK WASHER,M5

WASHER - lock, 5 mm

2шт.

49

825-1405

NUT,M5, Cl 8

1шт.

50

A47823

SCREW,M10 x 1.5 x 1.5mm

- flat head, 10 mm x 20 mm

8шт.

51

A47829

BUSHING

- inner, terminal insulating

1шт.

52

A47830

RING

O-RING - terminal

1шт.

53

A47831

BUSHING

- outer, terminal insulating

1шт.

54

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

1шт.

55

A47828

BOLT

- terminal

1шт.

58

A47814

FRAME

ASSEMBLY - end, commutator, Includes: Ref. 59 and 60

1шт.

59

A47784

BUSHING

- drive housing

1шт.

60

A47815

SPRING

- brush

4шт.

61

A47812

ARMATURE

ASSEMBLY - starter

1шт.

62

A47813

WASHER

- end, armature

1шт.

63

39738

O-RING,4.609" ID x 0.139" Width

- end cover

1шт.

64

A47835

GASKET

- end cover

1шт.

65

A47834

COVER

- end, starter

1шт.

66

814-5010

BOLT,Hex, M5 x 0.8 x 10mm, Cl 8.8, Full Thd

- hex, 5 mm x 10 mm

2шт.

67

892-1116

LOCK WASHER,M16

WASHER - lock, 6 mm

2шт.

68

A47817

BRUSH, COMMUTATOR

BRUSH - starter

4шт.

69

A47816

SCREW,Pan Cross, M5 x 0.8 x 12mm

- slotted, 5 mm x 12 mm

4шт.

70

A47818

CONNECTOR, ELEC

CONNECTOR - brush

2шт.

71

425-146

JAM NUT,3/8" - 16, Gr 5

- hex jam, 3/8 inch NC, grade 5

1шт.

73

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

74

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.
