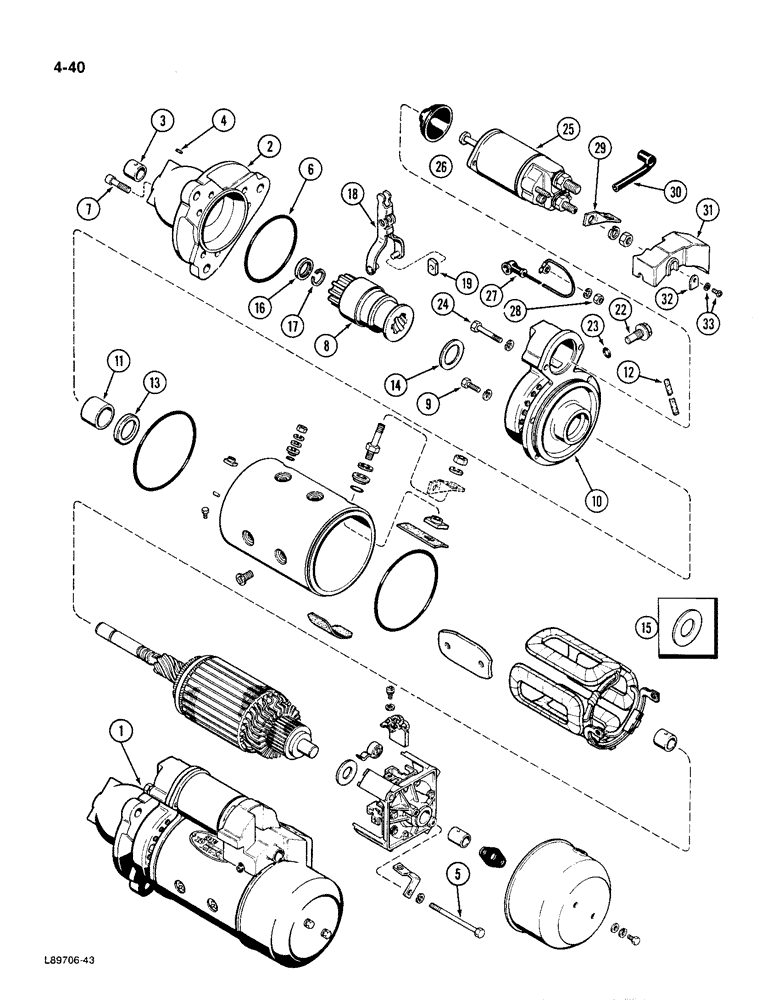

Запчасти Case IH 1896 (4-40) - STARTER ASSEMBLY, NIPPONDENSO NO. 028000-7430 (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
A162469
STARTING MOTOR
STARTER ASSEMBLY - engine, Nippondenso No. 028000-7430, Includes: Ref. 2 - 33 and 37 - 74 on Figure 4-42
1шт.
Some tractors have a Bosch starter P/N 187924 with solenoid P/N 1983365C1. See cat 8-4331 Fig. 4-36 for other Bosch starter components.
1шт.
2
A47783
HOUSING
ASSEMBLY - drive, Includes: Ref. 3 and 4
1шт.
3
A47784
BUSHING
- drive housing
1шт.
4
A47785
PLUG
- housing cover
1шт.
5
A47819
BOLT
- hex through, 7 mm x 86 mm
2шт.
6
A47786
SEAL
O-RING - housing
1шт.
7
A47787
BOLT
- special, 8 mm x 31 mm
6шт.
8
A47788
CLUTCH
ASSEMBLY - drive
1шт.
9
A47809
BOLT
- hex, 7 mm x 20 mm
5шт.
10
A47805
HOUSING
- bearing, center, Includes: Ref. 11 - 13
1шт.
11
A47806
BUSHING
- bearing, center
1шт.
12
A47807
FELT
- bearing, oil
1шт.
13
A47808
OIL SEAL
- oil
1шт.
14
A47811
WASHER
- backup, oil seal
1шт.
15
A47810
WASHER
- brake
1шт.
16
A47789
COLLAR
- stop, pinion
1шт.
17
A47790
RING, SNAP
RING - snap, collar to shaft retaining
1шт.
18
A47791
LEVER
ASSEMBLY - drive, starter, Includes: Ref. 19
1шт.
19
A47792
RING
- drive lever
2шт.
22
A47793
BOLT
- pivot
1шт.
23
A47794
RING,11 mm ID
O-RING - pivot bolt, drive lever
1шт.
24
A47795
BOLT
- hex, 6 mm x 42 mm
2шт.
25
A47796
SWITCH
ASSEMBLY - magnetic, Includes: Ref. 26 - 28
1шт.
A187795R
REMAN-SOLENOID
1896 (S/N 17895000 THRU 002 & UP) NIPPONDENSO NO. 028000-7430 (1/84-12/86), Reman For New P/N A47796
1шт.
A187795C
CORE-SOLENOID
Return Number
1шт.
26
A47797
COVER
- switch, magnetic
1шт.
27
A47798
ELECTRICAL WIRE
WIRE - lead
1шт.
28
A47799
NUT
- hex special, No. 10
1шт.
29
A47800
CONNECTOR, ELEC
CONNECTOR - terminal
1шт.
30
A47801
TUBE
- drain, switch
1шт.
31
A47802
COVER
- terminal
1шт.
32
A47803
PLATE
- terminal cover
1шт.
33
A47804
SCREW,M4 x 0.7 x 0.7mm
- plate retaining, 4 x 9 mm Continued on Figure 4-42
1шт.
Выбрано товаров: 34
