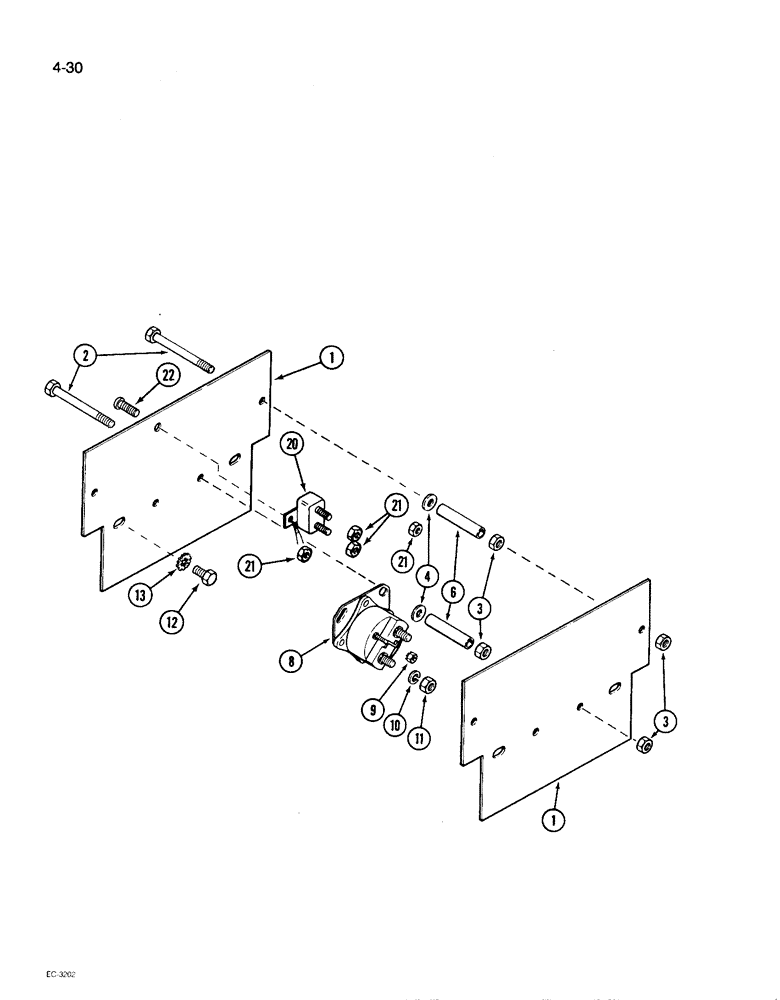

Запчасти Case IH 1896 (4-30) - SOLENOID AND CIRCUIT BREAKER (04) - ELECTRICAL SYSTEMS

1

A186205

PLATE

- solenoid and circuit breaker

2шт.

2

413-448

BOLT,Hex, 1/4" - 20 x 3", Gr 5

- hex, 1/4 NC x 3 inch, grade 5

4шт.

3

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

8шт.

4

195-518

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 3/64 inch

4шт.

6

A176895

SPACER

- solenoid cover (Replaces R25287)

4шт.

8

A39079

SOLENOID

- ignition

1шт.

9

193-1000

NUT,Keps, w/LW,#10-32

- hex keps, No. 10

1шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

11

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, grade 5

2шт.

12

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch, grade 5

2шт.

13

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

2шт.

20

92057C1

CIRCUIT-BREAKER

BREAKER - circuit, 50 amp (Replaces A165723)

1шт.

21

131-47

LOCK NUT,Prev Torque, Hex, #10 - 32, Gr B

NUT - hex lock, no. 10-32

3шт.

22

173-237

SCREW,Sl Rnd Hd, #10 - 32 x 1/2"

- slotted round head, No. 10 x 1/2 inch

1шт.
