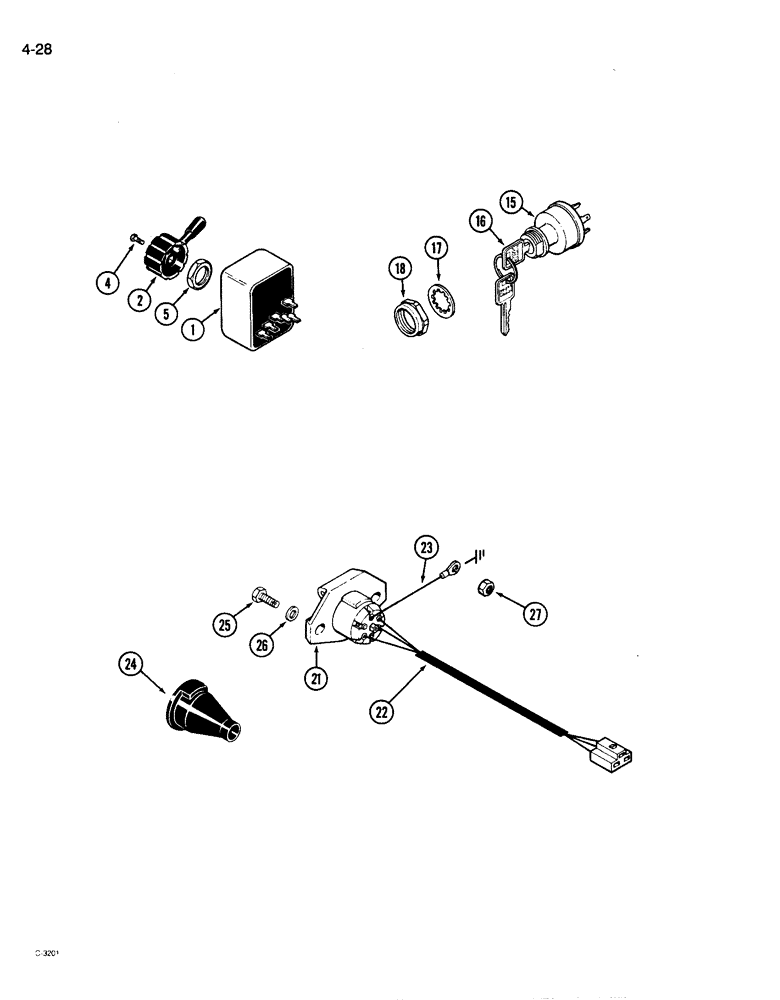

Запчасти Case IH 1896 (4-28) - ELECTRICAL EQUIPMENT MOUNTING (04) - ELECTRICAL SYSTEMS

1536292C1

KIT

- flasher unit, combination light switch, Includes: Ref. 1 - 5

1шт.

1

A77184

SWITCH

- combination, turn signal and flasher, light

1шт.

2

A177140

KNOB

- combination switch, light

1шт.

4

170-104

SCREW,Sl Pan Hd, #5 - 40 x 3/8"

- pan head, No. 5-48 x 3/8 inch, combination light switch

1шт.

5

131-428

LOCK NUT,PAL, 3/4"-20

NUT - special, 3/4-20 inch, combination light switch

1шт.

15

A77312

SWITCH

- ignition (Replaces L61053)

1шт.

16

A77313

SET OF 2 KEYS

KEY - ignition (Set of 2), switch

1шт.

17

193-108

LOCK WASHER,Int Tooth, 1"

WASHER - lock, internal tooth, 1 inch, ignition switch

1шт.

18

A145855

NUT

- mounting, ignition switch

1шт.

A177539

FITTING

SOCKET - 7 pin, auxiliary outlet, electrical, Includes: Ref. 21 - 24

1шт.

21

A145795

CONNECTOR, ELEC

CONNECTOR - socket, 7 pin, auxiliary electrical outlet

1шт.

22

A177485

HARNESS

- auxiliary outlet, electrical

1шт.

23

A163117

ELECTRICAL WIRE

CABLE - ground, auxiliary outlet, electrical

1шт.

24

A169283

BOOT

- protection, auxiliary electrical outlet

1шт.

25

187-1030

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

SCREW - tapping,hex head, 5/16 NC x 3/4 inch, auxiliary electrical outlet

2шт.

26

195-521

WASHER,5/16", SAE

- flat, 11/32 x 11/16 x 3/64 inch, auxiliary electrical outlet

2шт.

27

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, grade 5, Auxiliary electrical outlet

1шт.
