(4-26) - INSTRUMENT CLUSTER, ANALOG DISPLAY

Запчасти Case IH 1896 (4-26) - INSTRUMENT CLUSTER, ANALOG DISPLAY (04) - ELECTRICAL SYSTEMS

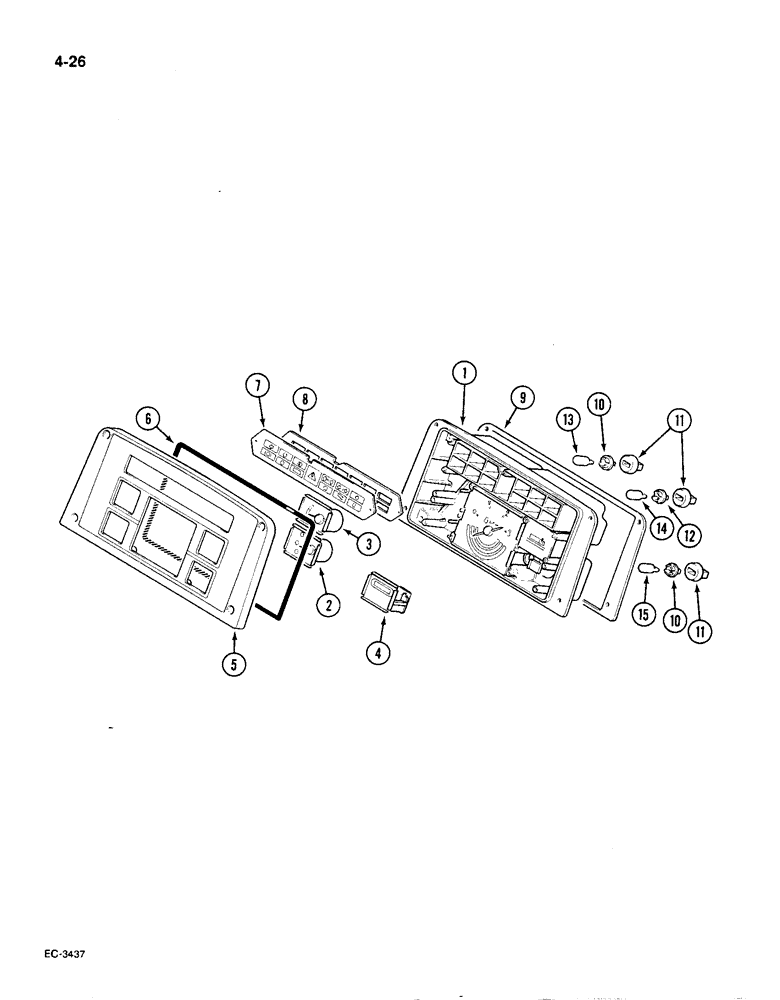

Схема запчастей Case IH 1896 - (4-26) - INSTRUMENT CLUSTER, ANALOG DISPLAY (04) - ELECTRICAL SYSTEMS
2
13
3
15
14
9
8
10
6
11
12
1
4
10
5
11
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1983208C1

CLUSTER, INSTR.

CLUSTER - analog instrument display, Includes: Ref. 1 - 15

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - instrument cluster

1шт.

2

NSS

NOT SOLD SEPARAT

GAUGE - fuel

1шт.

3

1983311C1

INDICATOR

GAUGE - temperature

1шт.

4

1983313C1

HOURMETER

GAUGE - hourmeter

1шт.

5

1964871C1

BEZEL

- front

1шт.

6

1964872C1

O-RING

- front bezel

1шт.

7

1983314C1

SYMBOLS

LENS - warning lights

1шт.

8

1964874C1

GASKET

- lens

1шт.

9

1964875C1

GASKET

- rear housing

1шт.

10

1964876C1

HOLDER

- bulb

16шт.

11

1964877C1

BOOT

- bulbholder

17шт.

12

1983316C1

DIODE ELEMENT

HOLDER - bulb (Indicator warning light)

1шт.

13

20627R1

BULB,C2F, #194, 14V

LAMP - 14 volt, 0.27 amp, type C-2F, trade No. 194 (Instrument cluster warning lights)

12шт.

14

26617R1

BULB,C2F, #168, 14V

LAMP - 14 volt, 0.35 amp, type C-2F, Trade No. 168 (Indicator warning light)

1шт.

15

NSS

NOT SOLD SEPARAT

LAMP - 14 volt, 0.19 amp, type C-2F, Trade No. 161 (Instrument cluster backlighting)

4шт.
