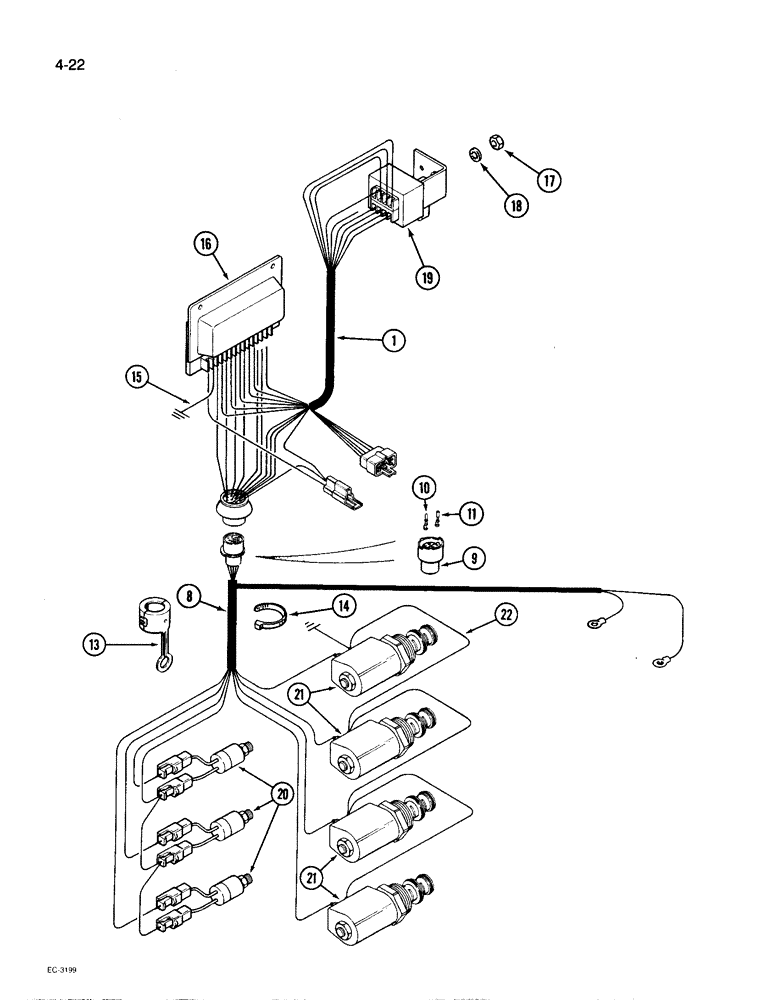

Запчасти Case IH 1896 (4-22) - ELECTRIC SHIFT HARNESS (04) - ELECTRICAL SYSTEMS

1

A177694

HARNESS

- electric shift (Internal) (Replaces A177694)

1шт.

8

A163115

HARNESS

- electric shift (External), Includes: Ref. 9 - 11

1шт.

9

A52283

SOCKET

- cable harness

1шт.

10

A52281

ELEC. TERMINAL PIN,14 - 18 SAE

TERMINAL - pin

5шт.

11

A52282

POWER SOCKET,14 - 18 SAE

TERMINAL - socket

5шт.

13

A163118

CLAMP

- harness connecting

1шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, nylon, 8 inch

1шт.

15

A163111

ELECTRICAL WIRE

CABLE - ground, relay

1шт.

16

A177703

RELAY

BOARD ASSEMBLY - relay

1шт.

17

A39888

NUT

- hex, special, 3/8-32

1шт.

18

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

19

1964842C1

SWITCH

- range, 12 speed (Replaces A180201)

1шт.

20

A156555

SWITCH

- pressure, oil pressure

3шт.

21

A160899

VALVE

ASSEMBLY - solenoid (See Figure 6-08)

4шт.

22

A156760

HARNESS

- solenoid ground

1шт.
