(4-20) - FOUR POST ROPS HARNESS

Запчасти Case IH 1896 (4-20) - FOUR POST ROPS HARNESS (04) - ELECTRICAL SYSTEMS

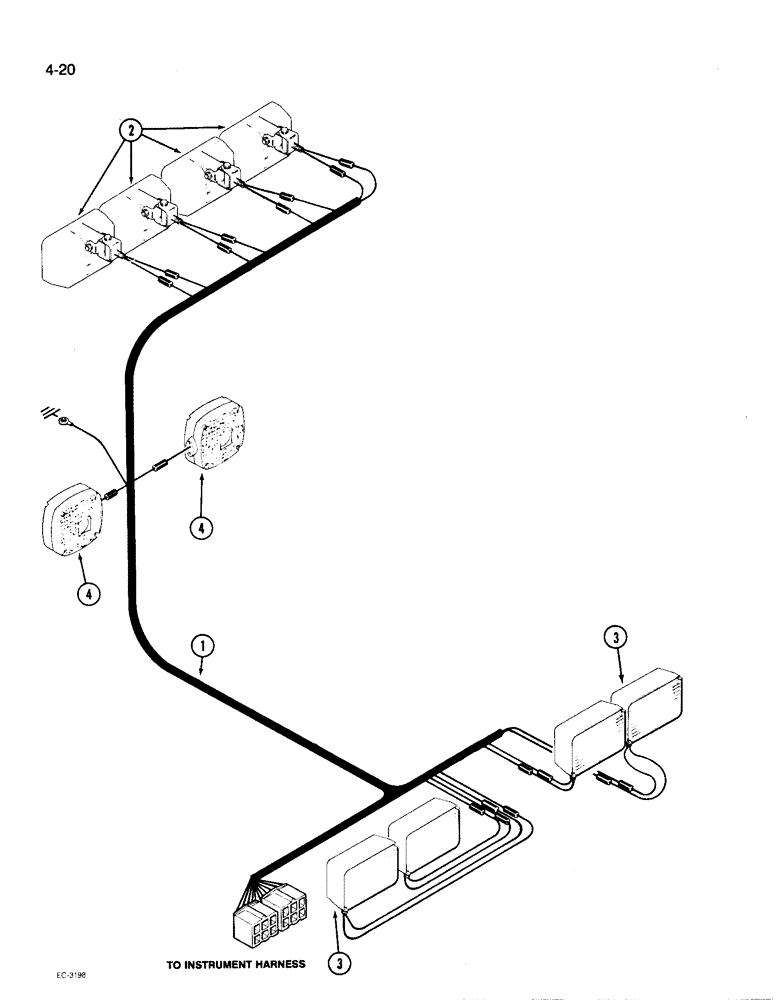

Схема запчастей Case IH 1896 - (4-20) - FOUR POST ROPS HARNESS (04) - ELECTRICAL SYSTEMS
2
1
3
4
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

F64805

HARNESS

- 4 post ROPS

1шт.

2

REF

INSTRUCTION

LIGHT - rear flood (See Figure 4-52)

1шт.

3

REF

INSTRUCTION

LIGHT - front flood (See Figure 4-52)

1шт.

4

F89713

INDICATOR LIGHT

LIGHT - warning flasher (See Figure 4-50)

2шт.
