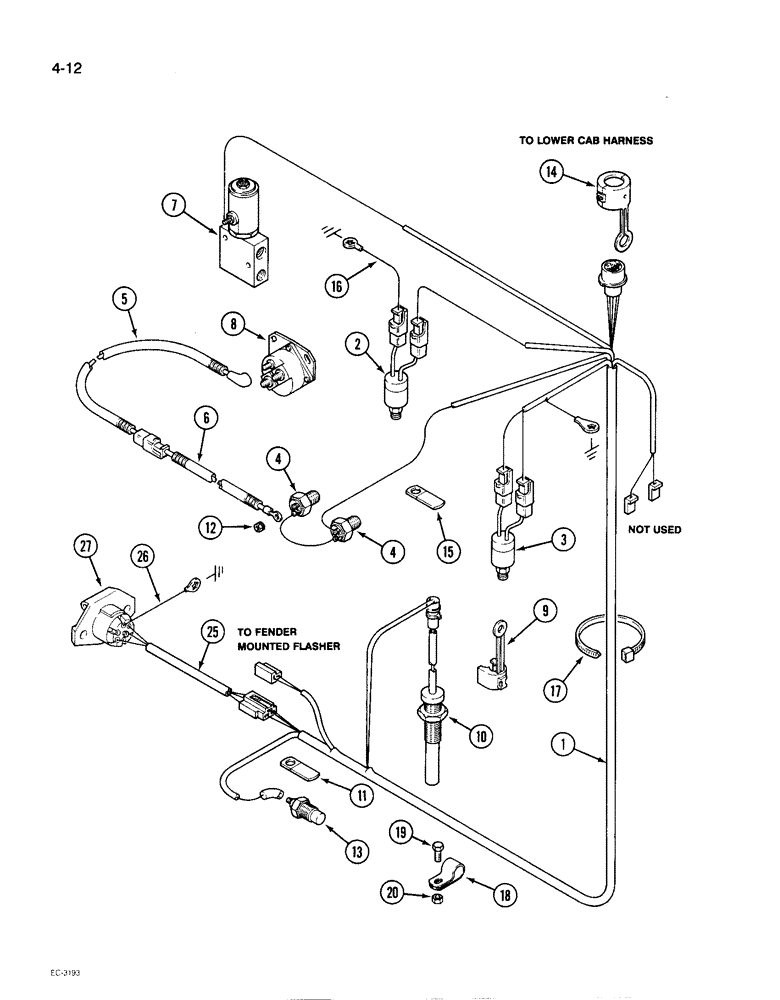

Запчасти Case IH 1896 (4-12) - TRANSMISSION HARNESS (04) - ELECTRICAL SYSTEMS

1

A176764

HARNESS

- transmission

1шт.

2

A167895

SWITCH

- pressure, 15 psi, transmission filter

1шт.

3

A162422

SWITCH

- pressure, transmission oil (Digital display)

1шт.

4

A160237

SWITCH

- neutral start

2шт.

5

A169158

ELECTRICAL WIRE

WIRE - neutral start

1шт.

6

A169157

ELECTRICAL WIRE

WIRE - ignition solenoid

1шт.

7

A176599

VALVE

- solenoid, differential lock (See Figure 7-10)

1шт.

8

A39079

SOLENOID

- ignition (See Figure 4-30)

1шт.

9

A169696

CLAMP

- connector, speed sensor

1шт.

10

A158683

TRANSMITTER

SENSOR - speed

1шт.

11

A38066

CLIP

- cable (Transmission temperature wire)

1шт.

12

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- hex, No. 8

4шт.

13

A154283

SWITCH

- transmission temperature

1шт.

14

A163118

CLAMP

- harness connecting

1шт.

15

A37179

CLIP

- cable (Neutral start switch)

1шт.

16

A167839

ELECTRICAL WIRE

WIRE - ground (Pressure switch)

11шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie,nylon, 8 inch

1шт.

18

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

CLIP - hose (Harness to PTO control cable)

1шт.

19

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

20

425-106

NUT,3/8"-16, Cl 5

1шт.

25

A177485

HARNESS

- auxiliary outlet

1шт.

26

A163117

ELECTRICAL WIRE

WIRE - ground, auxiliary outlet, harness

1шт.

27

A177539

FITTING

SOCKET - seven pin, auxiliary outlet, harness

1шт.
