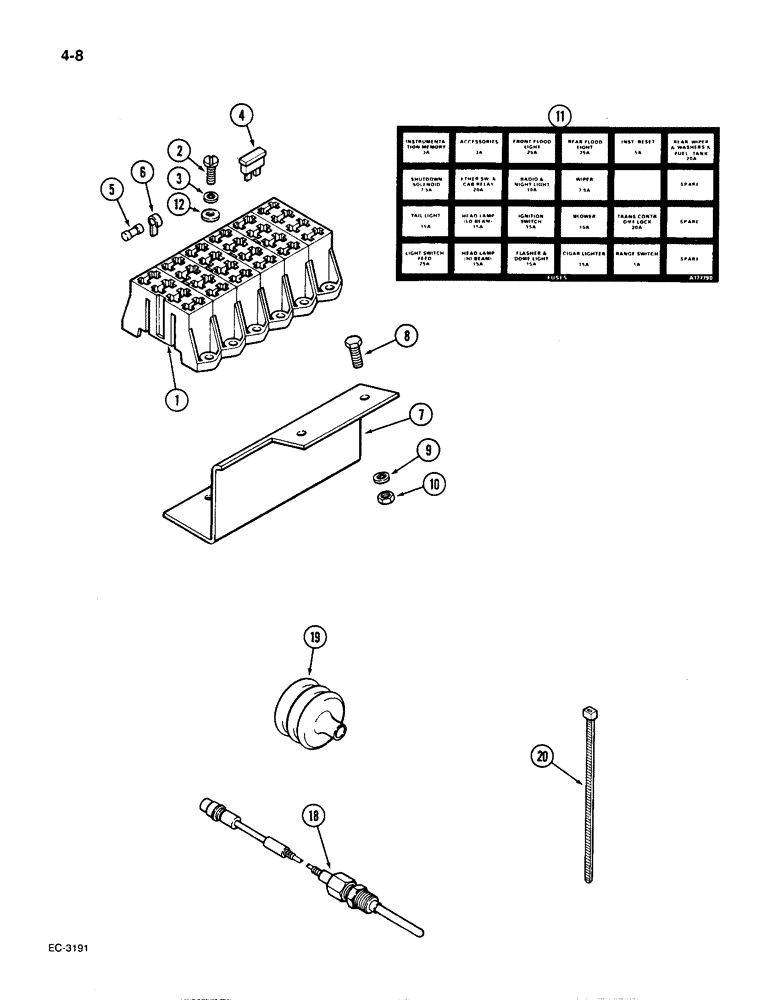

Запчасти Case IH 1896 (4-08) - FUSES AND FUSE HOLDER (04) - ELECTRICAL SYSTEMS

1

NSS

NOT SOLD SEPARAT

HOLDER - fuse (Part of instrument harness, See Figures 4-2 and 4-4)

1шт.

2

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- pan head, No. 24 x 1/2 inch

3шт.

3

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

3шт.

4

A149796

FUSE

- 3 ampere (Violet)

1шт.

4

A149798

FUSE

- 5 ampere (Tan)

1шт.

4

A149799

FUSE

- 7.5 ampere (Brown)

1шт.

4

A149800

FUSE,10 Amp

- 10 ampere (Red)

1шт.

4

A149801

FUSE,Lt Blue, 15 Amp

- 15 ampere (Light blue)

1шт.

4

A149802

FUSE

- 20 ampere (Yellow)

2шт.

4

A149803

FUSE,25 Amp

- 25 ampere (White)

4шт.

5

A163102

FUSE

- 1 ampere

1шт.

6

A163103

CLIP

- fuse adapter

2шт.

7

A163038

BRACKET

- fuse block

1шт.

8

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch, grade 5

2шт.

9

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

10

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, grade 5

2шт.

11

A181300

DECAL

- fuse location, digital display (Illustrated), Start Serial: 17895425

1шт.

11

1975364C1

DECAL

- fuse location, digital display (Not illustrated), Serial Range: -17895425

1шт.

11

1975366C1

DECAL

- fuse location, analogue display (Not illustrated)

1шт.

11

A169143

DECAL - fuse location (French language) (Not illustrated), Start Serial: 17895425

1шт.

12

195-513

WASHER,#10

- flat 7/32 x 1/2 x 3/64 inch

3шт.

18

A185643

SENSOR

THERMOCOUPLE - exhaust (Replaces A162936), pyrometer

1шт.

19

A145931

BELLOWS

BOOT - thermocouple (Used with A162936), pyrometer

1шт.

20

R38237

STRAP

- nylon tie (Used with A162936), pyrometer thermocouple

1шт.
