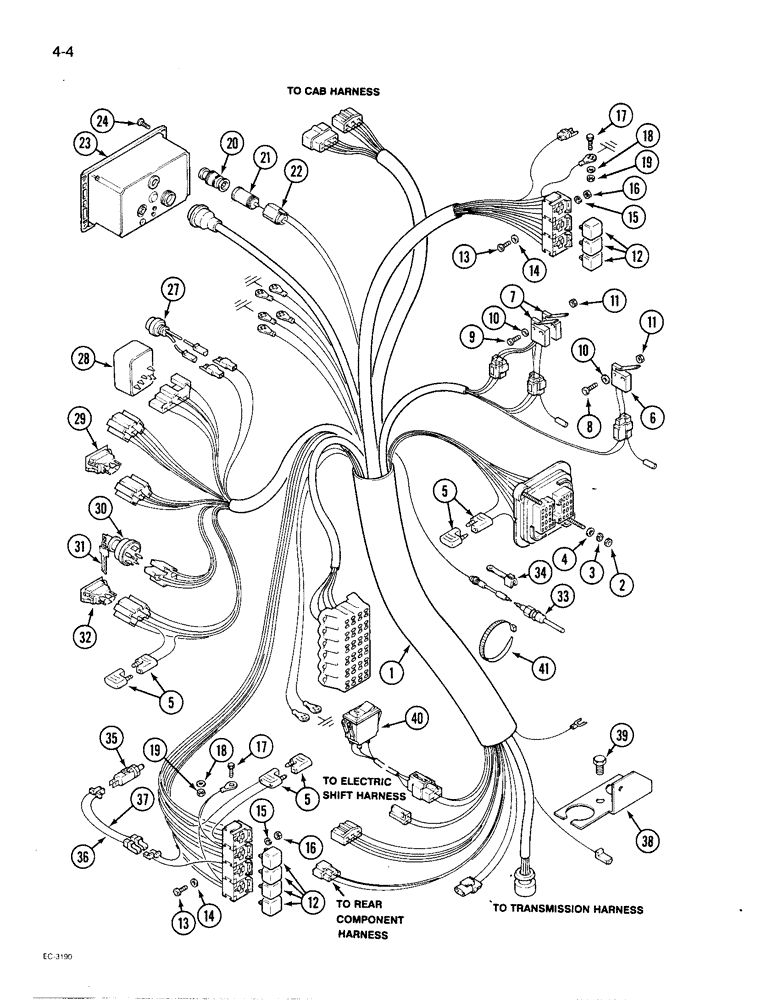

Запчасти Case IH 1896 (4-04) - INSTRUMENT HARNESS, DIGITAL DISPLAY (04) - ELECTRICAL SYSTEMS

1

1983317C1

HARNESS

HARNESS - instrument, digital display, Serial Range: -17895425

1шт.

1

A180989

HARNESS

HARNESS - instrument, digital display, Start Serial: 17895425

1шт.

2

425-104

NUT,1/4"-20, Cl 5

NUT - hex, 1/4 inch NC, grade 5

2шт.

3

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

4

195-102

WASHER,1/4"

WASHER - flat, 5/16 x 3/4 x 1/16 inch

2шт.

5

L71879

DIODE ELEMENT,400V, 3A

DIODE - alternator protecting

3шт.

6

A167041

SWITCH

SWITCH - micro, upper (Spot clutch)

1шт.

7

A166333

SWITCH

SWITCH - micro (S.P.D.T.)

2шт.

8

182-590

SCREW,Slotted Pan Hd, #6-32 x 3/4"

SCREW - slotted pan, No. 6 x 3/4 inch

2шт.

9

182-530

SCREW,Sl Pan Hd, #6 - 32 x 1 1/4"

SCREW - slotted pan, No. 6 x 1-1/4 inch

2шт.

10

495-31016

WASHER,#6

WASHER, #6

4шт.

11

86625057

NUT,#10-24, GB

NUT - hex, No. 6

4шт.

12

A147176

RELAY

RELAY - 30 amp

7шт.

13

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

SCREW - pan x-recess, No. 10-24 x 3/4 inch

4шт.

14

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

15

195-513

WASHER,#10

WASHER - flat, 7/32 x 1/2 x 3/64 inch

4шт.

16

225-14104

NUT,#4-40

NUT, #4-40

4шт.

17

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

BOLT - hex, 1/4 NC x 5/8 inch, grade 5

2шт.

18

195-102

WASHER,1/4"

WASHER - flat, 5/16 x 3/4 x 1/16 inch

2шт.

19

193-1006

NUT,Keps, w/LW, 1/4"-20

NUT - hex, 1/4 inch NC

2шт.

20

A177447

LIGHTER, CIGARETTE

ELEMENT - cigar lighter, push-in

1шт.

21

F63530

SOCKET/RECEPTACLE

SOCKET - cigar lighter

1шт.

22

F63738

CIGAR LIGHTER

SHELL - cigar lighter

1шт.

23

A187171

CLUSTER, INSTR.

CLUSTER, INSTRUMENT CLUSTER - digital instrument display (See Figure 4-24) (Replaces A169152)

1шт.

23

1935094C1

REMAN-INSTR CLUSTER

Reman-Instrument Cluster Remanufactured Instrument Panel

1шт.

23

1935093C1

CORE-CLUSTER, INSTR

Core-Instrument Cluster Return Number, Instrument Panel

1шт.

24

187-1333

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - tapping, pan x-recess, No. 10 x 3/4 inch

4шт.

27

A135520

SWITCH

SWITCH - cold start

1шт.

28

A77184

SWITCH

SWITCH - combination, turn signal and flasher (See Figure 4-28)

1шт.

29

A163009

SWITCH

SWITCH - lights

1шт.

30

A77312

SWITCH

SWITCH - ignition (Replaces L61053)

1шт.

31

A77313

SET OF 2 KEYS

KEY - ignition (Set of 2)

1шт.

32

A169345

SWITCH

SWITCH - shut-down override

1шт.

33

A185643

SENSOR

THERMOCOUPLE - exhaust pyrometer (See Figure 4-08)

1шт.

34

A169696

CLAMP

CLAMP - connector

1шт.

35

A163160

SWITCH

SWITCH - brake, differential lock

1шт.

36

A169823

ELECTRICAL WIRE

WIRE WIRE - differential lock switch

1шт.

37

A169863

ELECTRICAL WIRE

WIRE WIRE - ground, differential lock switch

1шт.

38

A177067

BRACKET

BRACKET - harness retaining

1шт.

39

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

BOLT - hex, 3/8 NC x 1-1/4 inch

1шт.

40

A176685

SWITCH

SWITCH - differential lock, with harness

1шт.

41

A169433

CABLE TIE,304.8mm L

STRAP, tie, nylon, 12 inch

1шт.
