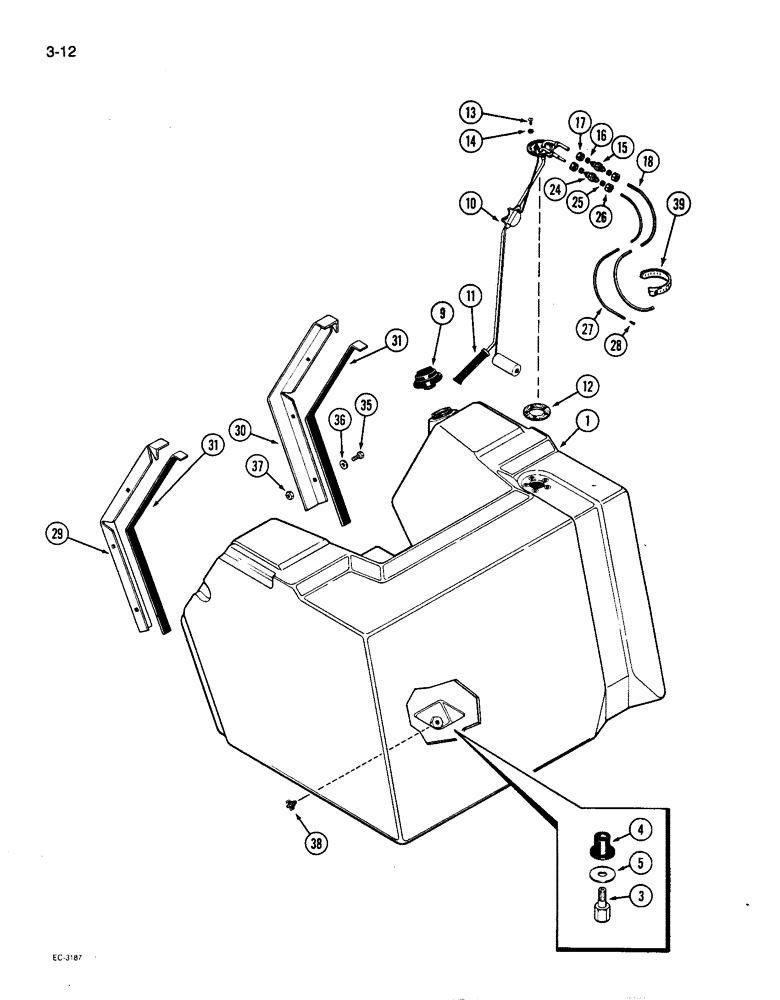

Запчасти Case IH 1896 (3-12) - FUEL TANK AND LINES, 6T-590 ENGINE (03) - FUEL SYSTEM

1

A167685

TANK

ASSEMBLY - fuel, Includes: Ref. 3 - 5

1шт.

3

A65890

STUD,3/8" - 16 x 1/4" NPT

- (drain valve)

1шт.

4

A143035

NUT,31.75mm OD x 26.97mm L

FASTENER - stud

1шт.

5

A65892

WASHER

- stud

1шт.

9

A185731

CAP

- fuel filler (Replaces A180111)

1шт.

A185781 (refer 9-4 #20) AND A180111 HAVE A RUBBER SEAL PART NO. B91607 WHICH IS NLA. THESE CAPS ARE ON DEALER LOCATER. BOTH NO.'S SUB ON TO 181043A1 CAP W/O SEAL.

1шт.

10

A161769

TRANSMITTER

UNIT - sending, fuel level, Includes: Ref. 11

1шт.

11

A47706

STRAINER ELEMENT

STRAINER - fuel

1шт.

12

A11822

GASKET

- sending unit

1шт.

13

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- pan head, N0. 10 x 1/2 inch

5шт.

14

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

5шт.

15

222-2651

HYD CONNECTOR,17/32"-24

UNION - 3/8 inch nylon tube x 3/8 inch steel tube, Includes: Ref. 16 and 17

1шт.

16

222-2611

SLEEVE

- 3/8 inch tube

2шт.

17

222-2601

NUT

NUT - hex, 17/32 - 24 inch thread

2шт.

18

A62320

TUBE

- nylon, 9/32 ID x 3/8 O.D. x 105 inch (Fuel supply)

1шт.

24

222-2650

HYD CONNECTOR,7/16"-24

UNION - 1/4 x 1/4 inch tube, Includes: Ref. 25 and 26

1шт.

25

222-2610

SLEEVE

- 1/4 inch tube

2шт.

26

222-2600

NUT

NUT - hex, 7/16-24 inch thread

2шт.

27

A60722

TUBE

- nylon, 3/16 ID x 1/4 O.D. x 104 inch (Fuel return)

1шт.

28

222-2446

INSERT,1/4" Tube

- nylon tube, 3/8 inch

1шт.

29

A139959

BRACKET

RETAINER - right, fuel tank

1шт.

30

A139961

BRACKET

RETAINER - left, fuel tank

1шт.

31

A139339

SEAL

- retainer

2шт.

35

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

6шт.

36

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

6шт.

37

131-133

NUT,Ret, 3/8"-16

6шт.

38

A23656

COCK, DRAIN

VALVE - drain, 1/4 inch NPT

1шт.

39

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
