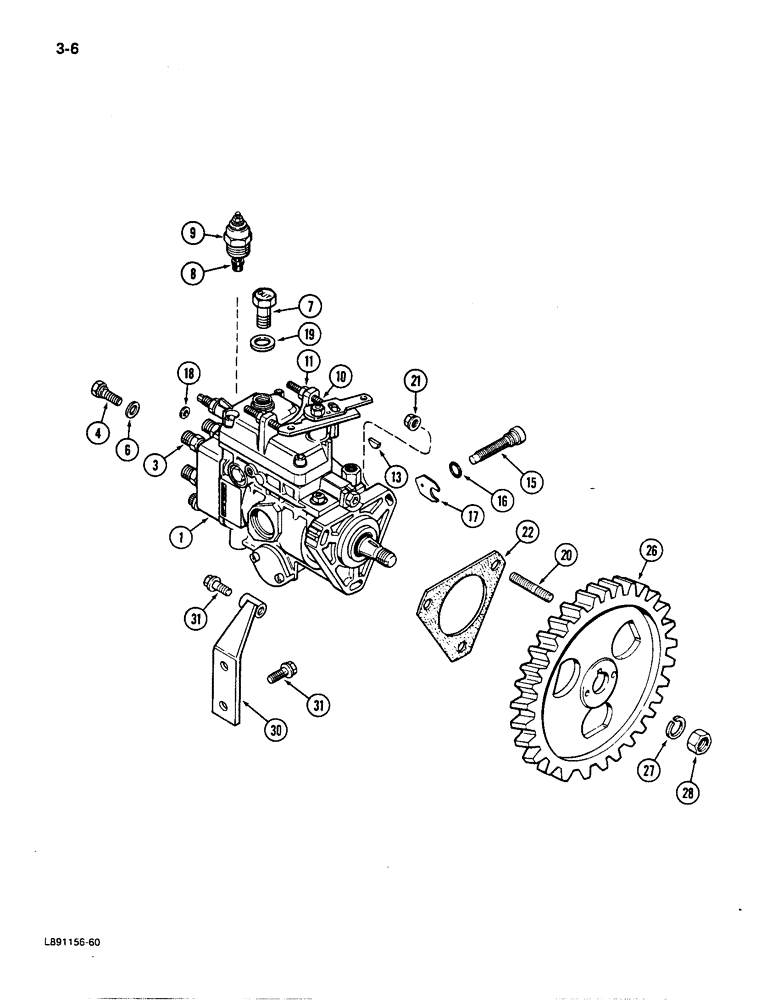

Запчасти Case IH 1896 (3-06) - FUEL INJECTION PUMP AND DRIVE, 6T-590 ENGINE (03) - FUEL SYSTEM

1

J913690

FUEL INJECTION PUMP

PUMP ASSEMBLY - fuel injection, new (Replaces J904535), Includes: Ref. 3 - 19

1шт.

JR913690

REMAN-INJECTION PUMP

PUMP ASSEMBLY - fuel injection, remanufactured (North America Only), Includes: Ref. 3 - 19

1шт.

JC913690

CORE-HYDRAULIC PUMP

RETURN NUMBER - use this part number to return pump core for credit, Includes: Ref. 3 - 19

1шт.

JR917540

REMAN-INJECTION PUMP

Remanufactured INJECTION PUMP - N.A. Only

1шт.

JC917540

CORE-INJECTION PUMP

Return No, INJECTION PUMP - N.A. Only

1шт.

3

J903571

ADAPTER

FITTING - delivery valve

6шт.

4

J903572

BLEED SCREW,M8 x 1 x 23.10mm

SCREW - vent

1шт.

6

J903573

GASKET

- vent screw

1шт.

7

J905465

BANJO BOLT

SCREW - overflow

1шт.

8

J903577

SEAL

- solenoid

1шт.

9

J903575

SOLENOID

ASSEMBLY - shut down, 12 volt

1шт.

10

J904782

SET SCREW,Sl, M6 x 40mm, Half Dog Pt

SCREW - low idle stop

1шт.

11

J904783

NUT

- idle screw

1шт.

13

J902332

KEY

- pump gear retainer

1шт.

15

J904784

SCREW,Hex Skt, M10 x 1 x 35mm

- timing lock

1шт.

16

J904785

O-RING,8 mm ID x 2.5 mm

- timing lock screw

1шт.

17

J904786

PLATE

- timing lock

1шт.

18

J903570

GASKET,5.4mm ID x 12mm OD x 1mm Thk

- delivery valve

6шт.

19

NSS

NOT SOLD SEPARAT

WASHER - overflow screw

1шт.

20

J902501

STUD

- pump mounting, 8 mm x 48 mm

3шт.

21

J900589

NUT

- hex flange, 8 mm

3шт.

22

J914389

GASKET

- pump mounting (Replaces J905685)

1шт.

26

J914912

GEAR

- pump drive (Replaces J911331)

1шт.

27

192-24

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

28

J903738

NUT

- hex, 14 mm

1шт.

30

J905313

LEVER

BRACE - fuel pump

1шт.

31

J900630

BOLT,Hex Flg, M8 x 20, 8.8, Full Thd

- hex flange, 8 mm x 20 mm

3шт.
