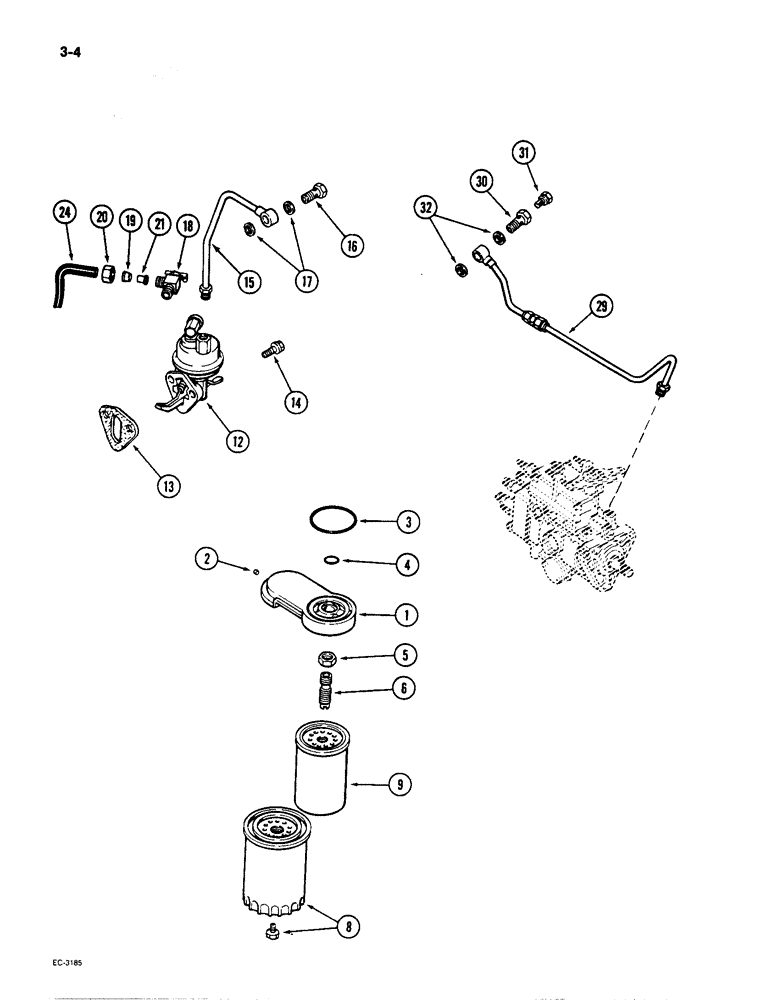

Запчасти Case IH 1896 (3-04) - FUEL FILTER AND LIFT PUMP, 6T-590 ENGINE (03) - FUEL SYSTEM

1

J904362

HEAD

ASSEMBLY - fuel filter, Includes: Ref. 2

1шт.

2

A77432

PLUG

- expansion, 0.26 mm O.D.

1шт.

3

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

O-RING - fuel filter head, 70 mm ID (Replaces J903546)

1шт.

4

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

O-RING - fuel filter stud, 14 mm ID (Replaces J903846)

1шт.

5

J903293

JAM NUT

- hex, 16 mm

1шт.

6

J903845

BANJO BOLT

ADAPTER - fuel

1шт.

A77470

SEPARATOR

FILTER KIT - fuel, Includes: Ref. 8 and 9

1шт.

8

NSS

NOT SOLD SEPARAT

FILTER - fuel, primary, 30 micron

1шт.

9

NSS

NOT SOLD SEPARAT

FILTER - fuel, secondary, 25 micron

1шт.

12

J904374

PUMP

ASSEMBLY - lift, fuel

1шт.

13

J914304

GASKET

- fuel lift pump (Replaces J904044)

1шт.

14

J900630

BOLT,Hex Flg, M8 x 20, 8.8, Full Thd

- hex flange, 8 mm x 20 mm

2шт.

15

J907582

FUEL TUBE,8 mm OD x 250.6 mm L

TUBE ASSEMBLY - fuel supply

1шт.

16

J903035

BANJO BOLT

BOLT - banjo hex, 12 mm x 24 mm

1шт.

17

J903037

PACKING RING

WASHER - sealing, 12 x 18 x 1 mm

2шт.

18

A181554

VALVE

- fuel shut-off, Includes: Ref. 19 and 20

1шт.

19

222-5186

SLEEVE,3/8" Tube

- 3/8 inch tube

1шт.

20

222-5181

NUT,9/16"-24

NUT - hex, 9/16 - 24 inch thread

1шт.

21

222-2446

INSERT,1/4" Tube

- 3/8 inch nylon tube

1шт.

24

REF

INSTRUCTION

TUBE - nylon, fuel supply (See Figure 3-12)

1шт.

29

J912783

FUEL TUBE,363.9, 84 mm L

TUBE ASSEMBLY - fuel supply (Replaces J908986)

1шт.

J905860

BANJO BOLT

BOLT - banjo hex, special, Includes: Ref. 30 and 31

1шт.

30

NSS

NOT SOLD SEPARAT

BOLT - connector, banjo hex special (Order J905860)

1шт.

31

NSS

NOT SOLD SEPARAT

SCREW - hex special, vent (Order J905860)

1шт.

32

J903037

PACKING RING

WASHER - sealing, 12 x 18 x 1 mm

2шт.
