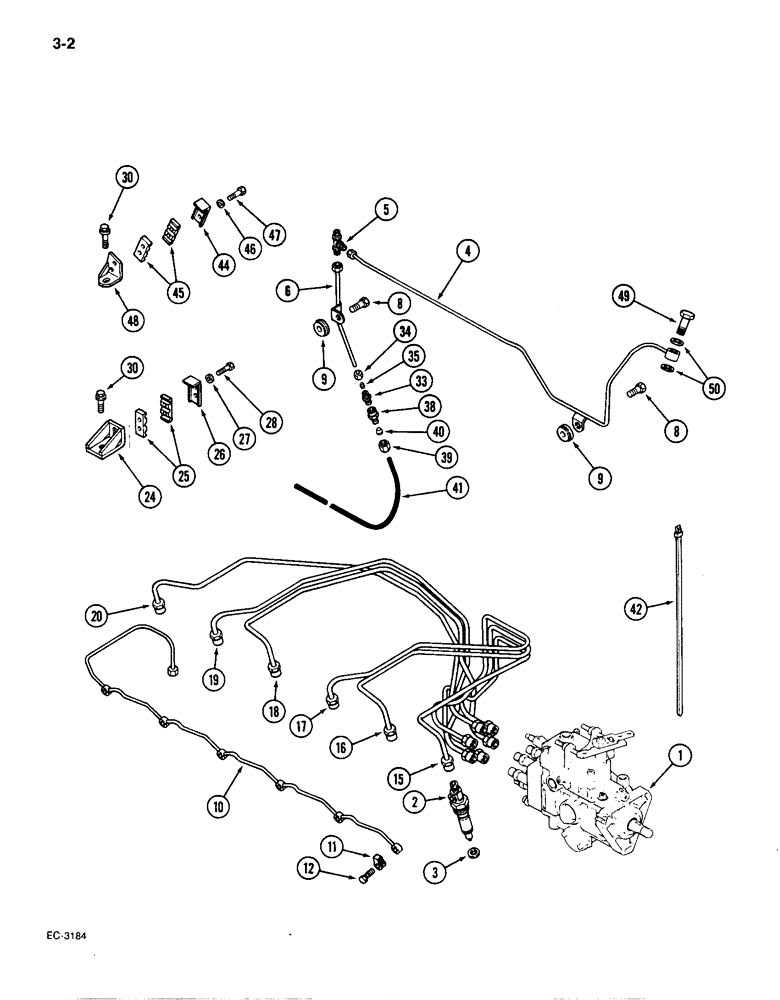

Запчасти Case IH 1896 (3-02) - FUEL INJECTION SYSTEM, 6T-590 ENGINE (03) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection (See Figure 3-06)

1шт.

2

REF

INSTRUCTION

INJECTOR ASSEMBLY - fuel (See Figure 3-8)

6шт.

3

J900808

SEAL

- injector

6шт.

4

J905705

FUEL TUBE,4.76 mm OD

TUBE ASSEMBLY - fuel drain

1шт.

5

222-121

TEE,3/16", Flex Tubing

3/16", Flex Tubing, Union (Remove and discard hex nuts and sleeves at assembly)

1шт.

6

J905692

FUEL TUBE

TUBE ASSEMBLY - fuel return, tee to fuel tank

1шт.

8

J900629

FLANGE BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT, Hex Flg, M8 x 16, 8.8, Full Thd

2шт.

9

J900267

SEAL

ASSEMBLY - cover bolt

2шт.

10

J909696

TUBE

TUBE ASSEMBLY - manifold, fuel drain

1шт.

11

J903380

SEAL

- connector

6шт.

12

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Drain, Special M6 x 1 x 14.3

6шт.

15

J909438

FUEL TUBE,2 mm ID x 6.4 mm OD x 746 mm L

TUBE ASSEMBLY - fuel injector, No.1 cylinder

1шт.

16

J903486

FUEL TUBE,2 mm ID x 6.4 mm OD x 747.5 mm L

TUBE ASSEMBLY - fuel injector, No.2 cylinder

1шт.

17

J903487

FUEL TUBE,2 mm ID x 6.4 mm OD x 741.8 mm L

TUBE ASSEMBLY - fuel injector, No.3 cylinder

1шт.

18

J903488

FUEL TUBE,2 mm ID x 6.4 mm OD x 747.3 mm L

TUBE ASSEMBLY - fuel injector, No.4 cylinder

1шт.

19

J903489

FUEL TUBE,2 mm ID x 6.4 mm OD x 748.1 mm L

TUBE ASSEMBLY - fuel injector, No.5 cylinder

1шт.

20

J903490

FUEL TUBE,2 mm ID x 6.4 mm OD x 745.3 mm L

TUBE ASSEMBLY - fuel injector, No.6 cylinder

1шт.

A77494

BRACKET

ASSEMBLY - fuel tube, Includes: Ref. 24 - 28

1шт.

24

NSS

NOT SOLD SEPARAT

BRACKET - fuel tube

1шт.

25

NSS

NOT SOLD SEPARAT

ISOLATOR - fuel tube

2шт.

26

NSS

NOT SOLD SEPARAT

PLATE - clamp

1шт.

27

NSS

NOT SOLD SEPARAT

WASHER - flat, 5 mm

2шт.

28

NSS

NOT SOLD SEPARAT

BOLT - hex

2шт.

30

J904341

BOLT,M6 x 1 x 35mm, Cl 8.8

- flange hex, bracket retaining

2шт.

33

222-601

FITTING,3/8"-24 x 1/8" NPT, Comp

CONNECTOR ASSEMBLY - straight, 3/16 inch tube x 1/8 inch NPTF, Includes: Ref. 34 and 35

1шт.

34

222-661

TUBE NUT,3/8"-24, 45 Degree Fl, Comp

Hex 3/8"-24, 45º Fl, Comp

1шт.

35

222-651

SLEEVE,3/16" Tube, Comp

1шт.

38

222-5130

FITTING,7/16"-24 x 1/8" NPT Fem

CONNECTOR ASSEMBLY - straight, 1/4 inch tube x 1/8 inch NPTF, Includes: Ref. 39 and 40

1шт.

39

222-5180

TUBE NUT,7/16"-24

- hex, 7/16"- 24

1шт.

40

222-5185

SLEEVE,1/4" Tube

- 1/4 " tube

1шт.

41

REF

INSTRUCTION

TUBE - nylon, fuel return (See Figure 3-12)

1шт.

42

R38237

STRAP

- retaining

1шт.

A77529

BRACKET

ASSEMBLY - fuel tube, Includes: Ref. 44 - 48

1шт.

44

NSS

NOT SOLD SEPARAT

BRACE - fuel tube retaining

1шт.

45

NSS

NOT SOLD SEPARAT

ISOLATOR - fuel tube

2шт.

46

NSS

NOT SOLD SEPARAT

WASHER - flat, 5 mm

2шт.

47

NSS

NOT SOLD SEPARAT

SCREW - hex, 5 mm x 20 mm

2шт.

48

NSS

NOT SOLD SEPARAT

BRACE - fuel tube

1шт.

49

NSS

NOT SOLD SEPARAT

BOLT - banjo connector (See Figure 3-6)

1шт.

50

NSS

NOT SOLD SEPARAT

WASHER - sealing (See Figure 3-6)

1шт.
