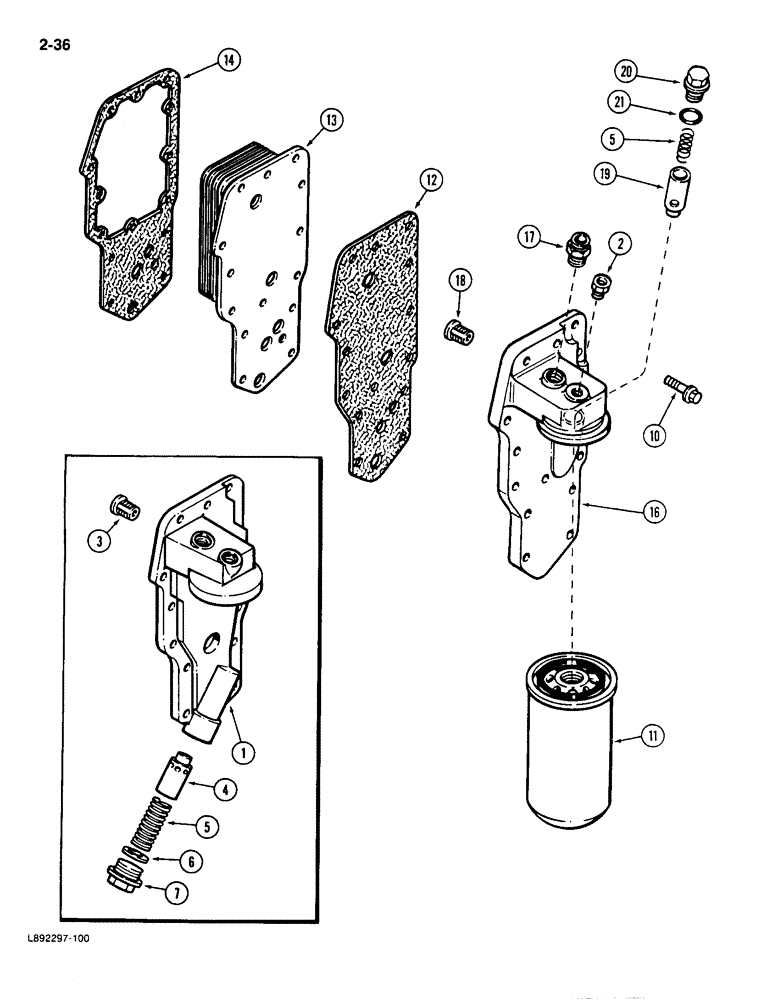

Запчасти Case IH 1896 (2-36) - OIL FILTER AND COOLER, 6T-590 ENGINE (02) - ENGINE

1

J902295

HEAD ASSY.

HEAD - filter, lubrication oil

1шт.

Used prior to Engine Serial number 44257900. For repairs order kit J915766.

1шт.

2

J906619

PLUG,1/8" - 27

- hex socket pipe, 1/8-27 PT (Replaces A77427)

1шт.

3

J902338

VALVE, PRESSURE RELI

VALVE - relief, pressure

1шт.

4

J909376

PLUNGER

- regulator, pressure

1шт.

5

J903261

SPRING

- compression

1шт.

6

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- seal, plug

1шт.

7

J904386

PLUG

- pipe, valve

1шт.

10

J900632

FLANGE BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

BOLT - hex flange head, 8 mm x 35 mm

14шт.

11

J908615

FILTER

- engine oil

1шт.

12

J912532

GASKET

- filter head (Replaces J912638)

1шт.

13

J911940

HEAT-EXCHANGER

CORE - cooler, oil

1шт.

14

J914387

GASKET

- cooler core (Replaces J904427)

1шт.

J915766

KIT

- oil cooler cover (Engine Serial Number 44257900 and after), Includes: Ref. 16 - 21 and head assembly, P/N J915243

1шт.

J915243

FILTER COVER

HEAD ASSEMBLY - with adapter, Includes: Ref. 16 and 17

1шт.

16

J909352

FILTER COVER

HEAD - filter, lube oil (Order J915243)

1шт.

17

J909355

ADAPTER

- filter head

1шт.

18

J902338

VALVE, PRESSURE RELI

VALVE - relief, pressure

1шт.

19

J914084

VALVE

PLUNGER - regulator, pressure

1шт.

20

J915787

PLUG

- pipe

1шт.

21

J909397

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- sealing

1шт.
