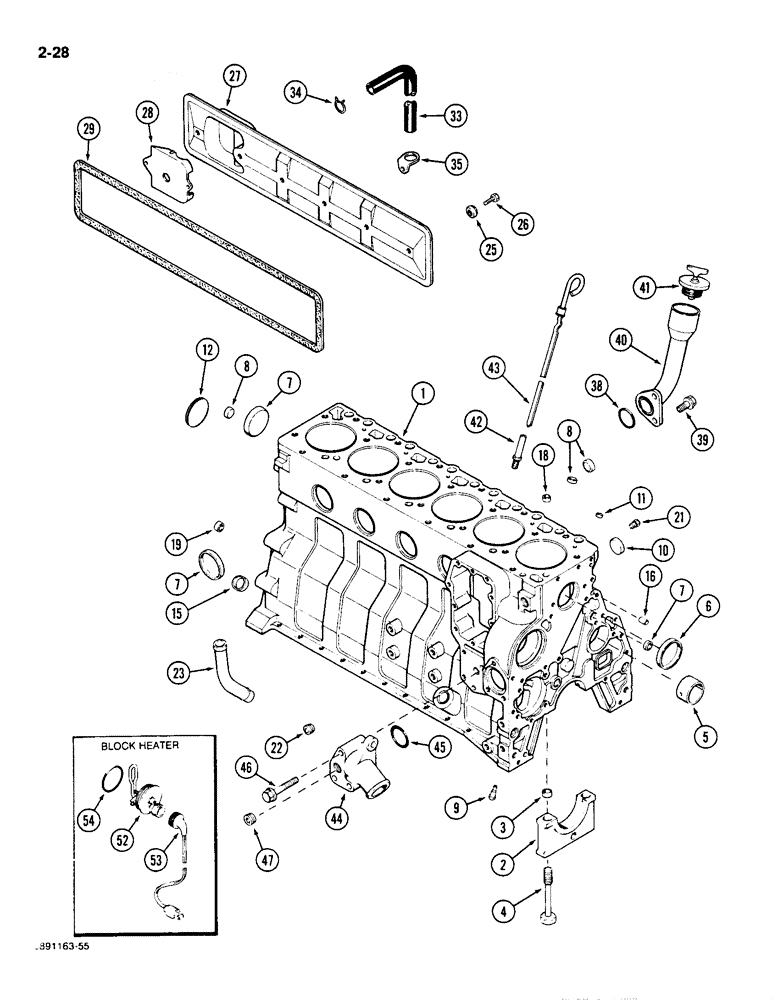

Запчасти Case IH 1896 (2-28) - CYLINDER BLOCK, 6T-590 ENGINE (02) - ENGINE

A174141

ENGINE ASSEMBLY

ENGINE ASSY ENGINE ASSEMBLY - complete (Includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe), Includes: Ref. 2 - 8

1шт.

J910510

SKELETON ENGINE

BLOCK ASSEMBLY - short,new (Includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings) (Also order J905813 kit), Includes: Ref. 2 - 8

1шт.

JR910510

ENGINE, EXCHANGE

Engine (Exchange) Block Assembly, Short, Remanufactured, Includes: Ref. 2 - 8

1шт.

JC910510

CORE-ENGINE

Return Part Number, Use This Part Number To Return Block Core For Credit, Includes: Ref. 2 - 8

1шт.

JR933182

REMAN-SHORT ENGINE

Remanufactured

1шт.

JC933182

CORE-SHORT ENGINE

Return Part Number

1шт.

1989096C2R

ENGINE, EXCHANGE

Engine (Exchange) Remanufactured

1шт.

1989096C2C

CORE-ENGINE

Return Part Number

1шт.

J933183

SKELETON ENGINE

Engine Short Block - Tier 0

1шт.

JR933183

REMAN-SHORT ENGINE

Remanufactured

1шт.

JC933183

CORE-SHORT ENGINE

Return Part Number

1шт.

1

J905810

CRANKCASE

BLOCK ASSEMBLY - stripped engine (Order block and J905813 kit), Includes: Ref. 2 - 8

1шт.

2

J900967

BEARING CAP

CAP - main bearing

7шт.

3

J900068

BEARING WASHER

RING - dowel, 18 mm O.D.

14шт.

4

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

BOLT - bearing cap, special

14шт.

5

REF

INSTRUCTION

BUSHING - front, camshaft (See Figure 2-24)

1шт.

6

J900965

PLUG

PLUG - expansion, 58 mm O.D.

6шт.

7

J900956

PLUG

PLUG - expansion, 18 mm O.D.

3шт.

8

A77539

PLUG

PLUG - expansion, 26 mm O.D.

4шт.

J905813

PACKAGE, REPAIR

KIT - block hardware

1шт.

9

J901020

NOZZLE CAP

NOZZLE - piston cooling

6шт.

10

J900958

PLUG

PLUG - expansion, 32 mm O.D.

1шт.

11

J900955

PLUG

PLUG - expansion, 10 mm O.D.

2шт.

12

J900687

PLUG

PLUG - expansion, 60 mm O.D. (Welch)

1шт.

15

A77439

PLUG

PLUG - expansion, 0.886 mm O.D.

1шт.

16

J900257

PIN,10.01mm OD x 16mm L

PIN - dowel, locating, 16 mm

2шт.

18

J902343

DOWEL

RING - dowel, 16 mm O.D.

2шт.

19

J900068

BEARING WASHER

RING - dowel, 18 mm O.D.

2шт.

21

J906619

PLUG,1/8" - 27

PLUG - hex socket pipe, 1/8-27 PT

2шт.

22

A77429

PLUG

PLUG - hex socket pipe, 1/4-18 PT

1шт.

23

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - turbocharger oil drain

1шт.

25

J900267

SEAL

SEAL ASSEMBLY - cover bolt

4шт.

26

J900629

FLANGE BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT, Hex Flg, M8 x 16, 8.8, Full Thd

4шт.

27

J904672

COVER

COVER - push rod

1шт.

28

J907586

BAFFLE

BAFFLE - tappet cover

1шт.

29

J904776

GASKET

GASKET - tappet cover

1шт.

33

A181259

HOSE,19.10 mm ID x 510.00 mm, SAE 30R6 or 30R7

Breather (Replaces J906593)

1шт.

34

J904230

CLAMP,25.4mm

CLAMP - spring hose

1шт.

35

J909670

CLIP

CLIP - retaining (Replaces A77531)

1шт.

38

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING - sealing, 40 mm ID

1шт.

39

J901249

FLANGE BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

BOLT - hex flange, 12 mm x 25 mm

2шт.

40

J905440

TUBE

TUBE - oil fill

1шт.

41

A77424

FILLER CAP

CAP ASSEMBLY - fill, oil

1шт.

42

J905425

TUBE,9.52 mm OD x 93 mm L

TUBE - dipstick, oil

1шт.

43

J905786

DIPSTICK

DIPSTICK ASSEMBLY - engine oil

1шт.

44

J903102

CONNECTION

CONNECTION - water inlet

1шт.

45

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing (Replaces J901467)

1шт.

46

J901757

FLANGE BOLT,Hex, M10 x 75mm, Cl 10.9

BOLT - hex flange head, 10 mm x 75 mm

3шт.

47

A77429

PLUG

PLUG - hex socket pipe, 1/4-18 PT

2шт.

A77634

KIT

HEATER KIT - engine block (Replaces A77489), Includes: Ref. 53 and 54

1шт.

52

NSS

NOT SOLD SEPARAT

ELEMENT - heater (Order A77634)

1шт.

53

J905113

CABLE

CABLE - engine block heater

1шт.

54

J910517

O-RING

O-RING - heater sealing

1шт.
