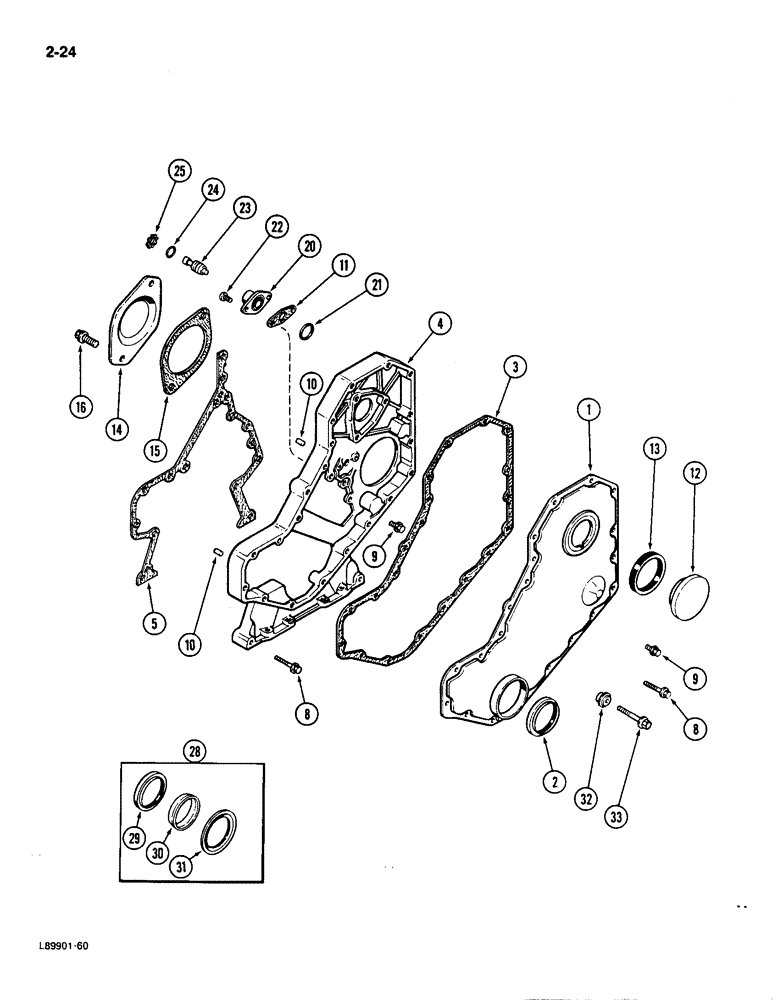

Запчасти Case IH 1896 (2-24) - FRONT GEAR COVER, 6T-590 ENGINE (02) - ENGINE

1

J903794

COVER

- gear, front (Replaces J903663)

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - oil, cover (Order Ref. 28)

1шт.

3

J914385

GASKET,1.02mm Thk

- front cover (Replaces J910500)

1шт.

4

J910411

HOUSING

- timing gear (Replaces J905731)

1шт.

5

J916131

GASKET

- gear housing (Replaces J907836)

1шт.

8

J900633

BOLT,Hex Flg, M8 x 50mm, Cl 8.8

- hex, 8 mm x 50 mm

11шт.

9

J900629

FLANGE BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT, Hex Flg, M8 x 16, 8.8, Full Thd

16шт.

10

J900257

PIN,10.01mm OD x 16mm L

- dowel, locating, 16 mm

2шт.

11

J905595

GASKET

- pin housing, (Used with J903923 housing)

1шт.

12

J903463

PLUG,M63 x 5

- tachometer drive hole

1шт.

13

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- cover

1шт.

14

J909918

PLATE

- cover, access (Replaces A77440)

1шт.

15

J913192

GASKET

- cover plate (Replaces A77441)

1шт.

16

J901249

FLANGE BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

BOLT - hex flange, 12 mm x 25 mm

2шт.

20

J905933

HOUSING

- timing pin

1шт.

21

J914092

O-RING

- pin housing (Replaces J903396)

1шт.

22

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

LOCK, Spc Rd Torx Hd, M5 x 17

2шт.

23

J903924

PIN,18.87mm OD x 55mm L

- timing

1шт.

24

J913994

O-RING

- sealing (Replaces J903927)

1шт.

25

J904849

SNAP RING,0.875", Int, #87

RING, SNAP, , timing pin 0.875", Int, #87

1шт.

28

J904353

GASKET KIT

SEAL KIT - oil, crankshaft front, Includes: Ref. 29 - 31

1шт.

29

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft front

1шт.

30

NSS

NOT SOLD SEPARAT

TOOL - seal installation

1шт.

31

NSS

NOT SOLD SEPARAT

TOOL - seal installation

1шт.

32

J912772

RETAINER

- bolt

1шт.

33

J901446

FLANGE BOLT,Hvy Hex, M8 x 60mm, Cl 8.8

BOLT - hex flange, 8 mm x 60 mm

1шт.
