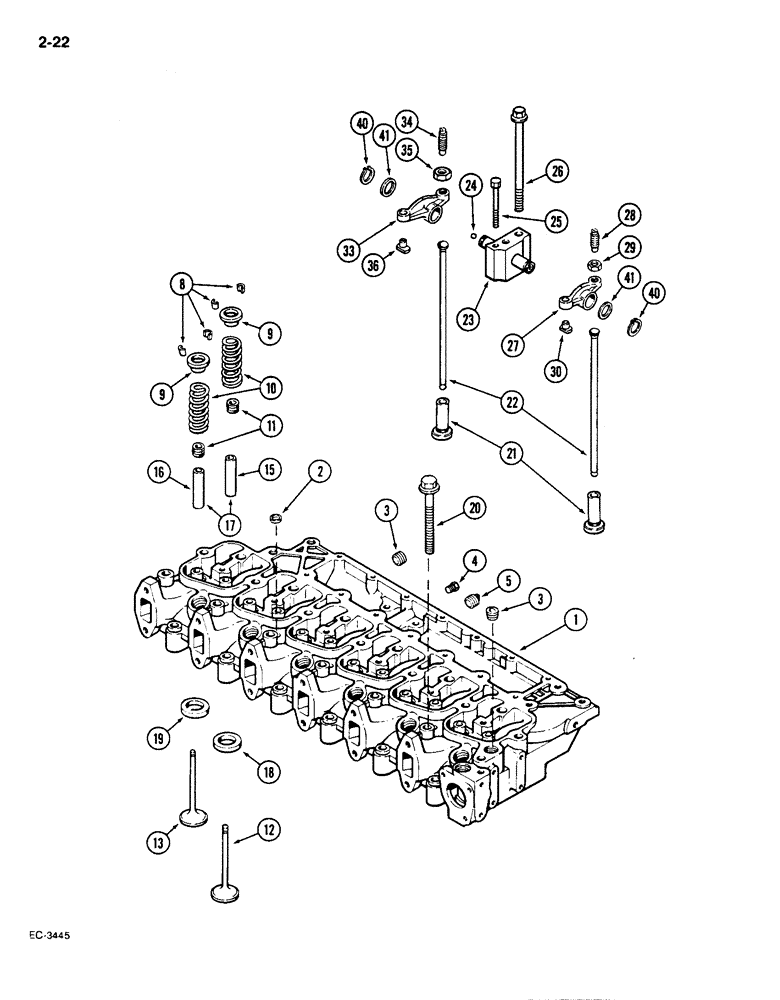

Запчасти Case IH 1896 (2-22) - CYLINDER HEAD AND VALVE MECHANISM, 6T-590 ENGINE (02) - ENGINE

JR910276

HEAD

Head Assembly, Cylinder, Remanufactured Includes: Ref. 1 - 13

1шт.

JC910276

CORE-CYLINDER HEAD

Return Part Number, Use This Part Number To Return Cylinder Head For Credit, Includes: Ref. 1 - 13

1шт.

J910276

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, new, Includes: Ref. 1 - 13

1шт.

1

J913391

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder (Replaces J909949), Includes: Ref. 2

1шт.

1

87430149

REMAN-CYLINDER HEAD

Cylinder Head

1шт.

1

87430150

CORE-CYLINDER HEAD

Return Part Number

1шт.

2

J902606

PLUG

PLUG - expansion, 21 mm O.D.

5шт.

3

A77429

PLUG

PLUG - hex socket pipe, 1/4-18 PT

5шт.

4

J906619

PLUG,1/8" - 27

PLUG - hex socket pipe, 1/8-27 PT

2шт.

5

A77505

PLUG

PLUG - hex socket pipe, 1/2-18 inch PT

1шт.

8

CASJ900250

RETAINER

KEEPER - valve

24шт.

9

J900299

RETAINER

RETAINER - valve spring

12шт.

10

J900276

VALVE SPRING

SPRING - valve

12шт.

11

J901097

SEAL

SEAL - valve

12шт.

12

J901117

VALVE

VALVE - intake

6шт.

13

J901607

VALVE

VALVE - exhaust

6шт.

15

J904408

GUIDE

GUIDE - valve, intake (Service repair only)

6шт.

16

J904409

GUIDE

GUIDE - valve, exhaust (Service repair only)

6шт.

17

J906206

GUIDE

GUIDE - valve, intake and exhaust 11 mm O.D. (Service repair only)

12шт.

18

J906854

SEAT, VALVE

SEAT - insert, intake valve (Service repair only)

6шт.

19

J904105

SEAT, VALVE

SEAT - insert, exhaust valve (Service repair only)

6шт.

20

J903938

BOLT

BOLT - hex flange head, 12 mm x 70 mm

6шт.

20

J903939

BOLT

BOLT - hex flange head, 12 mm x 120 mm

14шт.

21

J907240

TAPPET

TAPPET - valve, push rod

12шт.

22

J904679

PUSH ROD

ROD - push, rocker arm

12шт.

23

J910814

SUPPORT

SUPPORT AND SHAFT ASSEMBLY - rocker arm (Replaces J907048), Includes: Ref. 24

6шт.

24

J907555

PLUG

PLUG - rocker arm shaft, 1/4-18 PT

1шт.

25

813-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

BOLT - hex flange, 8 mm x 75 mm

6шт.

26

J903940

BOLT

BOLT - hex flange head, 12 mm x 180 mm

6шт.

27

J910811

ROCKER

ARM ASSEMBLY - rocker, intake (Replaces J900540), Includes: Ref. 28 - 30

6шт.

28

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW - slotted set adjusting, 3/8 inch NF x 40 mm

1шт.

29

129-123

NUT,3/8"-24, G5

NUT, 3/8"-24, G5

1шт.

30

NSS

NOT SOLD SEPARAT

INSERT - arm

1шт.

33

J910810

ROCKER

ARM ASSEMBLY - rocker, exhaust (Replaces J900539), Includes: Ref. 34 - 36

6шт.

34

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW - slotted set adjusting, 3/8 inch NF x 40 mm

1шт.

35

425-116

NUT,3/8" - 24, Gr 5

NUT, , Hex 3/8"-24, G5

1шт.

36

NSS

NOT SOLD SEPARAT

INSERT - arm

1шт.

40

J900242

SNAP RING

RING - retaining, rocker arm

12шт.

41

J900245

WASHER

WASHER - thrust, rocker arm

12шт.
