Артикул
Название
Примечание
Количество

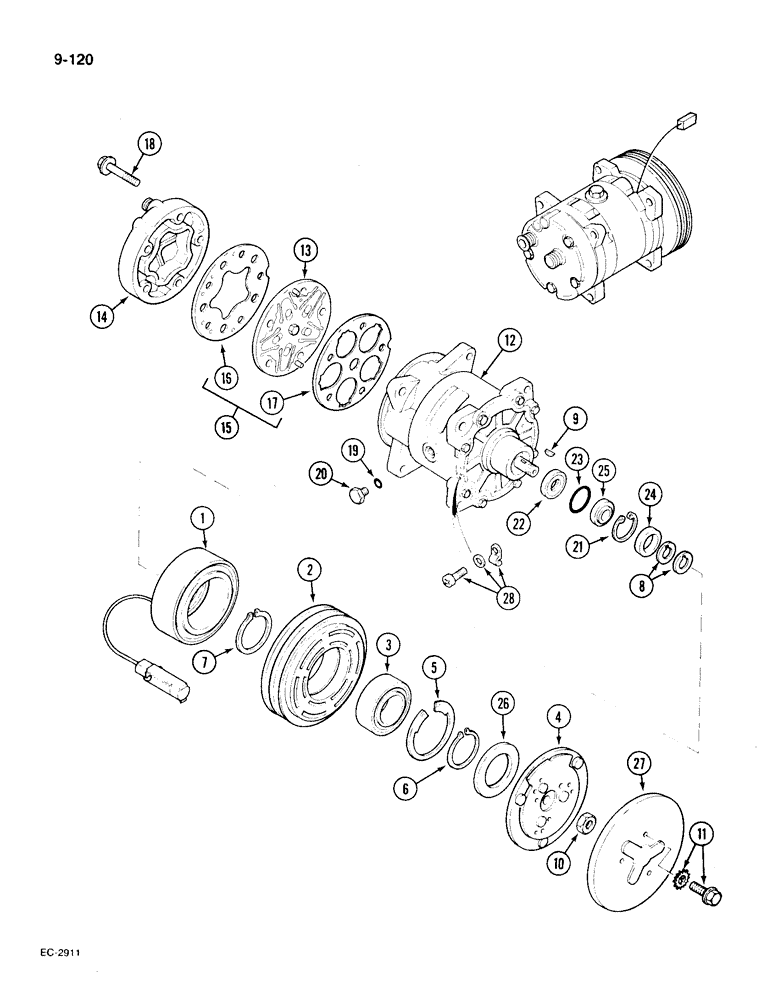

A177068
AIRCOND. COMPRESSOR
ASSEMBLY - air conditioning, Includes: Ref. 1 - 27
1шт.
A177068R
REMAN-A/C COMPRESSOR
1896 DIESEL S/N 17895000 THRU 002 & UP (1/84-12/86)
1шт.
A177068C
CORE-DISTRIB KIT-FUE
Return Number
1шт.
A49676
CLUTCH ASSEMBLY
- compressor, Includes: Ref. 1 - 11
1шт.
1
A49659
COIL ASSY.
COIL ASSEMBLY - field, 12 volt
1шт.
2
A49660
PULLEY ASSY.
PULLEY ASSEMBLY - drive, two groove, Includes: Ref. 3
1шт.
3
A49663
BALL BEARING,40 mm ID x 62 mm OD x 24 mm
BEARING - pulley
1шт.
4
A49677
PLATE
- front
1шт.
5
NSS
NOT SOLD SEPARAT
RING - snap
1шт.
A49673
KIT
- service, clutch, Includes: Ref. 6 - 11
1шт.
6
NSS
NOT SOLD SEPARAT
RING - snap, pulley
1шт.
7
NSS
NOT SOLD SEPARAT
RING - snap, clutch
1шт.
8
NSS
NOT SOLD SEPARAT
SHIM - clutch
1шт.
9
A49671
KEY
- shaft, compressor
1шт.
10
NSS
NOT SOLD SEPARAT
NUT - retainer
1шт.
11
NSS
NOT SOLD SEPARAT
SCREW - retainer, with lock washer
1шт.
A49672
COMPRESSOR
ASSEMBLY - field (Without clutch), Includes: Ref. 12 - 17
1шт.
12
NSS
NOT SOLD SEPARAT
BLOCK - compressor
1шт.
13
NSS
NOT SOLD SEPARAT
PLATE - valve (With gasket, Ref. No. 17)
1шт.
14
A49661
HEAD (CYLINDER)
HEAD - cylinder (With gasket, Ref. No. 16)
1шт.
15
A49668
GASKET KIT
KIT - service, gaskets
1шт.
16
NSS
NOT SOLD SEPARAT
GASKET - cylinder head
1шт.
17
NSS
NOT SOLD SEPARAT
GASKET - valve plate
1шт.
18
A49669
SCREW,Cylinder
BOLT - hex flanged head
5шт.
19
A49666
O-RING
- rubber
3шт.
20
A49667
PLUG
- oil filler
1шт.
A49665
SEAL KIT
KIT - service, compressor seals, Includes: Ref. 21 - 25
1шт.
21
A49664
CIRCLIP
RING - snap, seal seat
1шт.
22
NSS
NOT SOLD SEPARAT
SEAL - shaft
1шт.
23
NSS
NOT SOLD SEPARAT
O-RING - housing
1шт.
24
NSS
NOT SOLD SEPARAT
RING - felt
1шт.
25
NSS
NOT SOLD SEPARAT
SEAT - seal, shaft
1шт.
26
A49674
BEARING COVER,36 mm ID x 62 mm OD x 1.2, 4.2 mm
COVER - dust, bearing
1шт.
27
1981776C1
COVER
- dust, clutch
1шт.
A49670
PORT
- service (Not illustrated)
2шт.
Выбрано товаров: 35
