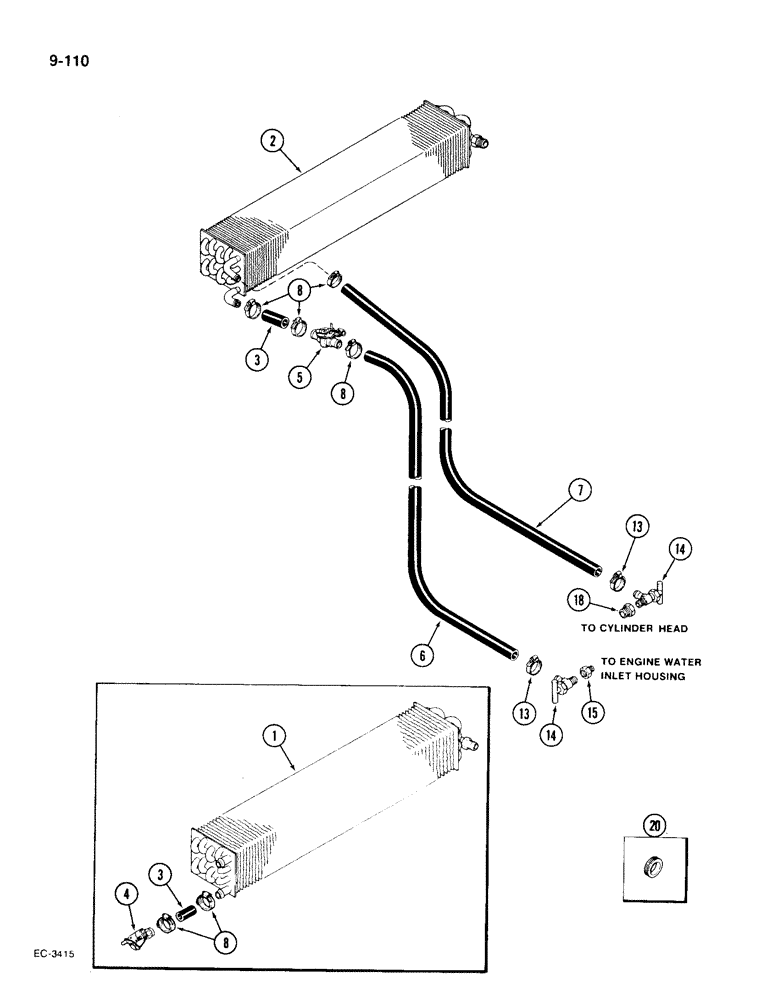

Запчасти Case IH 1896 (9-110) - CAB HEATER (09) - CHASSIS/ATTACHMENTS

1

NSS

NOT SOLD SEPARAT

CORE - heater and air conditioning (Part No. F64906) (Order Ref. 2 and 5)

1шт.

2

F66203

HEATER ASSY.

CORE - heater and air conditioning (With Ref. No. 5 replaces F64906)

1шт.

3

NSS

NOT SOLD SEPARAT

HOSE - core to valve, 2 inch (Cut from A42610)

1шт.

3

A42610

LARGE HOSE

HOSE - 1 inch O.D., bulk length, 50 feet

1шт.

4

F63865

VALVE

- flow control, heater (Use with Ref. No. 1), Start Serial: 12104351

1шт.

5

F66209

VALVE

- flow control, heater (Use with Ref. No. 2), Serial Range: -12104351

1шт.

6

NSS

NOT SOLD SEPARAT

HOSE - valve outlet, 134 inch (Cut from A42610)

1шт.

6

A42610

LARGE HOSE

HOSE - 1 inch O.D., bulk length, 50 feet

1шт.

7

NSS

NOT SOLD SEPARAT

HOSE - core inlet, 120 inch (Cut from A42610)

1шт.

7

A42610

LARGE HOSE

HOSE - 1 inch O.D., bulk length, 50 feet

1шт.

8

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose, No. 12, Type F

4шт.

13

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, No. 24

2шт.

14

A16764

VALVE

- water shut-off

2шт.

15

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING - reducer, 1/2 to 3/8 inch PT

1шт.

18

221-1092

REDUCER,Hex, 3/4" x 3/8" NPT

Bushing Hex, 3/4" x 3/8" NPT

1шт.

20

F64485

GROMMET

- hose

2шт.
