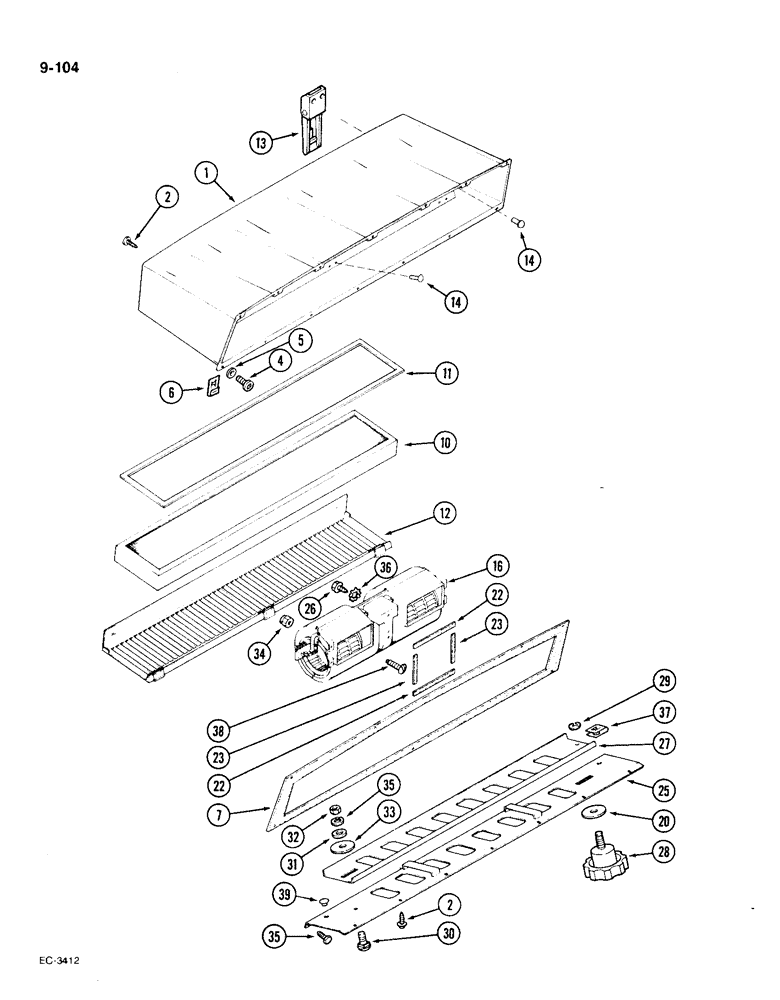

Запчасти Case IH 1896 (9-104) - AIR FILTER AND BLOWER HOUSING (09) - CHASSIS/ATTACHMENTS

1

F64721

HOUSING

- filter and blower

1шт.

2

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW - tapping, round x-recess, No.10-16 x 3/4 inch

7шт.

2

280-16516

SELF-TAP SCREW,Hex Wash Hd, #10 x 1"

SCREW - tapping, hex flange, No. 10-16 x 1 inch

8шт.

4

163-42

SCREW,Hex Wshr Hd, #10 - 24 x 1/2", Gr 5

- machine, hex washer, No. 10-24 x 1/2 inch

7шт.

5

195-404

SEALING WASHER

WASHER - sealing

7шт.

6

F64990

NUT

- J-type, No.10-24

7шт.

7

F64602

SEAL

SEAL -, Serial Range: housing-cab

1шт.

10

F64318

AIR FILTER

FILTER - air

1шт.

11

F63669

SEAL

- filter housing

1шт.

12

F98302

COVER

- filter

1шт.

13

F64066

LATCH

- filter cover

2шт.

14

151-543

RIVET,Pop, 3.17mm OD x 10.16mm L

- pop, 1/8 inch

10шт.

16

F96822

BLOWER ASSEMBLY - cab air (See Figure 9-106)

1шт.

20

F64866

WASHER - special, plastic

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL - blower, 6.5 inch (Cut from F64119)

4шт.

22

F64119

SEALING STRIP

SEAL - foam, bulk length, 100 ft (3048 cm)

1шт.

23

NSS

NOT SOLD SEPARAT

SEAL - blower, 3.8 inch (Cut from F64119)

4шт.

23

F64119

SEALING STRIP

SEAL - foam, bulk length, 100 ft (3048 cm)

1шт.

25

F64933

PLATE

- air recirculation

1шт.

26

280-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - tapping, hex washer, No.10-16 x 1/2 inch

1шт.

27

F64930

DOOR

- recirculation

1шт.

28

F64253

KNOB

- door

1шт.

29

T39518

SNAP RING,#25, Ext

Ring, Snap, #25, Ext

1шт.

30

111-265

BOLT

- round head, square neck, 5/16 NC x 3/4 inch

1шт.

31

495-81252

WASHER,#12

(Flat, 1/4" x 9/16" x 1/16") #12

2шт.

32

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex lock, 5/16 inch NC

1шт.

33

F64340

WASHER

- shoulder

1шт.

34

F45165

SPECIAL NUT,#10-24

NUT - hex lock, No. 10-24, teflon

4шт.

35

280-1658

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - tapping, hex flanged, No. 10 -16 x 1/2 inch

8шт.

36

93-11020

WASHER - lock, internal/external tooth, No. 10

1шт.

37

131-639

SPRING NUT,U, Rtnr, 5/16" - 18

- U-type, 5/16 inch NC

1шт.

38

187-1916

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

SCREW - tapping, pan x-recess, No.8-16 x 3/4 inch

1шт.

39

353-404

PLUG,Dome, .500" hole, Nylon

1шт.
