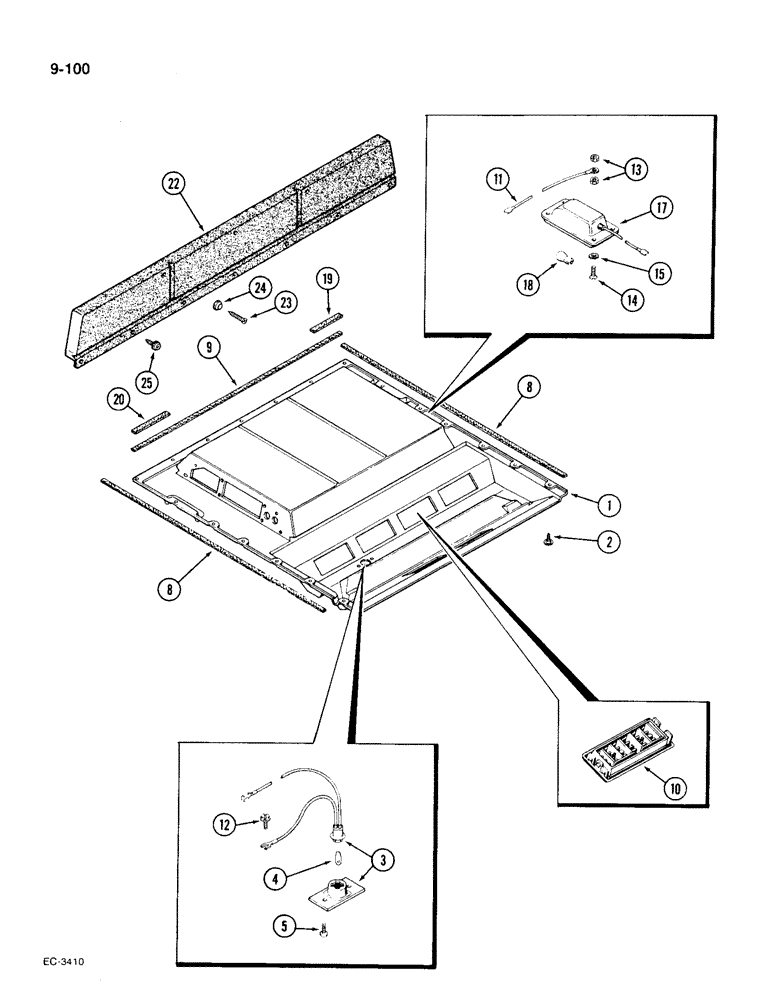

Запчасти Case IH 1896 (9-100) - CAB HEADLINER, LOUVERS AND SPEAKER GRILLES (09) - CHASSIS/ATTACHMENTS

1

F97370

HEADLINER - cab

1шт.

2

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW - tapping, round x-recess, No. 10-16 x 3/4 inch

12шт.

3

F98279

INTERIOR LIGHT

LAMP - courtesy, Includes: Ref. 4

1шт.

4

W10478

LAMP

BULB - lamp, No. 194

1шт.

5

265-16512

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - tapping, oval, x-recess, No. 10-16 x 1 inch

2шт.

8

NSS

NOT SOLD SEPARAT

SEAL - headliner side (Cut from F64119)

2шт.

8

F64119

SEALING STRIP

SEAL - foam, bulk lengtn, 100 ft (3048 cm)

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - headliner rear (Cut from F64119)

1шт.

9

F64119

SEALING STRIP

SEAL - foam, bulk length, 100 ft (3048 cm)

1шт.

10

L109555

GUARD

LOUVER - air deflection

6шт.

11

F64731

CABLE PULLING GRIP

WIRE - dome light switch

1шт.

12

280-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - tapping, hex washer, No.10-16 x 1/2 inch

1шт.

13

280-14108

NUT - hex, No. 8-32

4шт.

14

473-10810

SCREW,Slotted Flat Hd, #8-32 x 5/8"

- flat slotted, No. 8-32 x 5/8 inch

4шт.

15

93-41023

LOCK WASHER,Ext Tooth, #12

WASHER - lock, external tooth, No. 12

1шт.

17

R54198

COURTESY LIGHT

LAMP ASSEMBLY - dome, Includes: Ref. 18

1шт.

18

D71459

LAMP

BULB - 24V, No. 1591

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL - foam, 6 inch (Cut from D70611)

1шт.

19

D70611

RUBBER JOINT

SEAL - foam, bulk length, 50 ft. (15.2 m)

1шт.

20

NSS

NOT SOLD SEPARAT

SEAL - foam, 7 inch (Cut from D70611)

1шт.

20

D70611

RUBBER JOINT

SEAL - foam, bulk length, 50 ft. (15.2 m)

1шт.

A181672

KIT - grille, speaker, Includes: Ref. 22 - 25

1шт.

22

A180980

GRILLE

- speaker

1шт.

23

265-16524

SELF-TAP SCREW,Cross Oval Hd, #10 x 1 1/2"

SCREW - tapping, oval x-recess, No. 10-16 x 1-1/2 inch

3шт.

24

F64315

WASHER

- No. 10, special

3шт.

25

F54519

SCREW - retaining

7шт.
