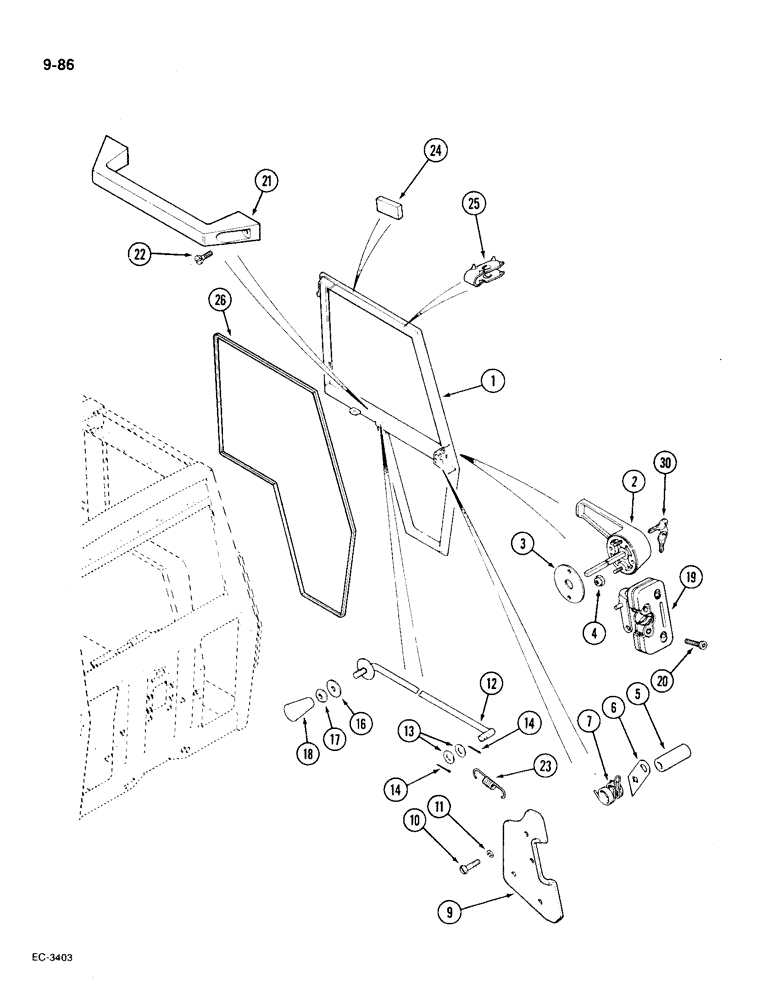

Запчасти Case IH 1896 (9-086) - CAB DOOR AND LATCH (09) - CHASSIS/ATTACHMENTS

F97066

DOOR

ASSEMBLY - complete (Includes glass) (See Figure 9-94), Includes: Ref. 1 - 26

1шт.

1

NSS

NOT SOLD SEPARAT

DOOR - cab (Order F97066)

1шт.

2

NSS

NOT SOLD SEPARAT

HANDLE - outer (Order F66157)

1шт.

3

F64342

GASKET,1.6mm Thk

- door handle

1шт.

4

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

2шт.

5

F64358

SPACER

- shaft, door latch)

1шт.

6

F64371

ARM

- door latch

1шт.

7

F64338

SPRING

- handle, door latch

1шт.

9

F66086

COVER ASSY

COVER - door latch

1шт.

10

140-111

SCREW,Cross Pan Hd, 1/4" - 20 x 1/2"

4шт.

11

193-11026

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - lock, external/internal tooth, 1/4 inch

4шт.

12

F98226

ROD

- pull, door latch

1шт.

13

F64384

WASHER

- nylon

3шт.

14

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

16

F64340

WASHER

- shoulder, nylon

1шт.

17

131-1280

JAM NUT,Jam, 1/4"-20

NUT - hex lock, 1/4 inch NC

1шт.

18

F64341

KNOB

- door latch rod

1шт.

19

F66155

LATCH

- rotary, door

1шт.

20

F45337

SCREW,1/4" - 20 x 1", Gr 5

- special, x-recess, 1/4 NC x 1 inch

4шт.

21

F64890

HANDLE

- door, inner

1шт.

22

182-582

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

- machine, pan x-recess, 1/4 NC x 3/4 inch

2шт.

23

F45162

SPRING

- extension

1шт.

24

R52615

PAD

- sponge rubber

1шт.

25

R52631

CLIP

- U-type

16шт.

26

R53628

SEAL

- weather, door frame

1шт.

30

A77313

SET OF 2 KEYS

KEY - door lock (Set of 2) (Also used for ignition)

1шт.
