Запчасти Case IH 1896 (9-080) - FOUR POST ROPS (09) - CHASSIS/ATTACHMENTS

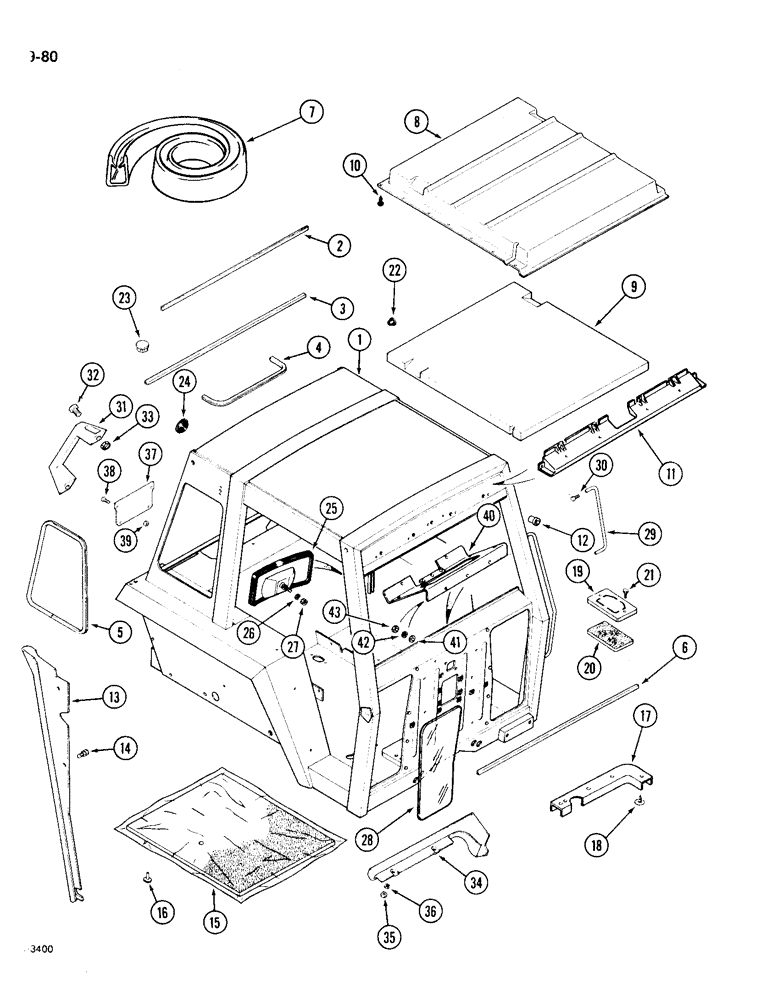

Схема запчастей Case IH 1896 - (9-080) - FOUR POST ROPS (09) - CHASSIS/ATTACHMENTS
19
22
38
21
40
42
6
31
20
41
11
16
27
4
1
7
30
2
12
35
26
15
37
28
5
24
39
33
43
36
23
14
18
17
3
13
34
8
29
9
25
10
32

Артикул

Название

Примечание

Количество

F98323

FRAME

ASSEMBLY - protective, Includes: Ref. 1 - 28

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - welded (Order F98323)

1шт.

2

NSS

NOT SOLD SEPARAT

TRIM - rear window, upper, 47 inch (Cut from F64227)

1шт.

3

NSS

NOT SOLD SEPARAT

TRIM - rear window, lower, 51.3 inch (Cut from F64227)

1шт.

4

NSS

NOT SOLD SEPARAT

TRIM - horizontal window, 32.9 inch (Cut from F64227)

1шт.

5

NSS

NOT SOLD SEPARAT

TRIM - side window, 81.3 inch (Cut from F64227)

1шт.

6

NSS

NOT SOLD SEPARAT

TRIM - front window, upper, 49.3 inch (Cut from F64227)

1шт.

7

F64227

TRIM - quickedge, bulk roll (50 feet)

1шт.

8

F64803

PADDING

HEADLINER - protective frame

1шт.

9

F64804

FOAM

- headliner

1шт.

10

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW - tapping, round x-recess, No. 10-16 x 3/4 inch

19шт.

11

F66024

SUPPORT

CHANNEL - lamp support, front (See Figure 9-84)

1шт.

12

F64712

BUSHING

- terminal (See Figure 9-84)

4шт.

13

F64614

COVER ASSY

COVER - harness

1шт.

14

R53048

CLIP

- xmas tree

2шт.

15

F66048

FLOOR MAT

MAT - floor, under

1шт.

16

F64518

RETAINER

- mat

11шт.

17

A176973

CHANNEL

- harness

1шт.

18

A176975

ANCHOR

FASTENER - xmas tree

4шт.

19

F64989

COVER ASSY

COVER - air/oil seat port

1шт.

20

F66075

SEAL

- cover

1шт.

21

113-66

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

22

F64502

CAP - plug

4шт.

23

353-422

PLUG,Dome, 1.250" hole, Nylon

Heyco Dome, 1.250" hole, Nylon

2шт.

24

353-586

PLUG - heyco snap, 1-1/2 inch

1шт.

25

A177462

MIRROR

ASSEMBLY - rear view, Includes: Ref. 26 and 27

1шт.

26

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

27

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, grade 5

1шт.

28

F63838

GLASS

- front lower (See Figure 9-94)

2шт.

29

A143834

HANDLE

- mounting

1шт.

30

121-123

BOLT,Hex Serr, 5/16" - 18 x 3/4"

2шт.

31

F64547

HANDLE

- rear fender

2шт.

32

140-116

SCREW,Cross Pan Hd, 1/4" - 20 x 1 1/4"

4шт.

33

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

4шт.

34

F64719

COVER

- harness

1шт.

35

129-119

NUT,1/4"-20, G5

2шт.

36

195-81009

WASHER,5/16" x 3/4" x .065"

- flat, 5/16 x 3/4 x 1/16 inch

2шт.

37

A149306

COVER

- water trap hole

1шт.

38

470-1108

SCREW,Slotted Pan Hd, #10-24 x 1/2"

- pan head, slotted, No. 10 x 1/2 inch

4шт.

39

192-1004

NUT - hex, Keps, No. 10

4шт.

40

F66067

PANEL

- column support

1шт.

41

495-21031

WASHER,1/4"

- flat, 17/64 x 3/5 x 1/16 inch

3шт.

42

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

43

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, grade 5

3шт.

Выбрано товаров: 44
