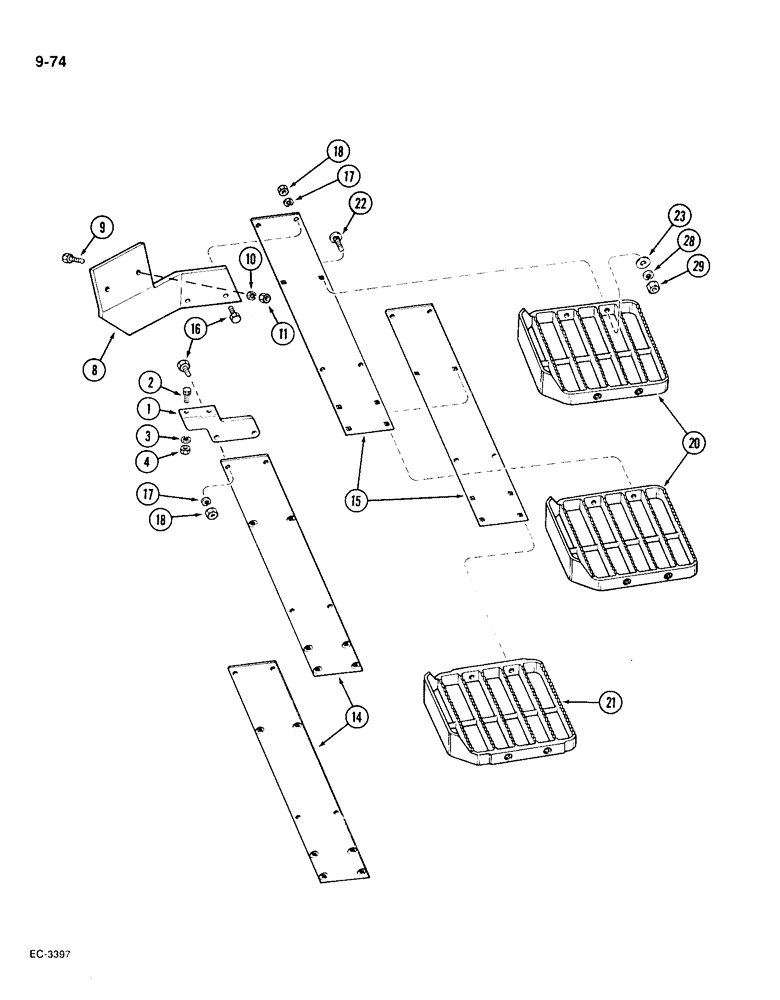

Запчасти Case IH 1896 (9-074) - STEPS, ALUMINIUM TYPE, PRIOR TO P.I.N. 17895800 (09) - CHASSIS/ATTACHMENTS

1

A177873

BRACKET

PLATE -adapter, step

1шт.

2

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch, grade 5

2шт.

3

492-11038

LOCK WASHER,3/8"

2шт.

4

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

8

A177544

BRACKET

- mounting, step

1шт.

9

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch, grade 5

2шт.

10

492-11038

LOCK WASHER,3/8"

2шт.

11

425-106

NUT,3/8"-16, Cl 5

2шт.

14

A185583

PLATE

- step side (Replaces A177259)

2шт.

15

A185583

PLATE

- step side (Replaces A177273)

2шт.

16

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

4шт.

17

492-11038

LOCK WASHER,3/8"

8шт.

18

425-106

NUT,3/8"-16, Cl 5

8шт.

20

A181776

STEP

- foot, aluminium

2шт.

21

A181777

STEP

- foot, aluminium

1шт.

22

118-141

PLOW BOLT,3/8"-16 x 1 1/2", G5

BOLT - plow, 3/8 NC x 1-1/2 inch

12шт.

23

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

12шт.

28

492-11038

LOCK WASHER,3/8"

12шт.

29

425-106

NUT,3/8"-16, Cl 5

12шт.
