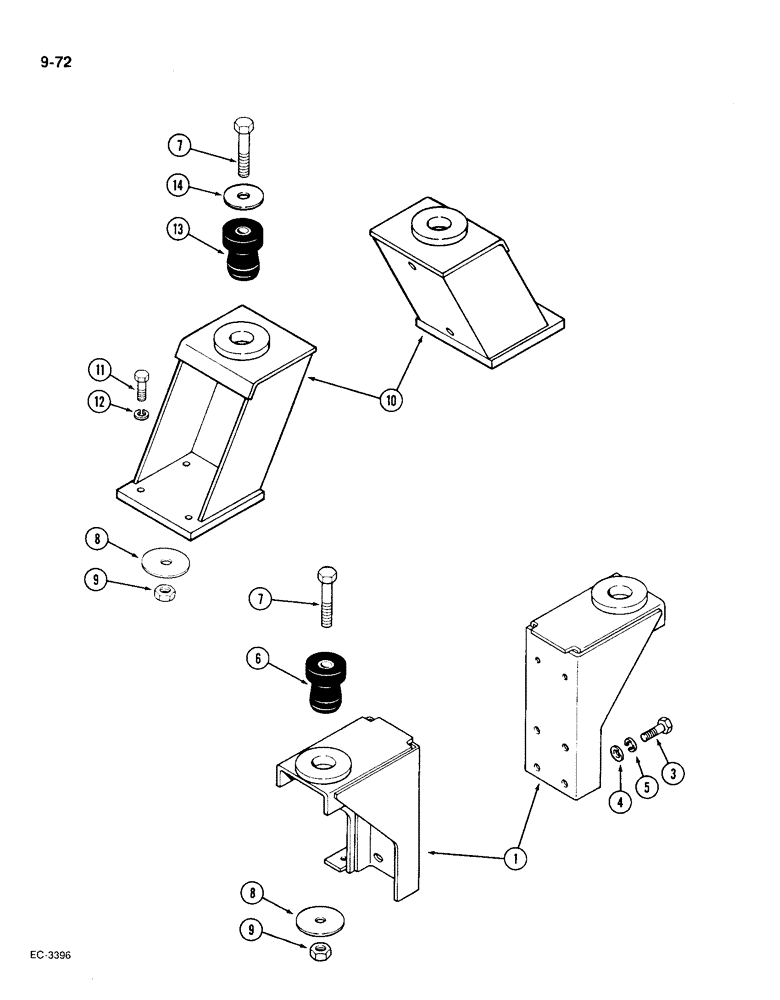

Запчасти Case IH 1896 (9-072) - FRONT AND REAR PLATFORM MOUNTS, PLATFORM, CAB OR FOUR POST ROPS FRAMES (09) - CHASSIS/ATTACHMENTS

1

A147255

BRACKET

- mounting

2шт.

3

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

8шт.

4

L30674

WASHER

- mounting

8шт.

5

92-11050

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

6

A141452

SHOCK ABSORBER

MOUNT - rubber, front (Colour code black)

2шт.

7

113-2648

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

- hex, 5/8 NC x 4-1/4 inch

4шт.

8

A141470

WASHER

- flat, special

4шт.

9

131-14

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

4шт.

10

A149667

MOUNTING PARTS

MOUNT - rear

2шт.

11

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

8шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

13

A141451

SHOCK ABSORBER

MOUNT - rubber, rear (Colour code red)

2шт.

14

495-21069

WASHER,5/8"

- plain, 5/8 inch

2шт.
